Coil Spring and Shock Absorber Module

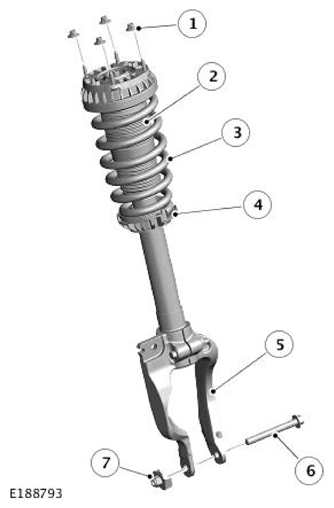

G11692383Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Nut (Shock absorber to vehicle body)
2 Gaiter
3 Coil spring
4 Spring seat
5 Shock absorber yoke
6 Bolt (Shock absorber yoke to rear lower arm)
7 Nut (Shock absorber yoke to rear lower arm)
