Air Spring and Shock Absorber Module

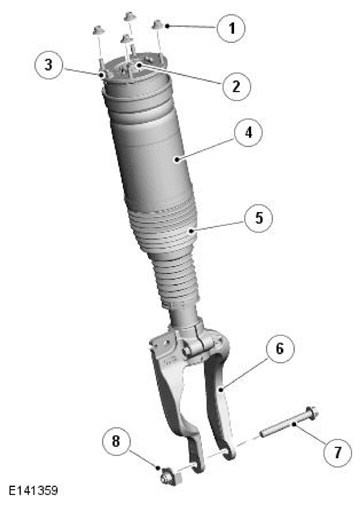

G11692382Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Item Description
1 Nut (Shock absorber to vehicle body)
2 Nut (Shock absorber rod)
3 Air connector
4 Air spring and Shock absorber assembly
5 Gaiter
6 Shock absorber yoke
7 Bolt (Shock absorber yoke to rear lower arm)
8 Nut (Shock absorber yoke to rear lower arm)
