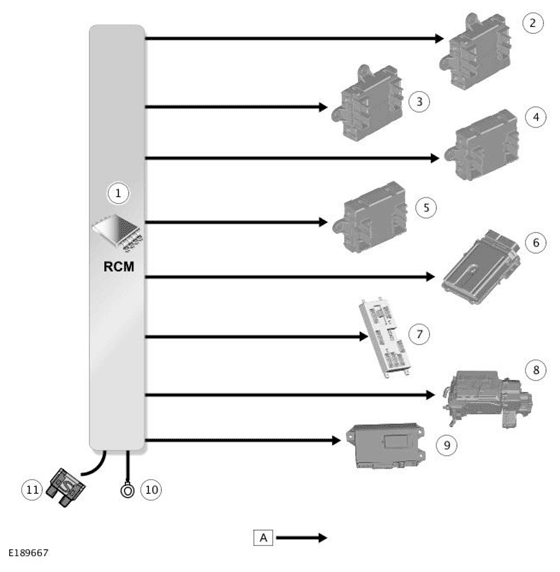

Control Diagram - 2 of 2
A = Hardwired.
| Item | Description |
|---|---|
| 1 | Restraints Control Module (RCM) |
| 2 | Driver Door Module (DDM) |
| 3 | Passenger Door Module (PDM) |
| 4 | Rear Door Module (RDM) - right |
| 5 | Rear Door Module (RDM) - left |
| 6 | Powertrain Control Module (PCM) |
| 7 | Body Control Module/Gateway Module (BCM/GWM) assembly |
| 8 | Battery Energy Control Module (BECM) - if equipped |
| 9 | Telematics Control Module (TCU) |
| 10 | Ground |
| 11 | Power supply |
