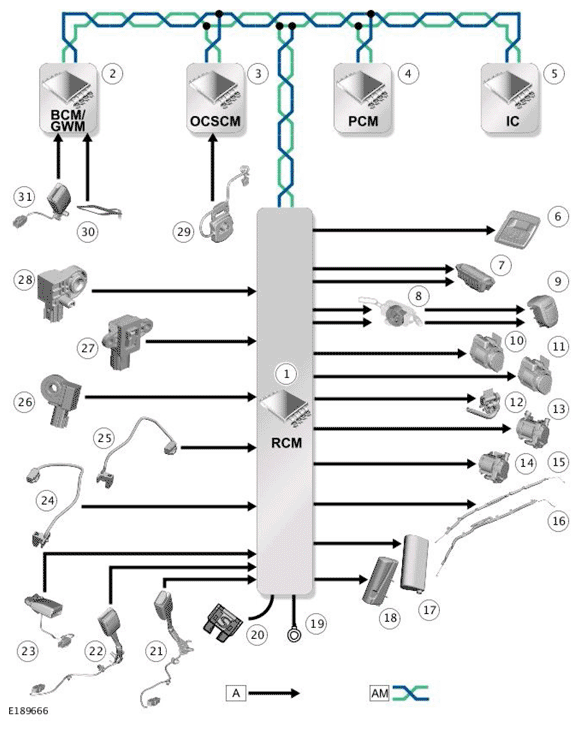

Control Diagram - 1 of 2

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Hardwired; AM = High Speed (HS) Controller Area Network (CAN) chassis systems bus.

Item	Description
1	Restraints Control Module (RCM)
2	Body Control Module/Gateway Module (BCM/GWM) assembly
3	Occupant Classification Sensor Control Module (OCSCM) - NAS vehicles only
4	Powertrain Control Module (PCM)
5	Instrument Cluster (IC)
6	Passenger Airbag Deactivation (PAD) indicator - overhead console
7	Passenger airbag
8	Clockspring
9	Driver airbag
10	Third row seatbelt retractor and pretensioner - 2 of (if equipped)
11	Rear seatbelt retractor and pretensioner - 2 of
12	Driver seatbelt pretensioner - if equipped
13	Passenger retractor and pretensioner (NAS non-active seatbelt version shown)
14	Driver retractor and pretensioner (non-active seatbelt version shown)
15	Side air curtain - right
16	Side air curtain - left
17	Side airbag - driver
18	Side airbag - passenger
19	Ground
20	Power supply
21	Front seatbelt buckle switch - 2 of
22	Rear seatbelt buckle switch - 2 of
23	Center rear seatbelt buckle switch
24	Driver seat position sensor
25	Passenger seat position sensor - NAS vehicles only
26	Front impact sensor - 2 of
27	Impact pressure sensor - 2 of
28	Side impact sensor - 2 of
29	Seatbelt tension sensor - if equipped
30	Occupant detection sensor - if equipped
31	Third row seatbelt buckle switch - 2 of (if equipped)
