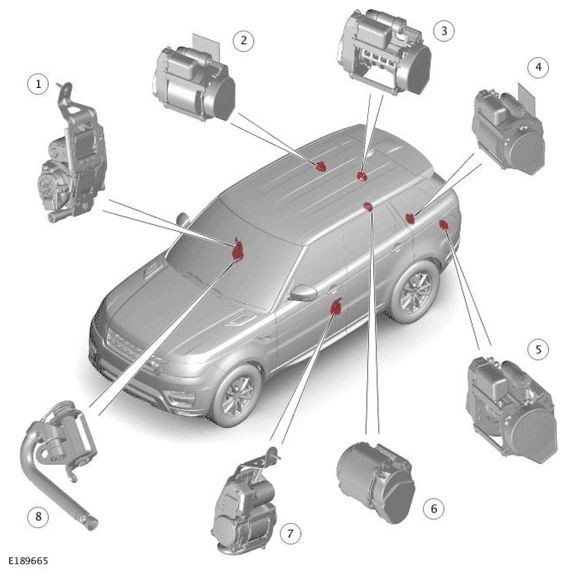

Component Location - 3 Of 3
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
| Item | Description |
|---|---|
| 1 | Driver seatbelt retractor and pretensioner |
| 2 | Rear right seatbelt retractor and pretensioner |
| 3 | Right seatbelt retractor and pretensioner - third row (if equipped) |
| 4 | Left seatbelt retractor and pretensioner - third row (if equipped) |
| 5 | Rear left seatbelt retractor and pretensioner |
| 6 | Rear center seatbelt retractor |
| 7 | Passenger seatbelt retractor and pretensioner |
| 8 | Driver seatbelt pretensioner |
