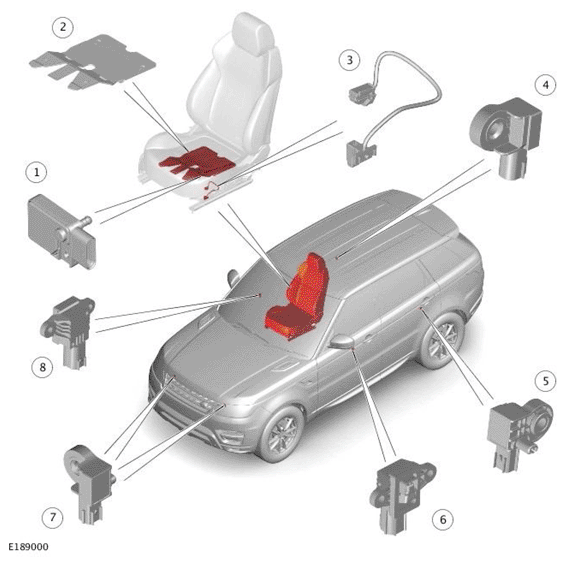

| 1 |
Occupant Classification Sensor Control Module (OCSCM) - NAS vehicles only |
| 2 |
Pressure pad - NAS vehicles only |
| 3 |
Seat position sensor |
| 4 |
Right side impact sensor |
| 5 |
Left side impact sensor |
| 6 |
Left impact pressure sensor |
| 7 |
Front impact sensors - 2 of |
| 8 |
Right impact pressure sensor |
