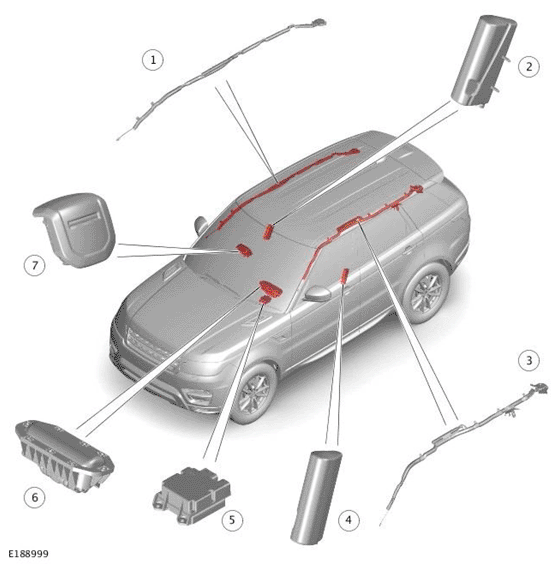

Component Location - 1 Of 3
NOTE:
Right Hand Drive (RHD) variant shown, Left Hand Drive (LHD) variant is similar.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| Item |
Description |
| 1 |
Side air curtain - right |
| 2 |
Side airbag - driver |
| 3 |
Side air curtain - left |
| 4 |
Side airbag - passenger |
| 5 |
Restraints Control Module (RCM) |
| 6 |
Passenger airbag |
| 7 |
Driver airbag |
