Deployable towbar system (5-seat vehicles)

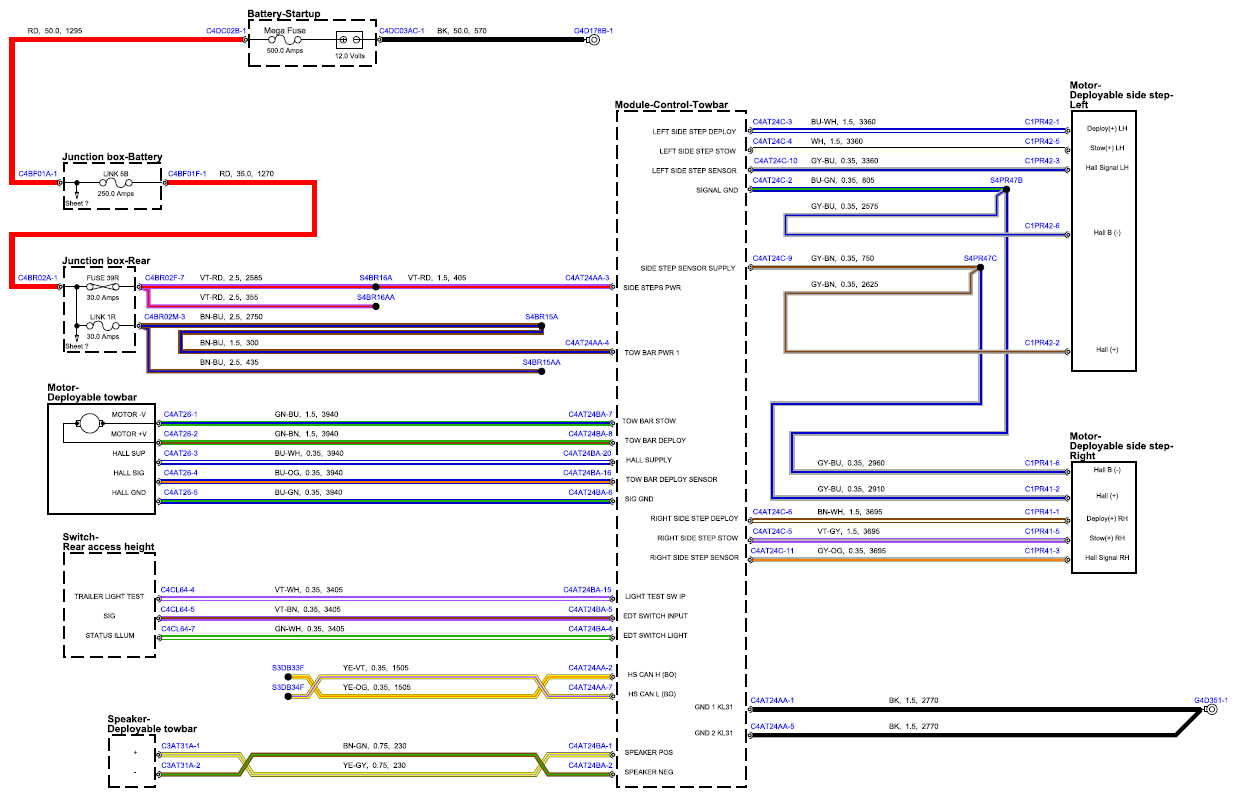

Fig 1: Deployable Towbar System (5-Seat Vehicles) Circuit Diagram (Sheet 1)
G15554698Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

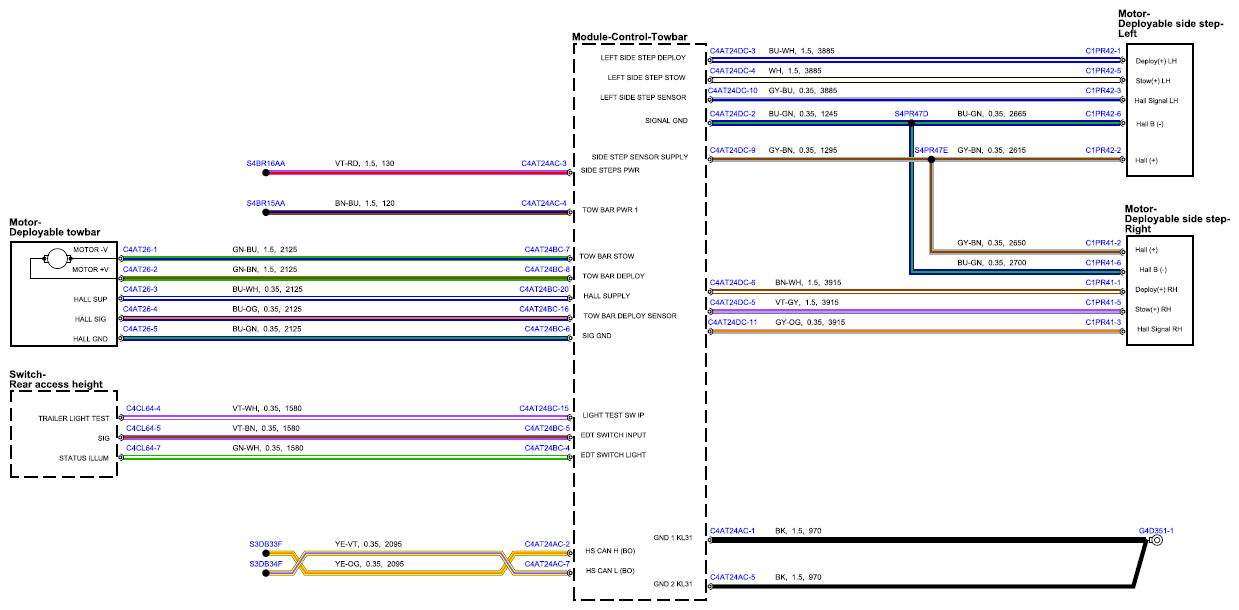

Fig 2: Deployable Towbar System (5-Seat Vehicles) Circuit Diagram (Sheet 2)
G15554699Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
