501-20B Supplemental Restraint System Wiring Diagrams: Notes

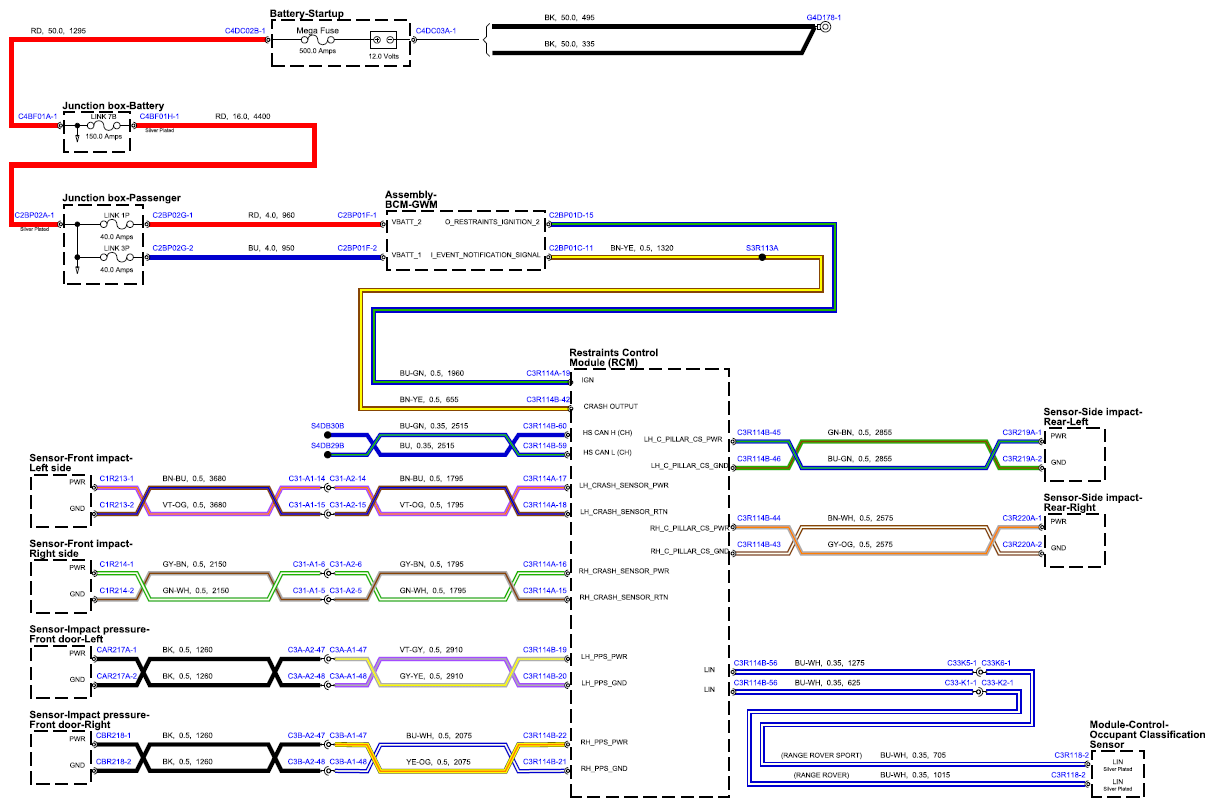

Fig 1: Supplemental Restraint System Circuit Diagram (Sheet 1)
G15554695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

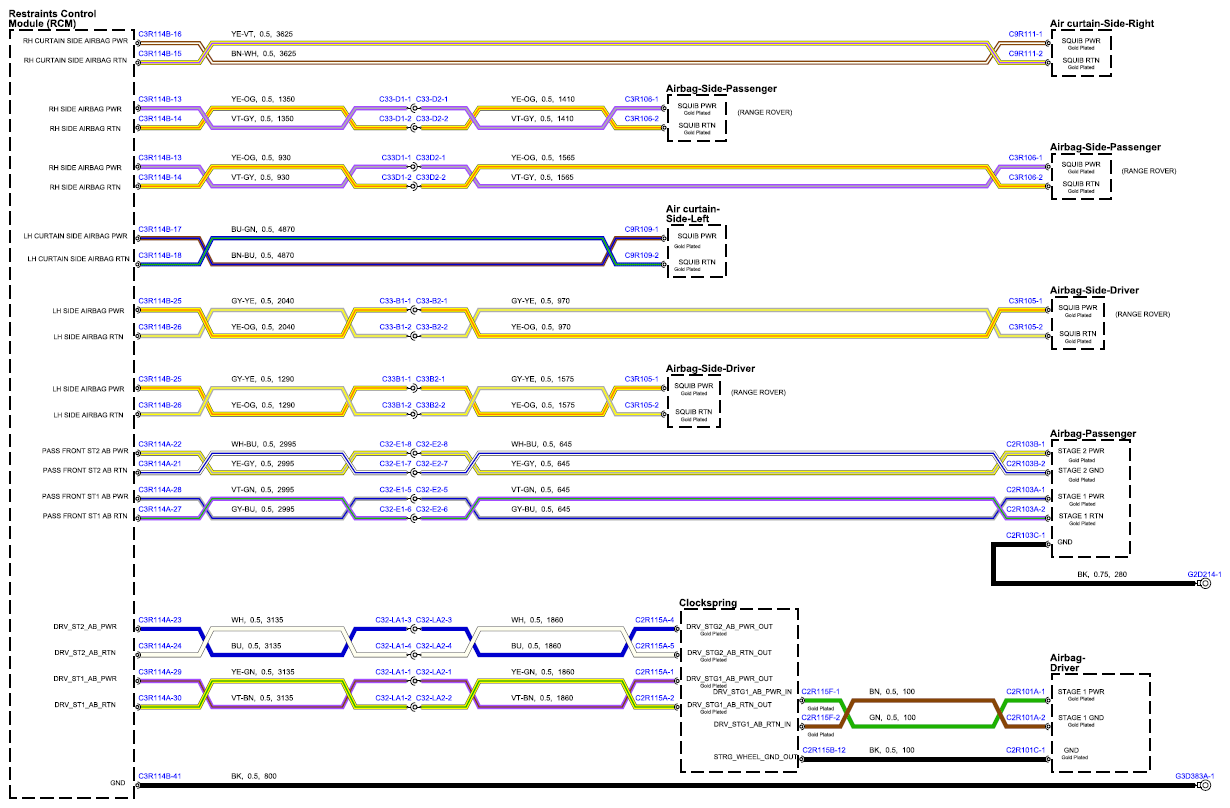

Fig 2: Supplemental Restraint System Circuit Diagram (Sheet 2)
G15554696Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
