501-20A SEATBELT System Wiring Diagrams: Retractors

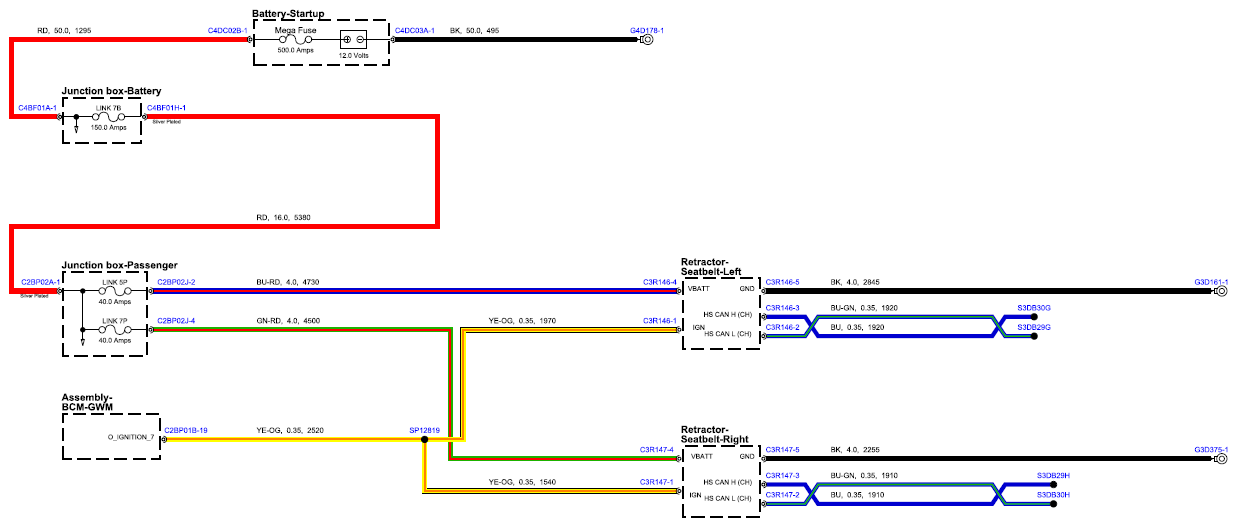

Fig 1: Retractors Circuit Diagram

G15554694

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
