501-16 Wipers And Washers Wiring Diagrams: Notes

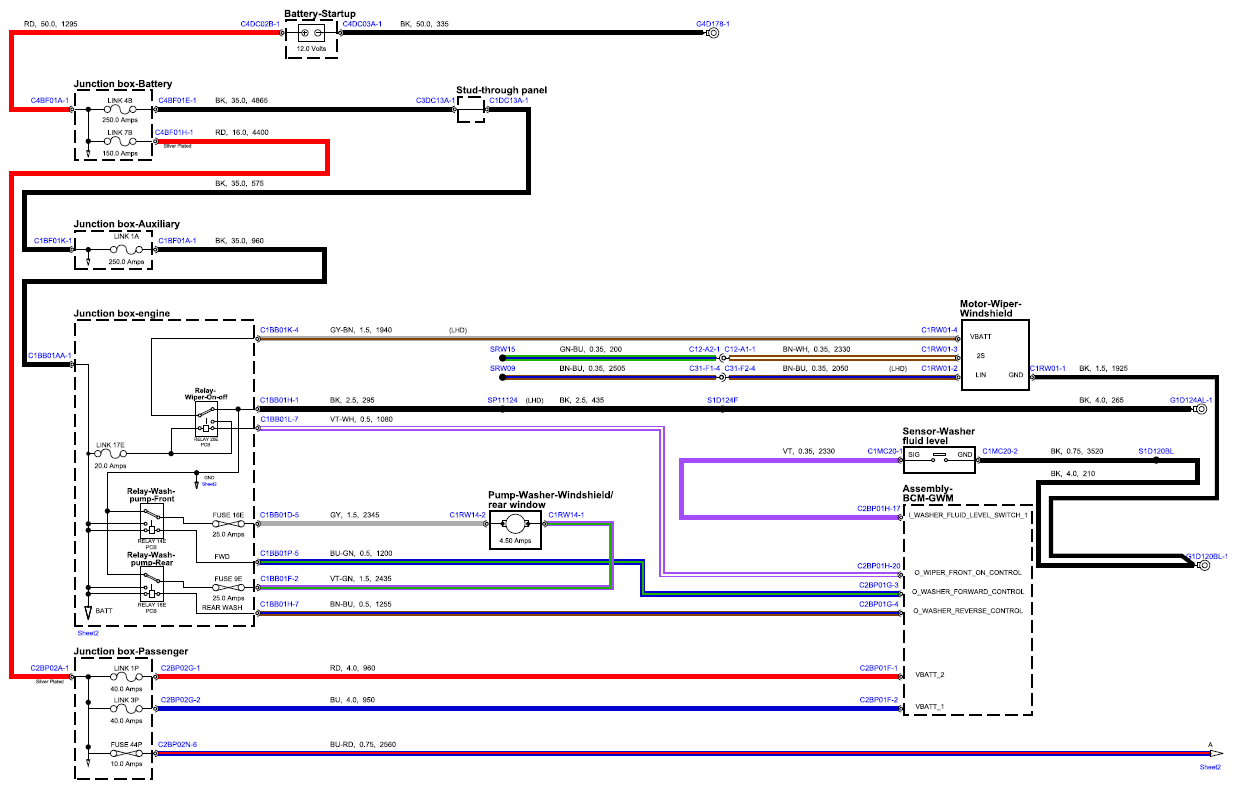

Fig 1: Wipers And Washers Circuit Diagram (Sheet 1)
G15554685Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

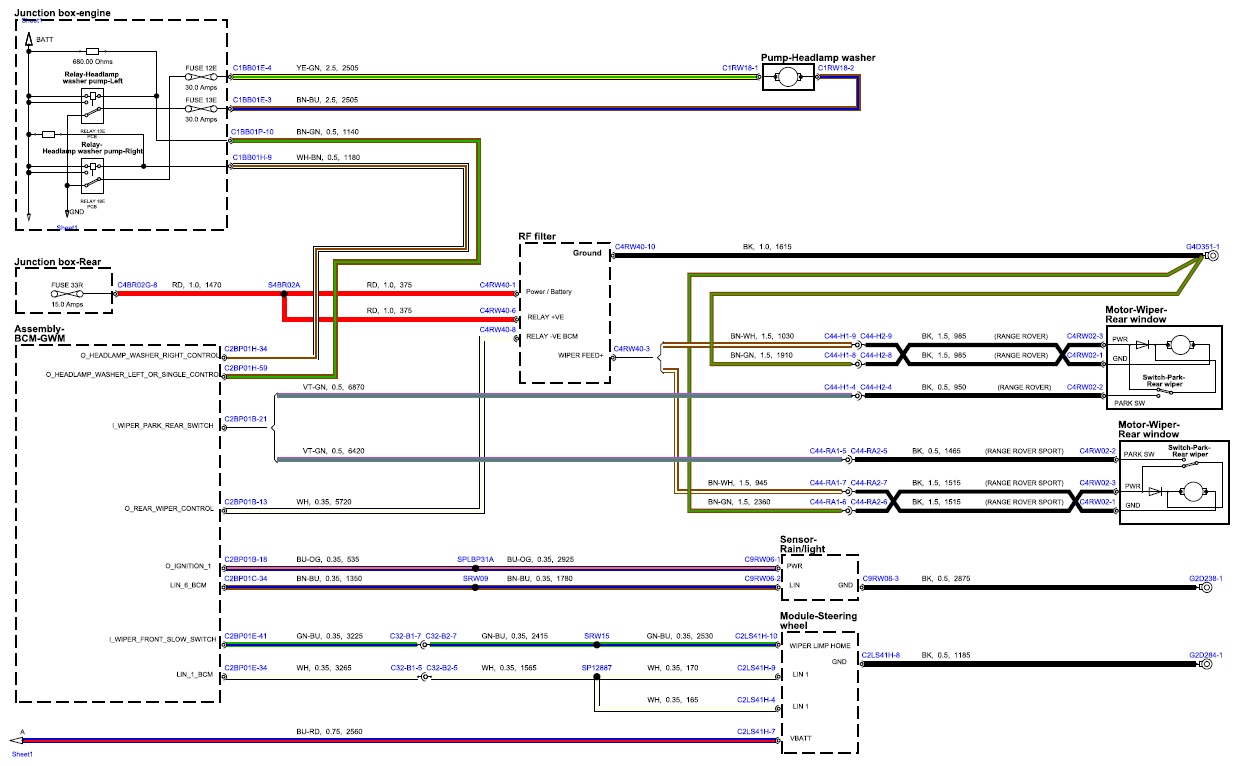

Fig 2: Wipers And Washers Circuit Diagram (Sheet 2)
G15554686Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
