Tailgate - Powered (Range Rover Sport)

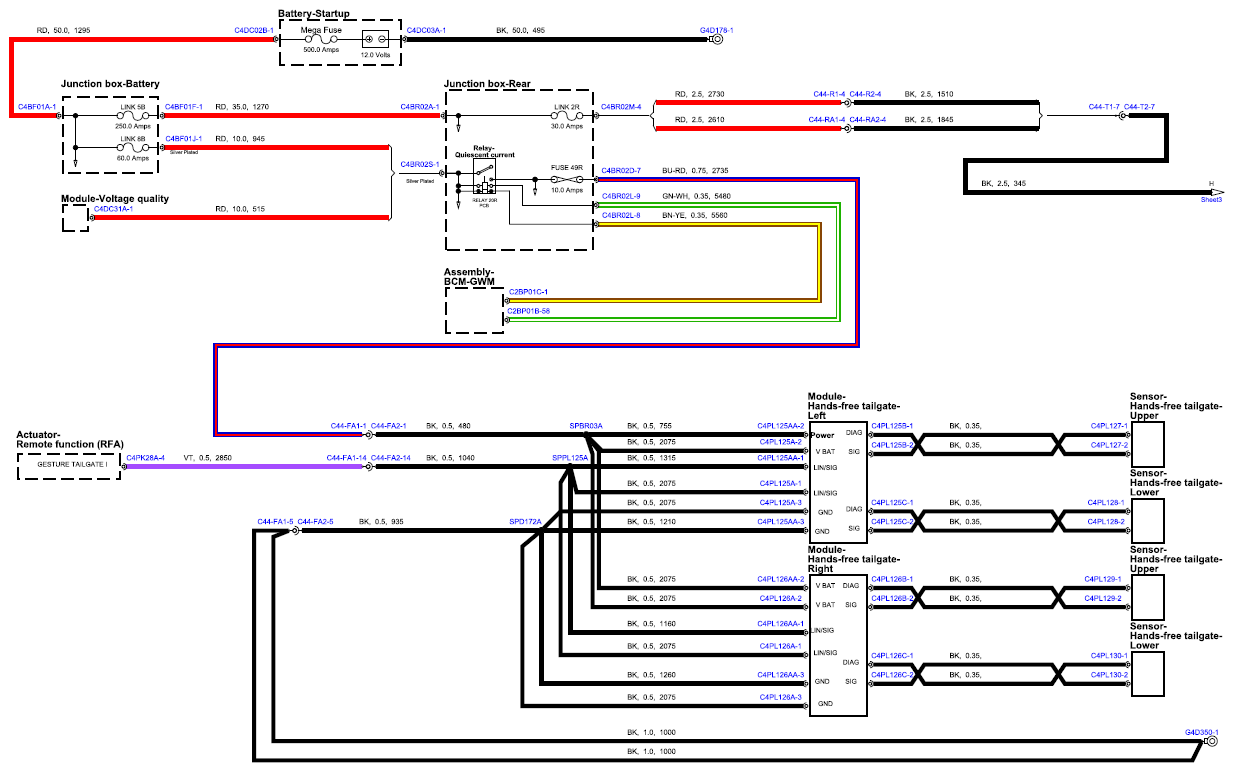

Fig 1: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 1)
G15554682Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

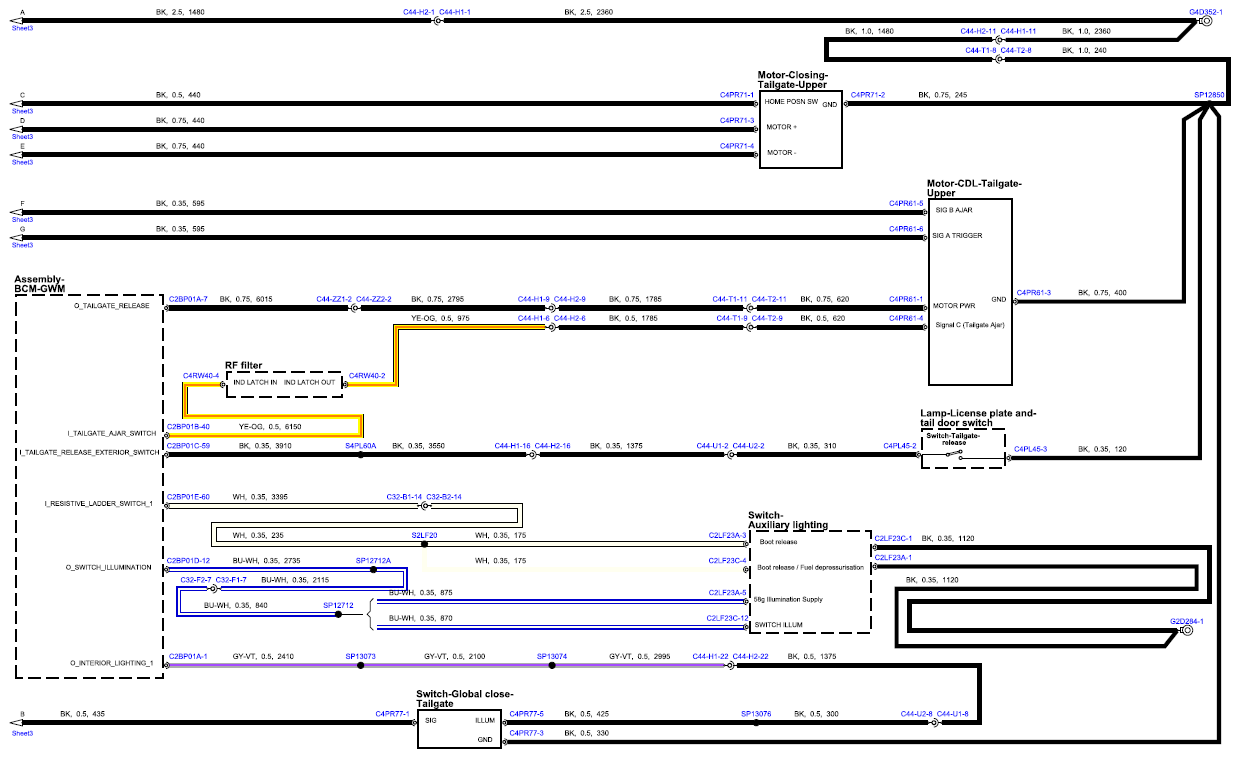

Fig 2: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 2)
G15554683Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

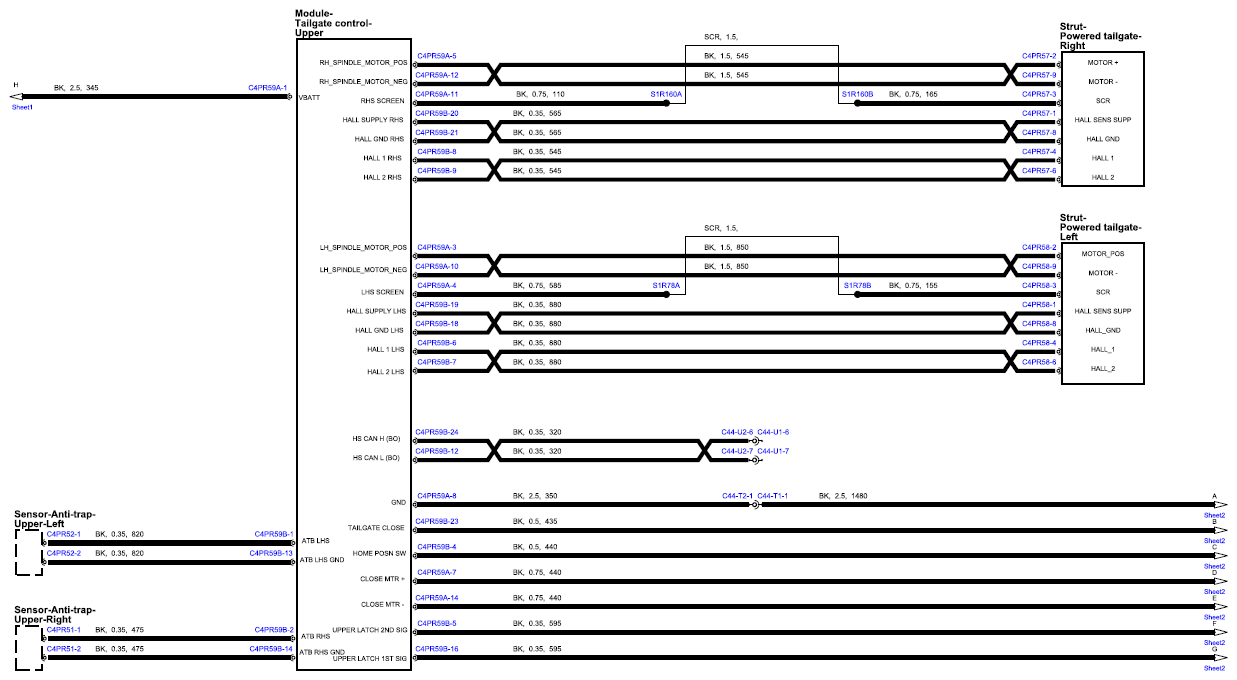

Fig 3: Tailgate - Powered (Range Rover Sport) Circuit Diagram (Sheet 3)
G15554684Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
