Passive entry system

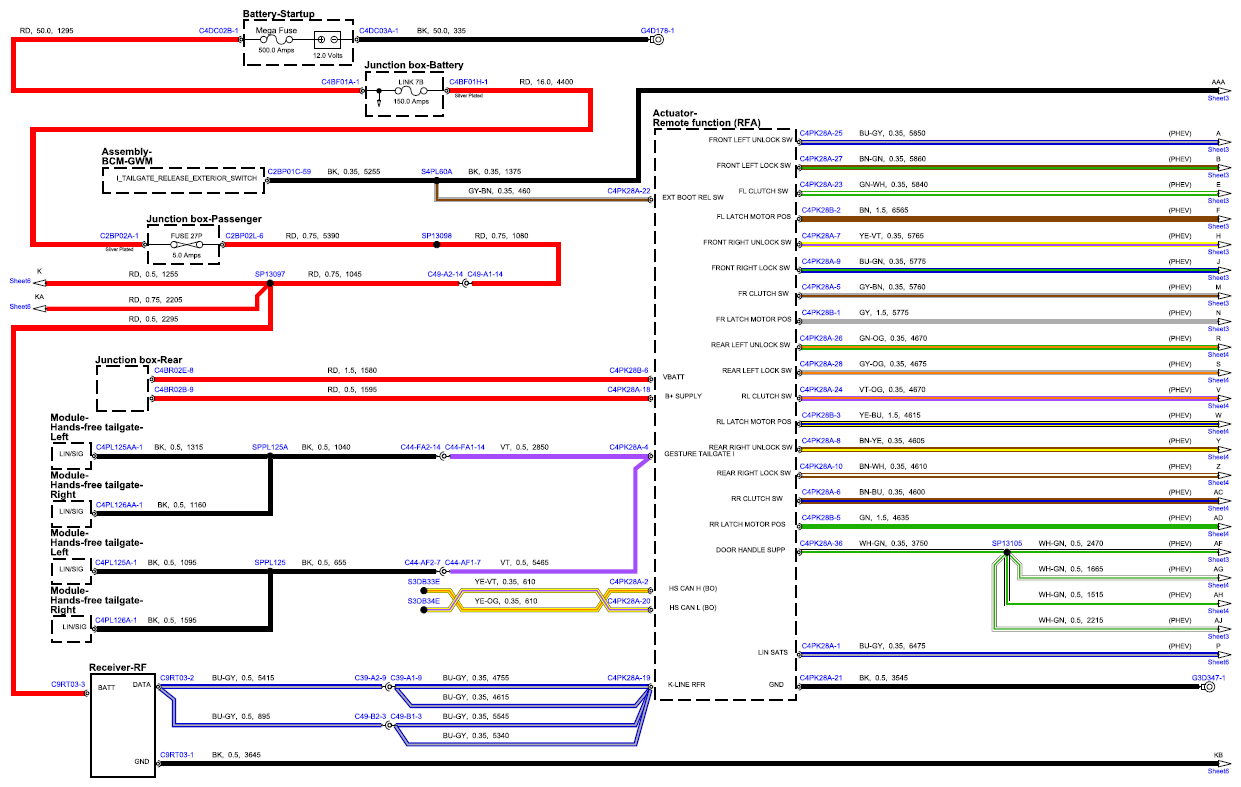

Fig 1: Passive Entry System Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

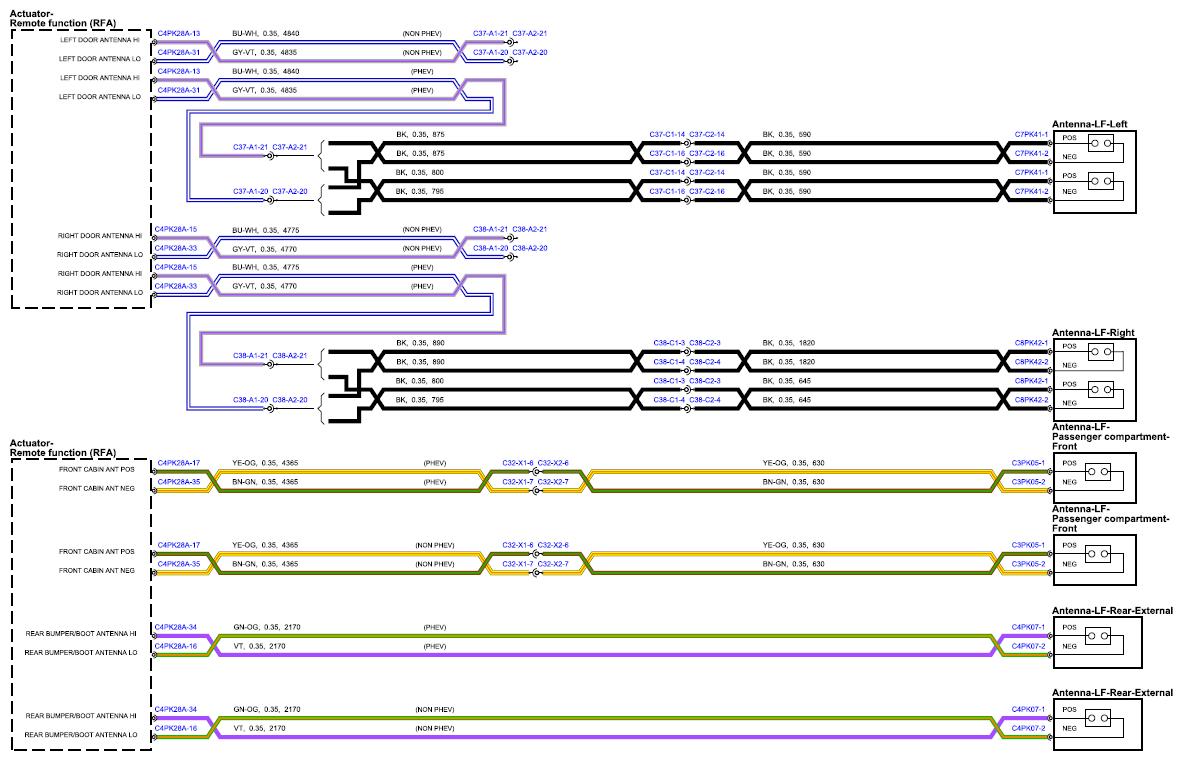

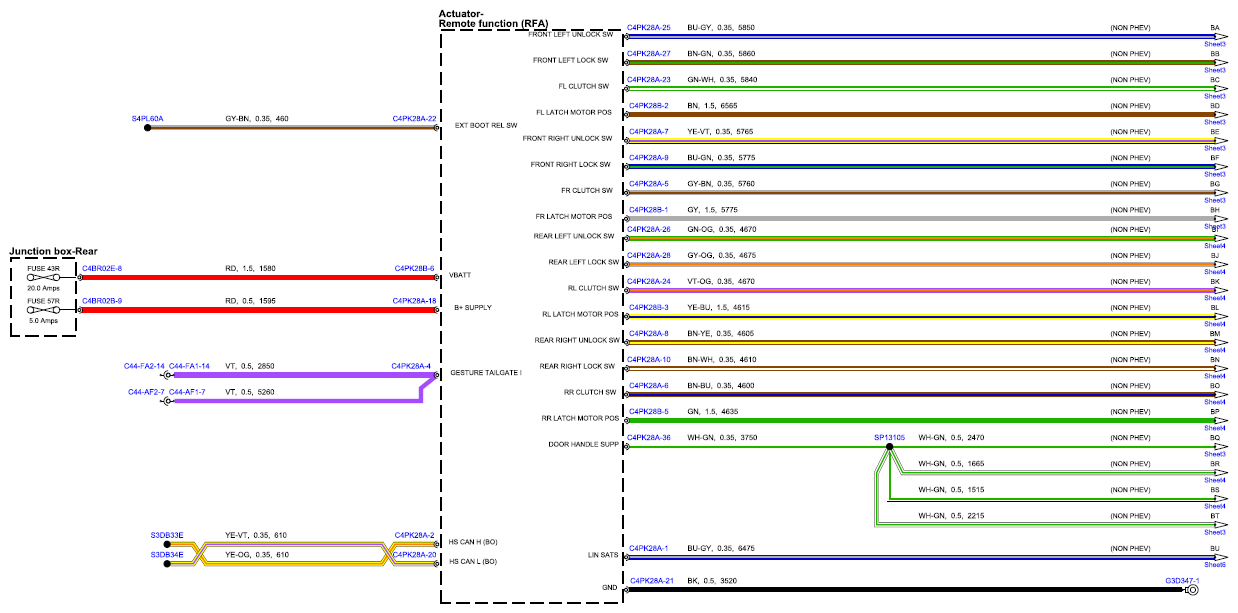

Fig 2: Passive Entry System Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

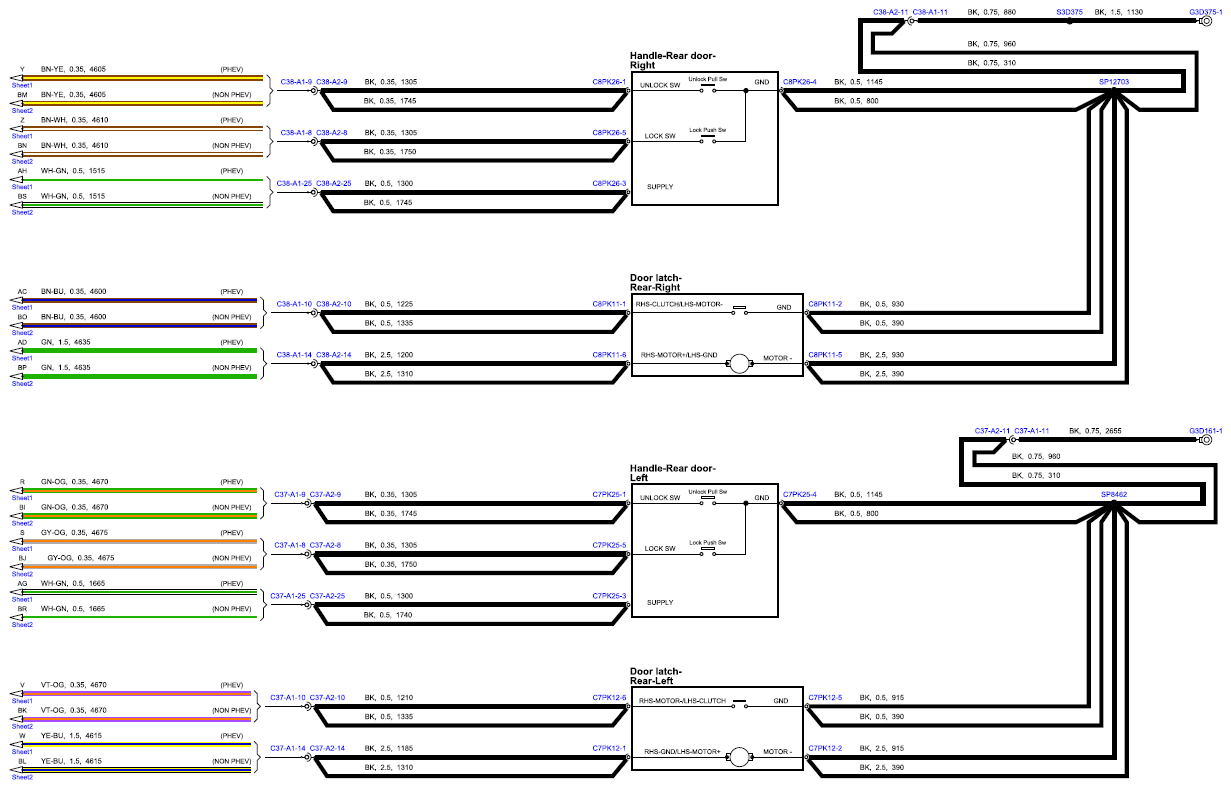

Fig 3: Passive Entry System Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

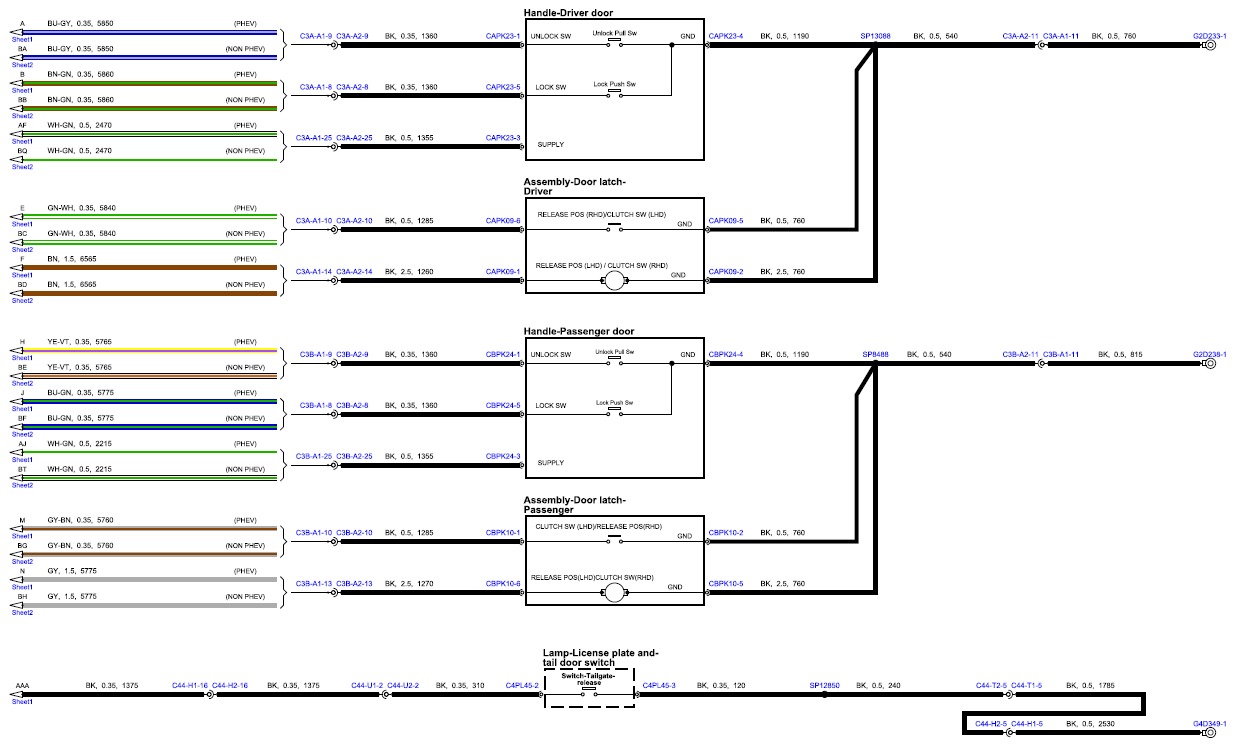

Fig 4: Passive Entry System Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 5: Passive Entry System Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

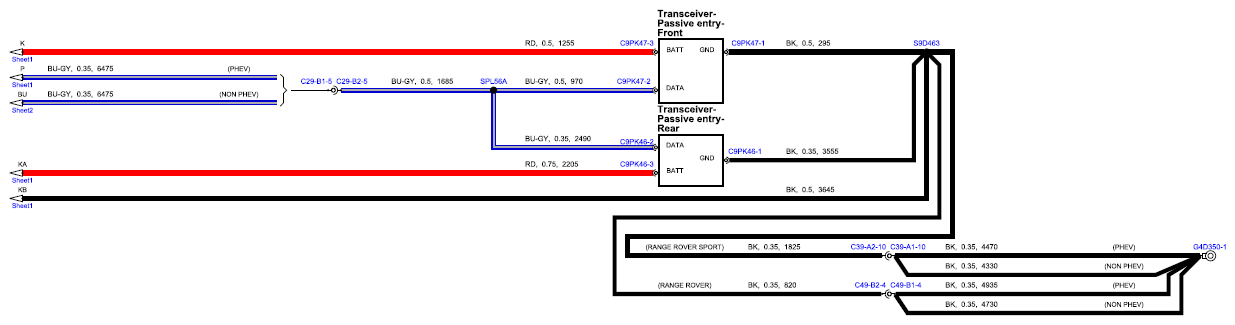

Fig 6: Passive Entry System Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
