Glovebox release (Range Rover Sport)

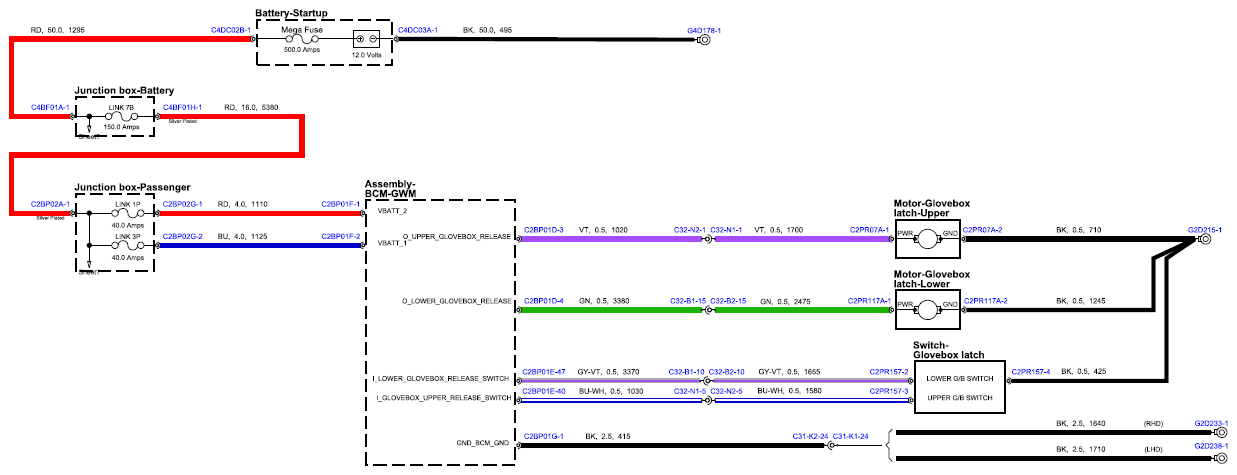

Fig 1: Glovebox Release (Range Rover Sport) Circuit Diagram

G15554675

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
