OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-11 Glass, Frames And Mechanisms
>>
Window lift - Driver side
Window lift - Driver side

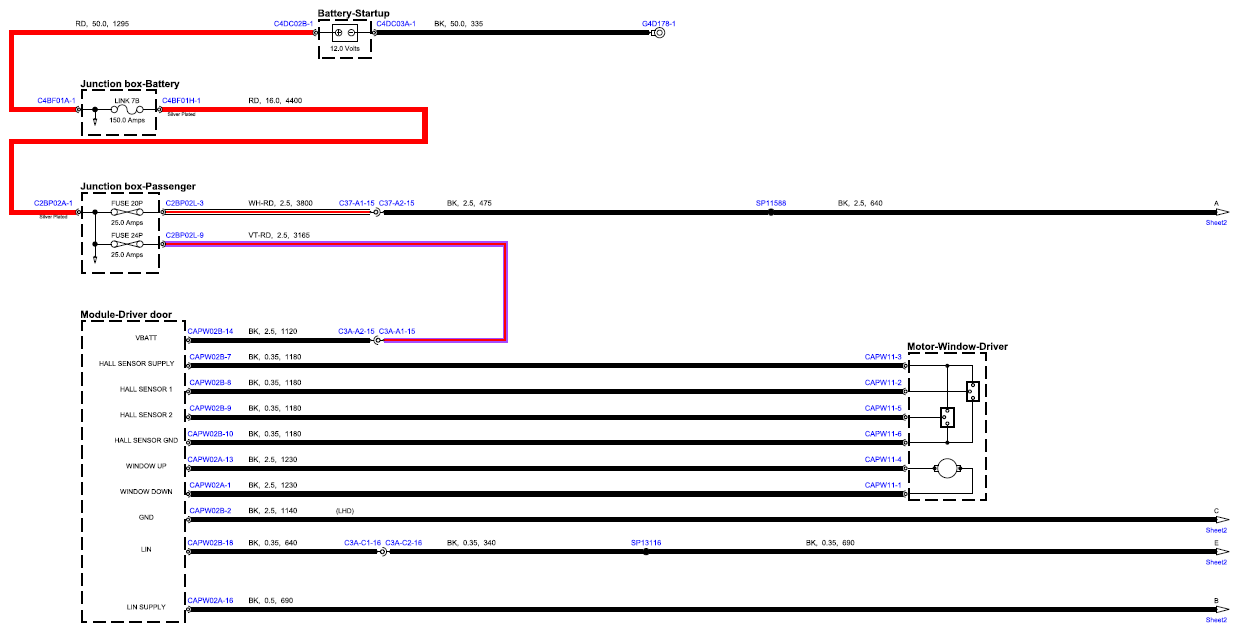

Fig 1: Window Lift - Driver Side Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

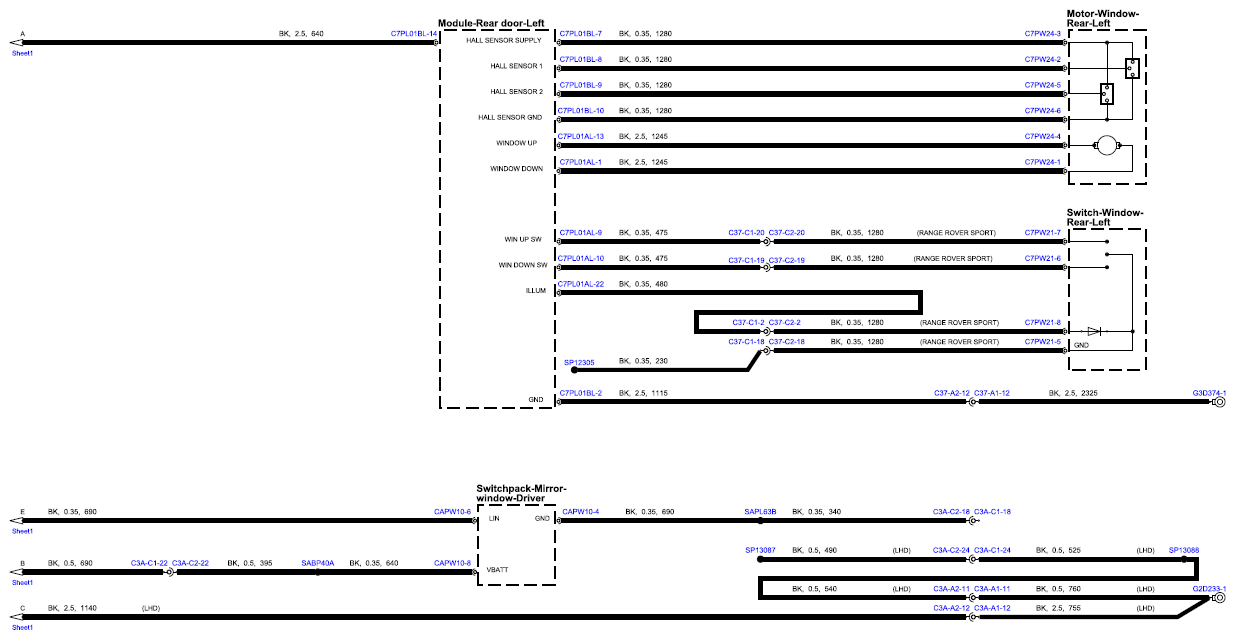

Fig 2: Window Lift - Driver Side Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
