Second Row Executive Seat - Climate controlled

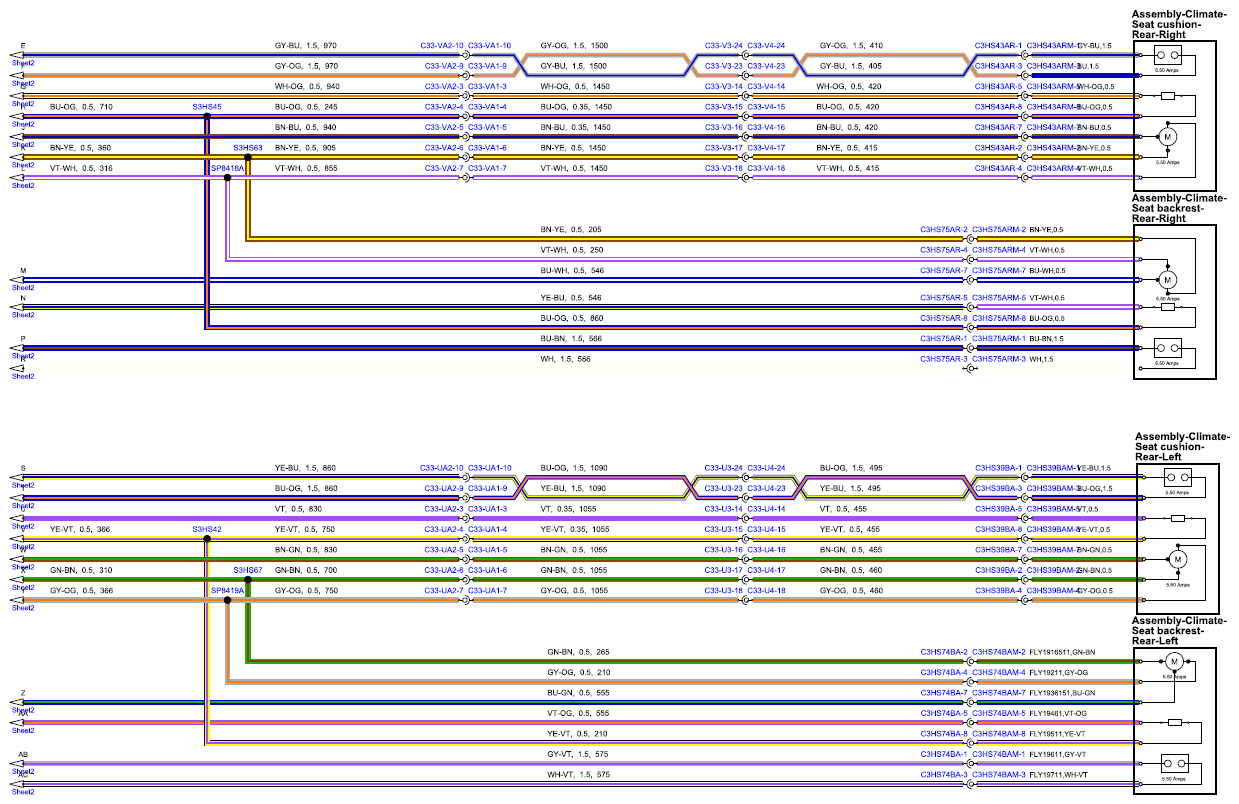

Fig 1: Second Row Executive Seat - Climate Controlled Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

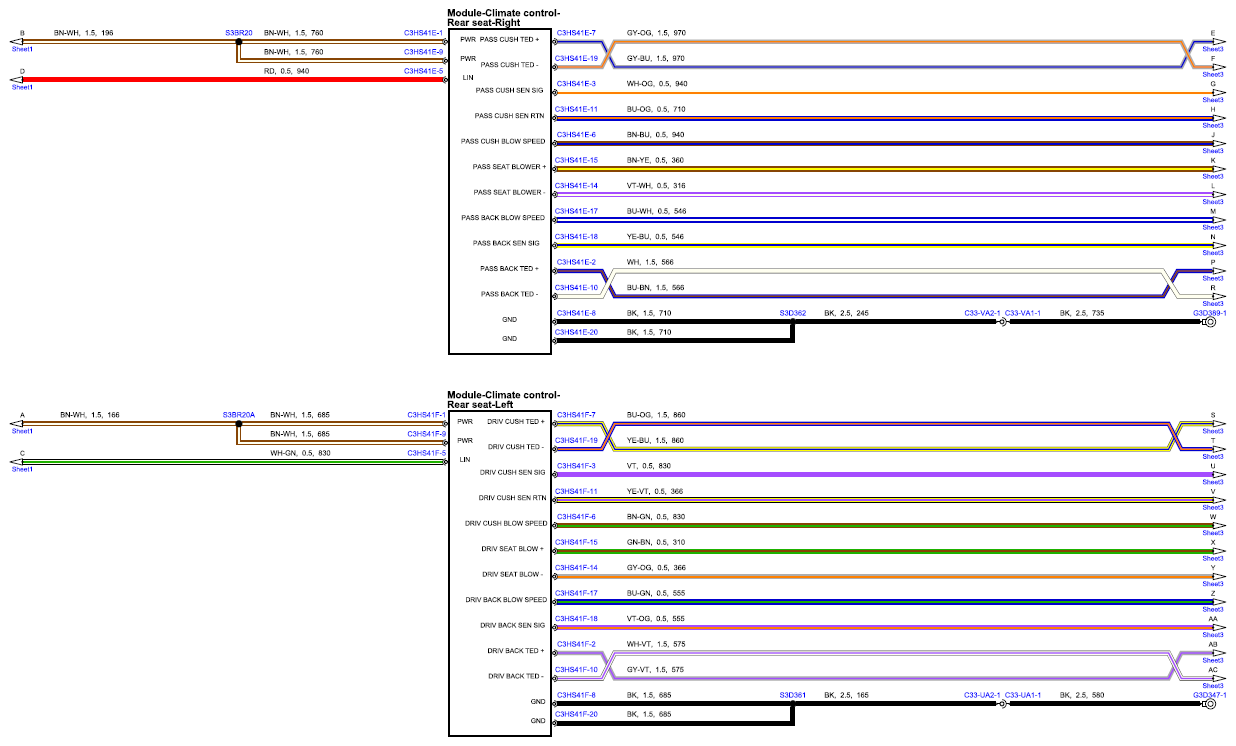

Fig 2: Second Row Executive Seat - Climate Controlled Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

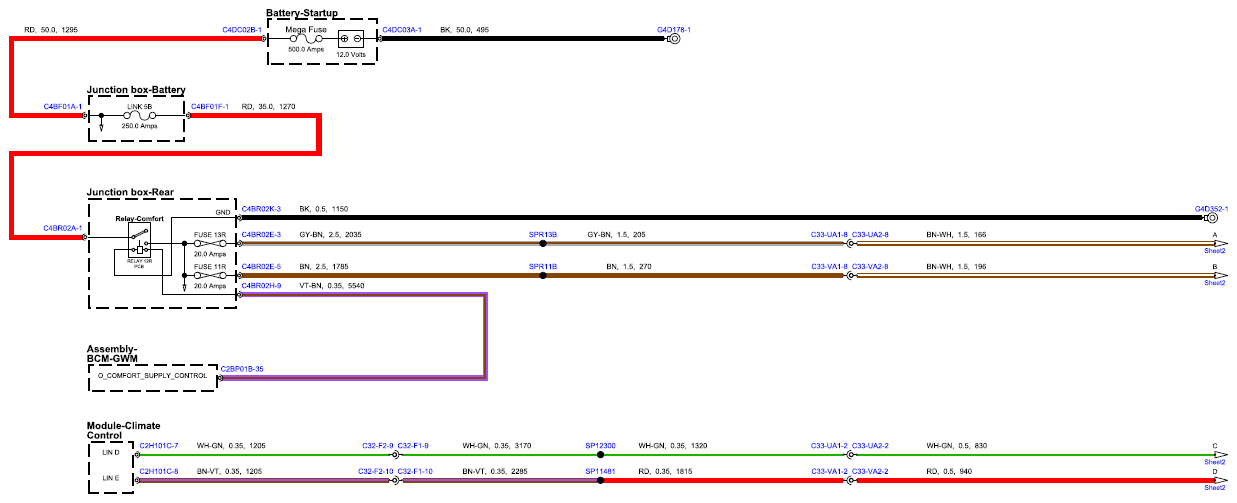

Fig 3: Second Row Executive Seat - Climate Controlled Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
