OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-10 Seating
>>
Rear - Climate controlled (Range Rover Sport)
Rear - Climate controlled (Range Rover Sport)

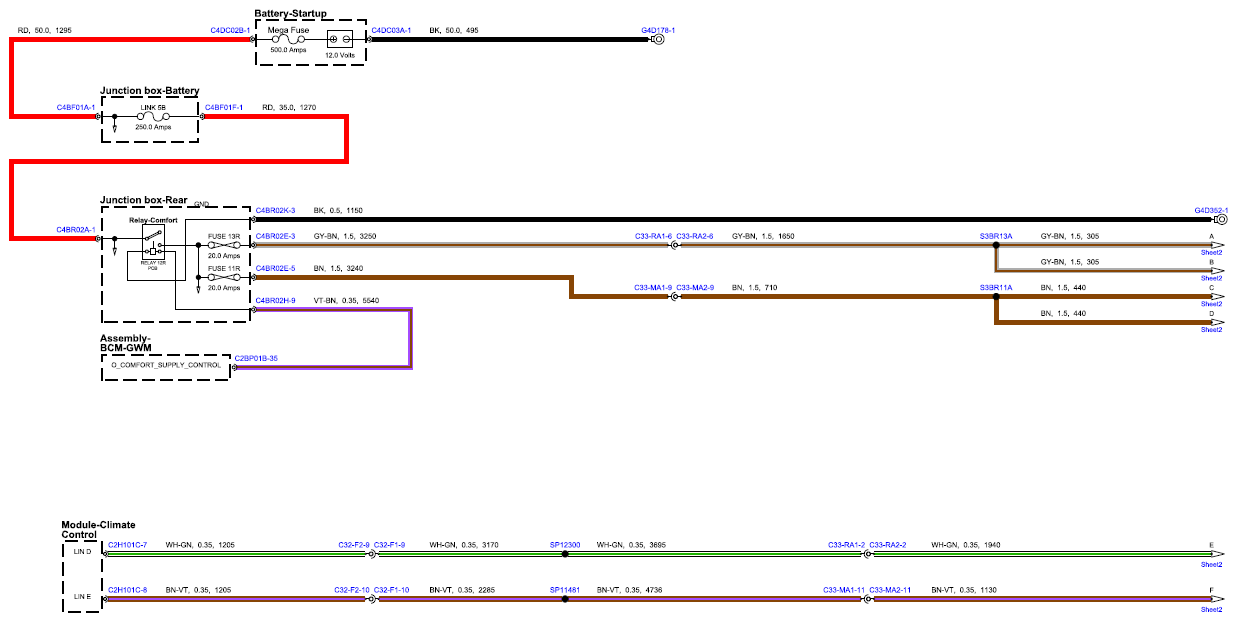

Fig 1: Rear - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

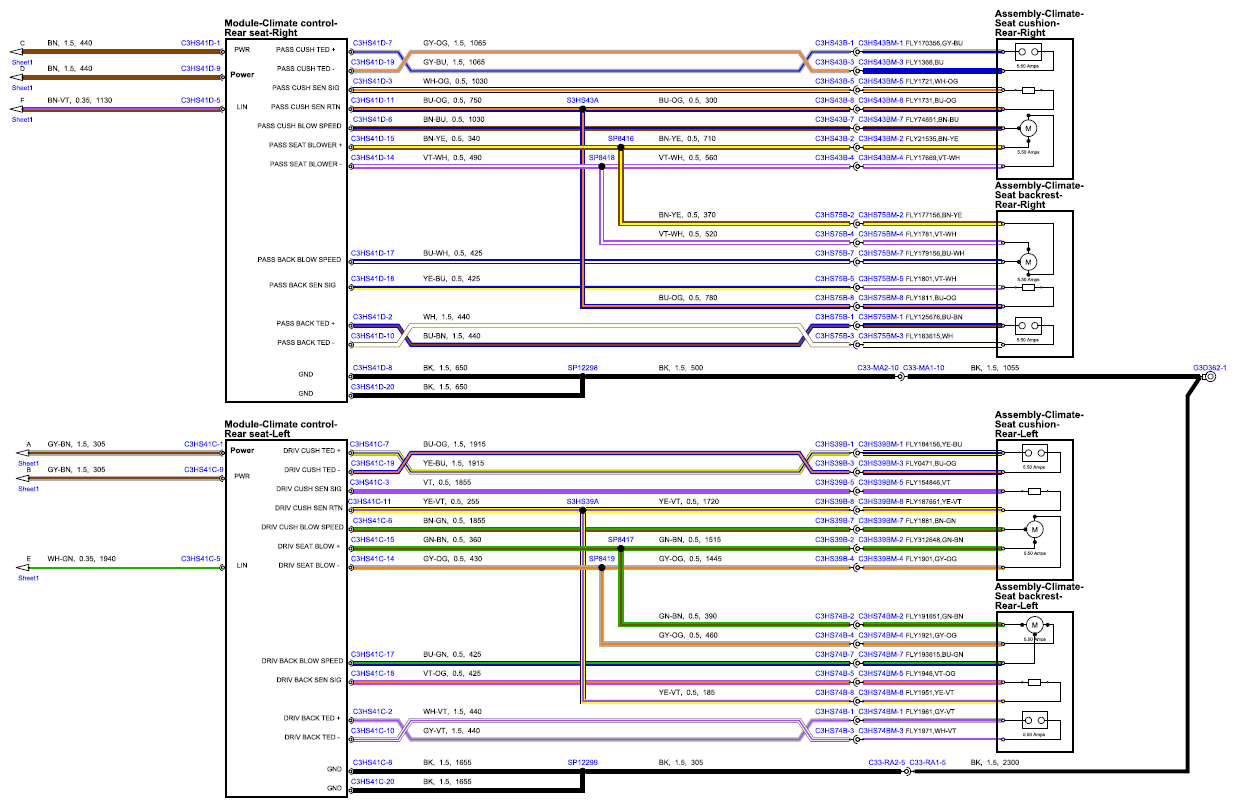

Fig 2: Rear - Climate Controlled (Range Rover Sport) Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
