Range Rover Sport Supercharged Dynamic
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-10 Seating
>>
Passenger - Non-memory
Passenger - Non-memory

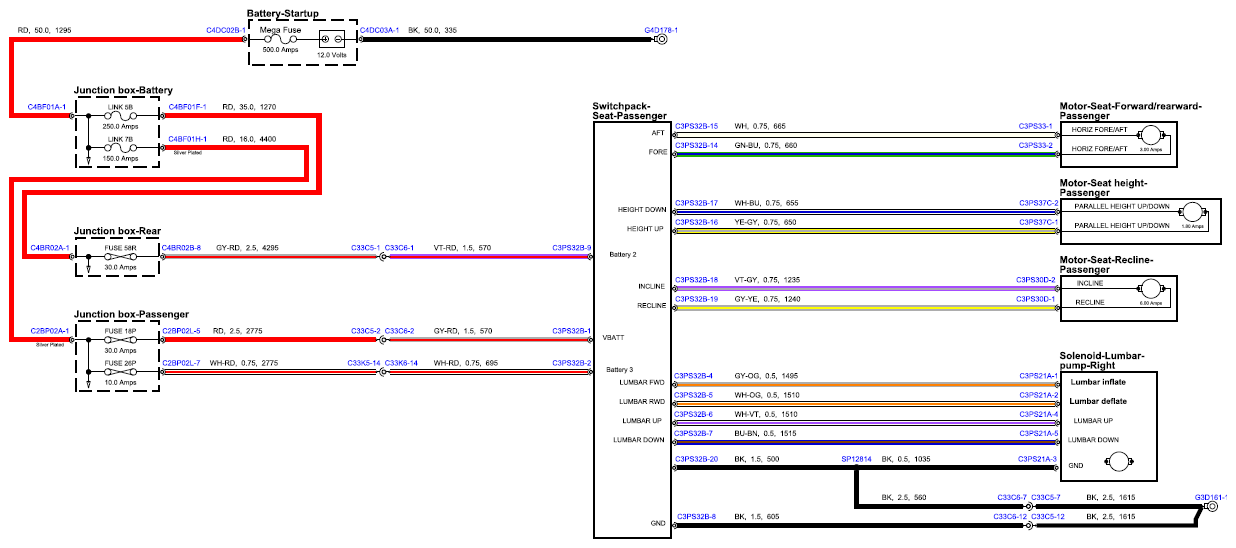

Fig 1: Passenger - Non-Memory Circuit Diagram
