Passenger - Memory - All adjustments (Range Rover Sport)

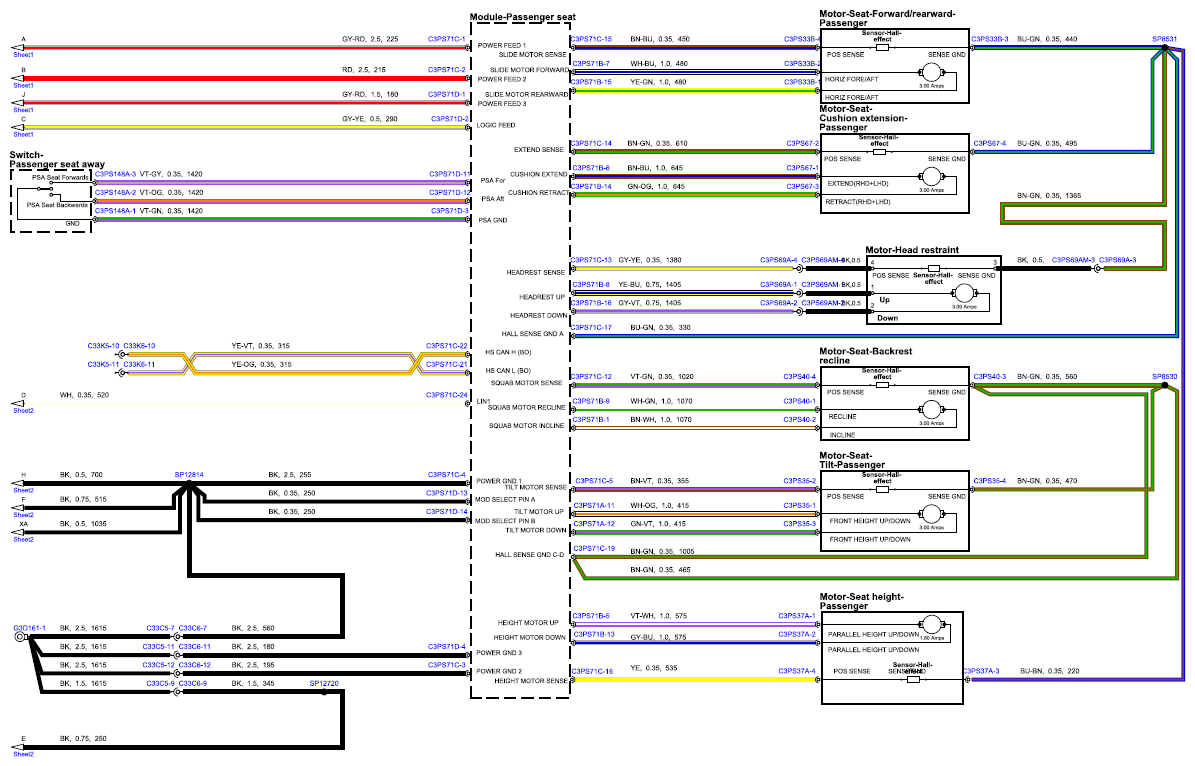

Fig 1: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

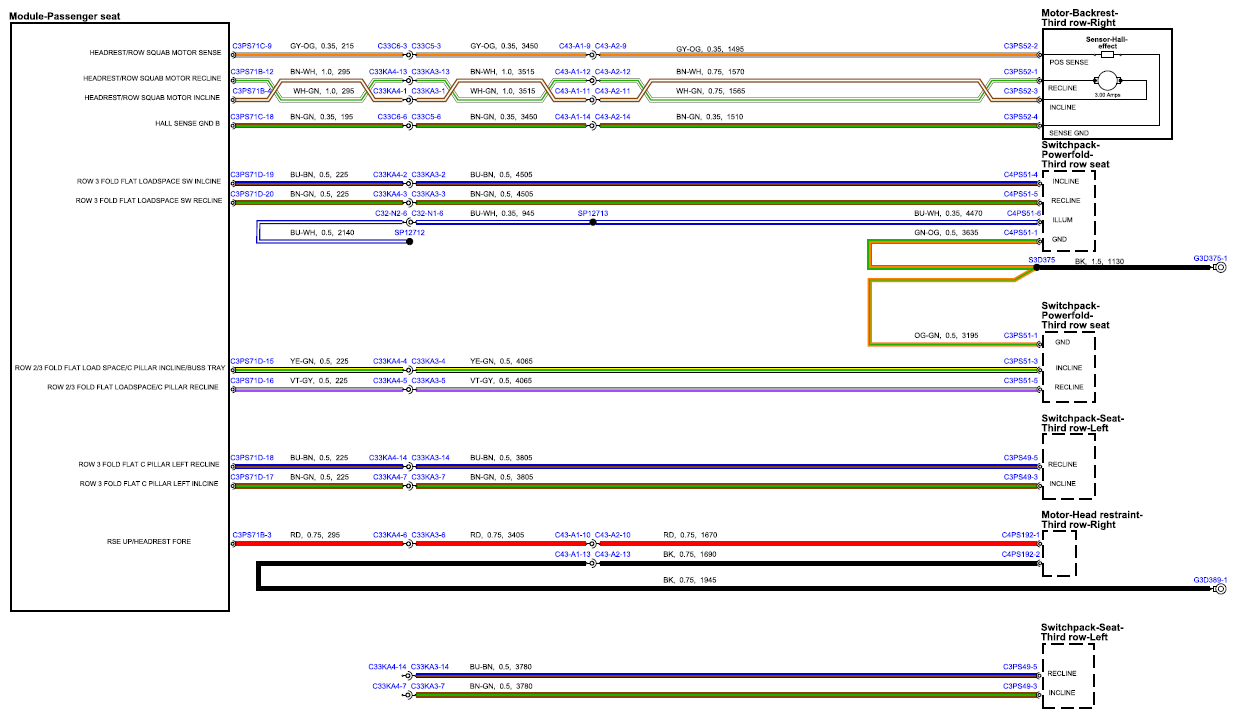

Fig 2: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

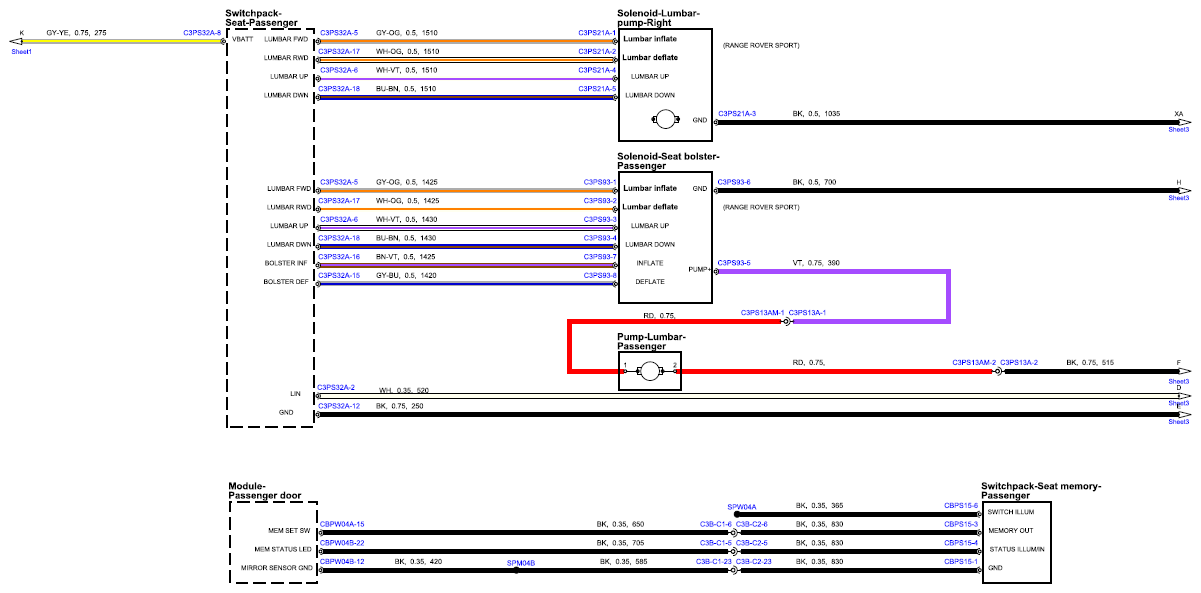

Fig 3: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

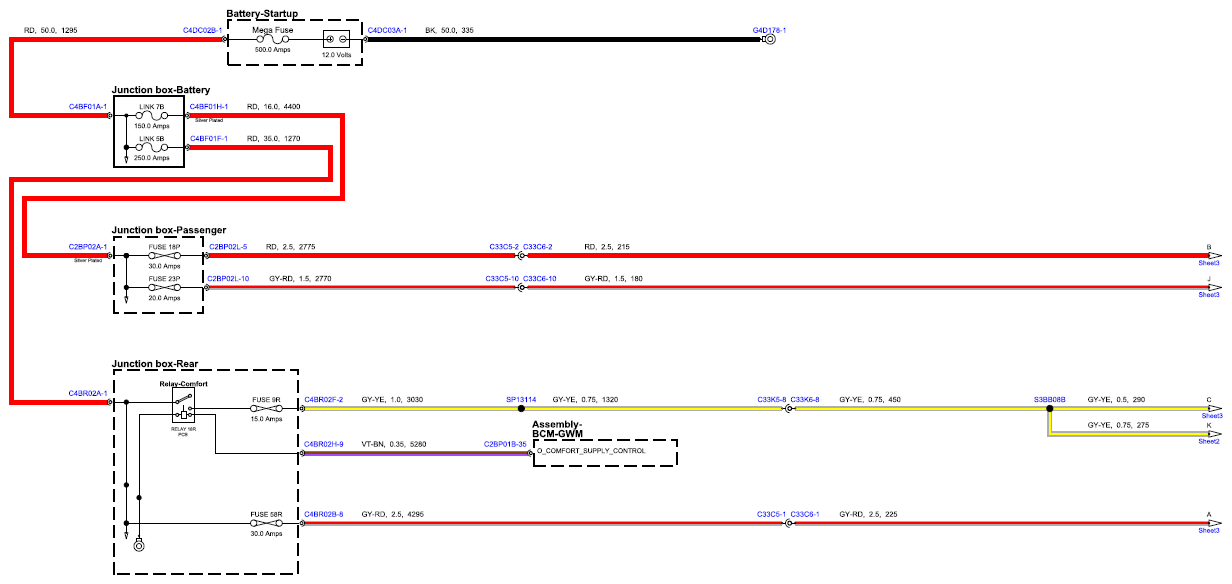

Fig 4: Passenger - Memory - All Adjustments (Range Rover Sport) Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
