Front - Heated (Range Rover Sport)

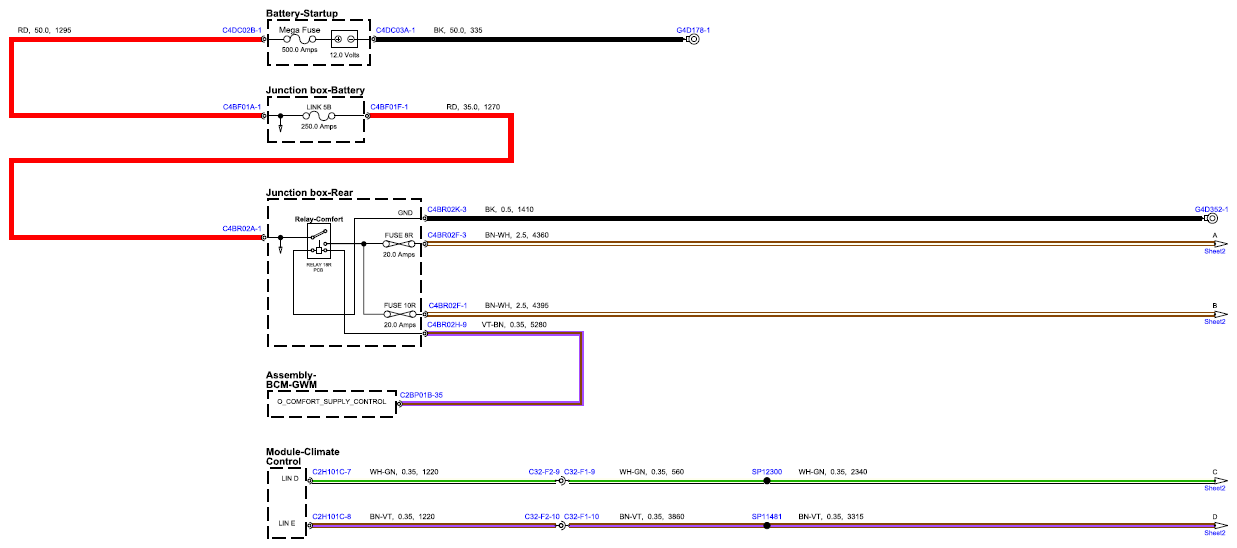

Fig 1: Front - Heated (Range Rover Sport) Circuit Diagram (Sheet 1)
G15554573Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

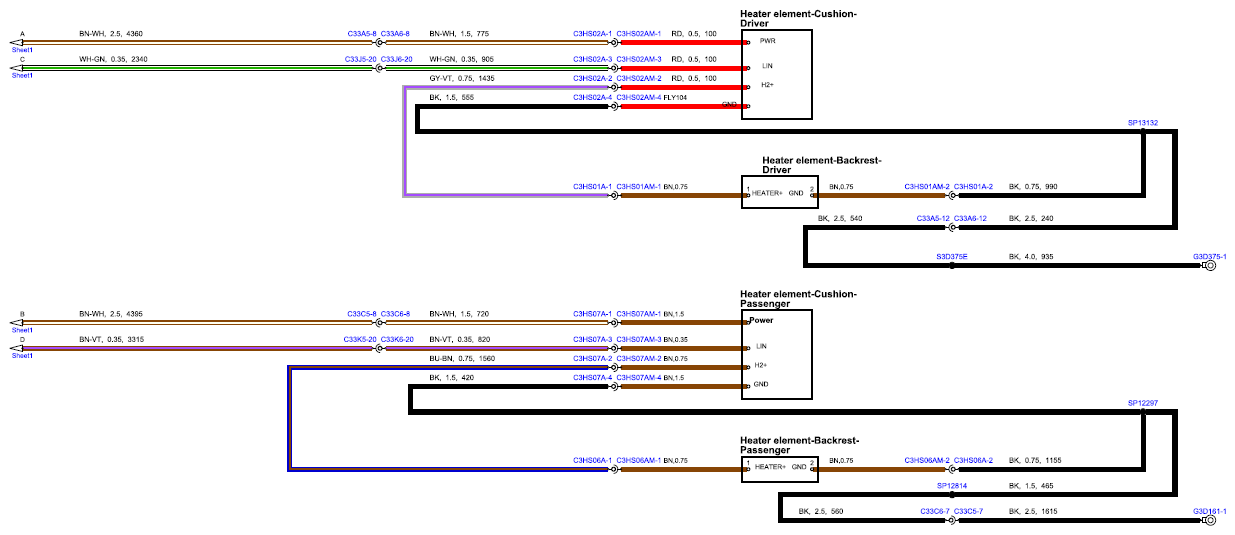

Fig 2: Front - Heated (Range Rover Sport) Circuit Diagram (Sheet 2)
G15554574Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
