Wiring Diagrams
>>
OEM Wiring Diagrams -- Range Rover Sport L494
>>
501-10 Seating
>>
Driver - Non-memory
Driver - Non-memory

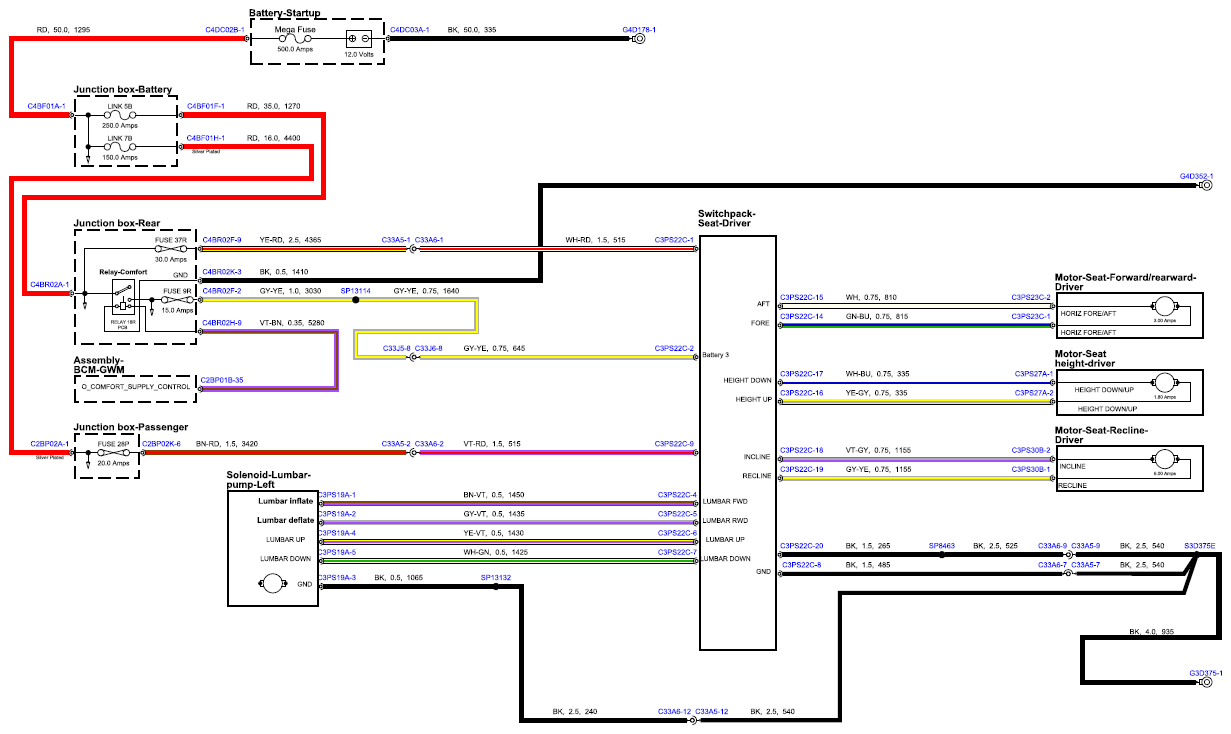

Fig 1: Driver - Non-Memory Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
