Driver - Memory - 8 to 12 way adjustment (Range Rover Sport)

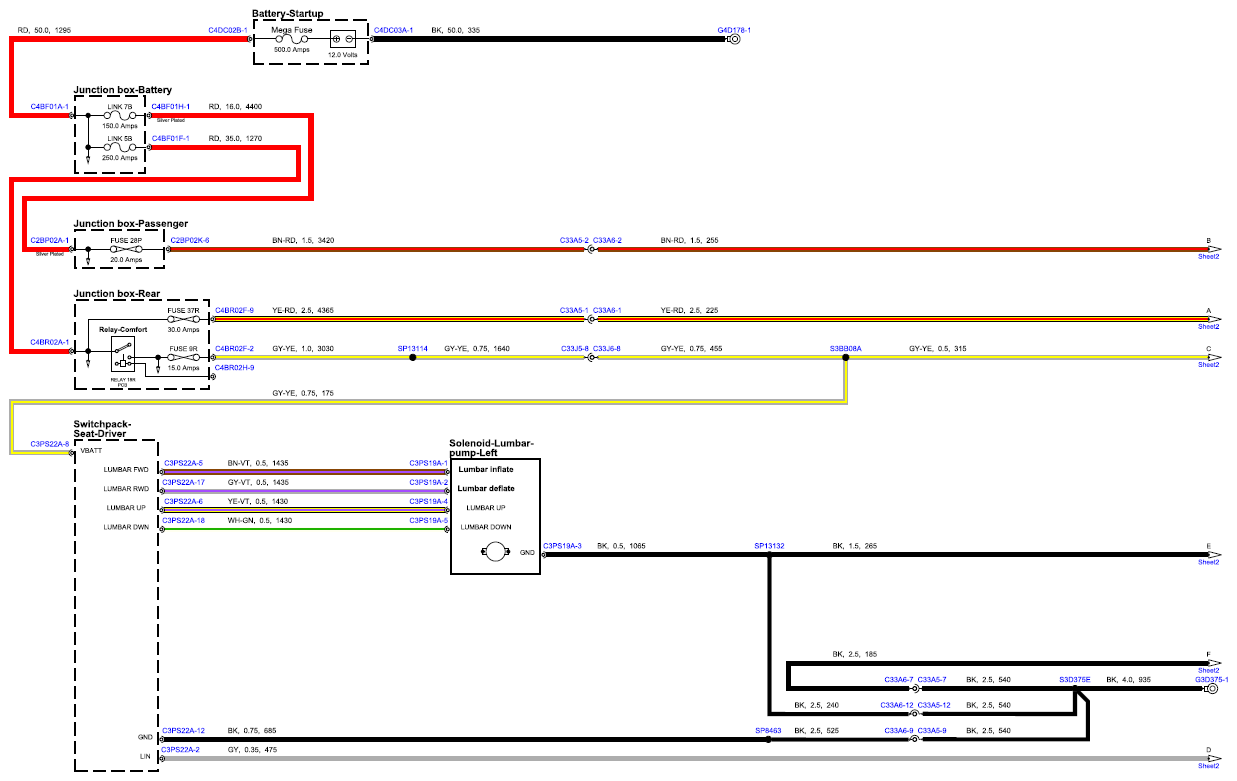

Fig 1: Driver - Memory - 8 To 12 Way Adjustment (Range Rover Sport) Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

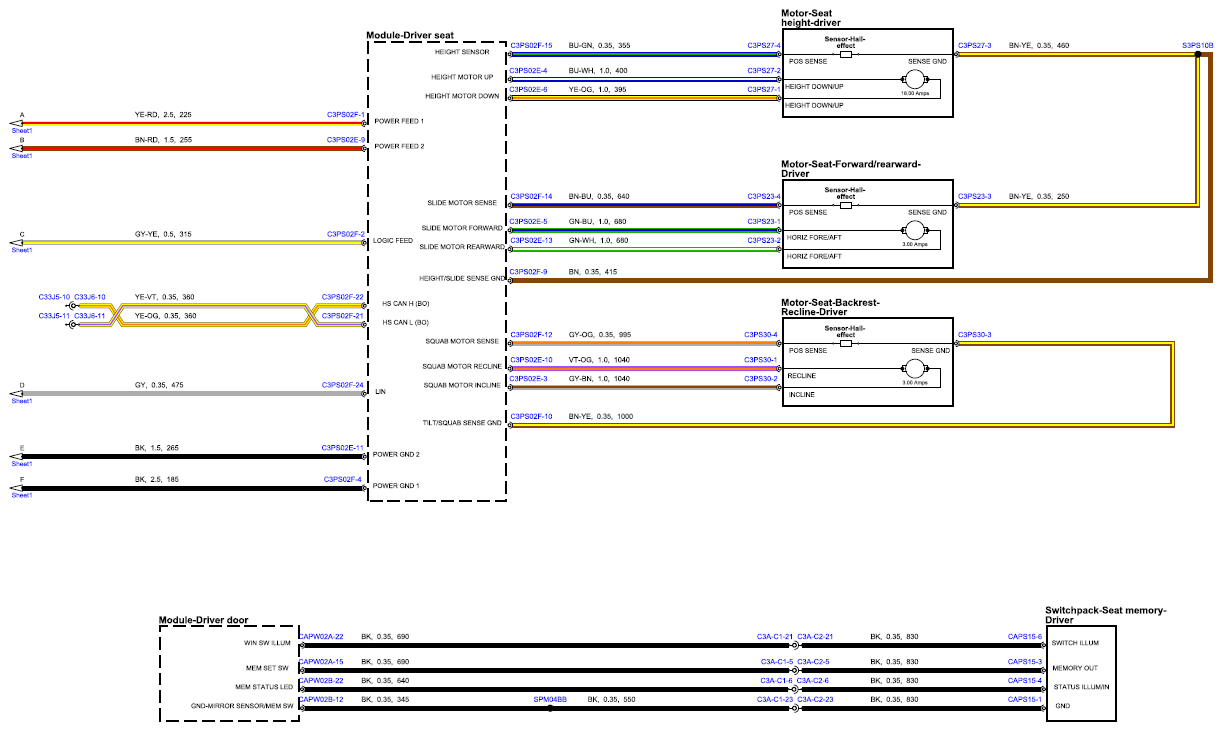

Fig 2: Driver - Memory - 8 To 12 Way Adjustment (Range Rover Sport) Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
