Driver - Memory - 12 to 18 way adjustment

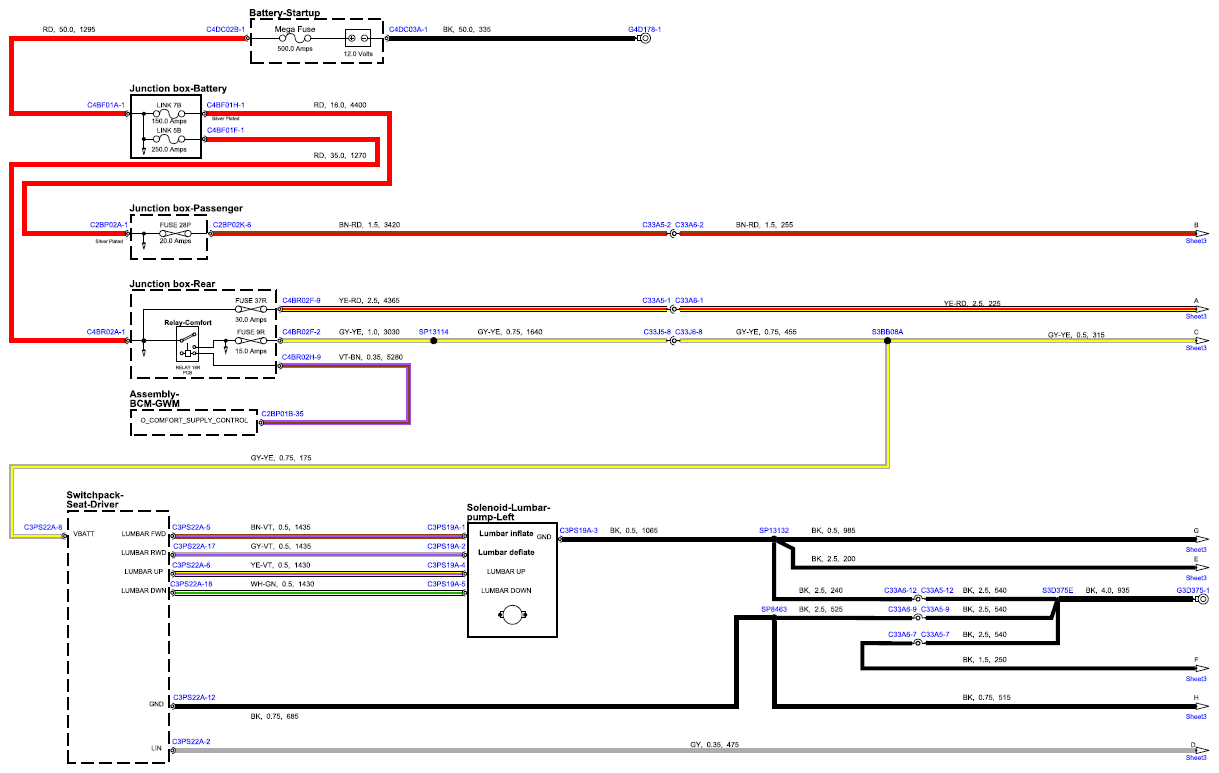

Fig 1: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

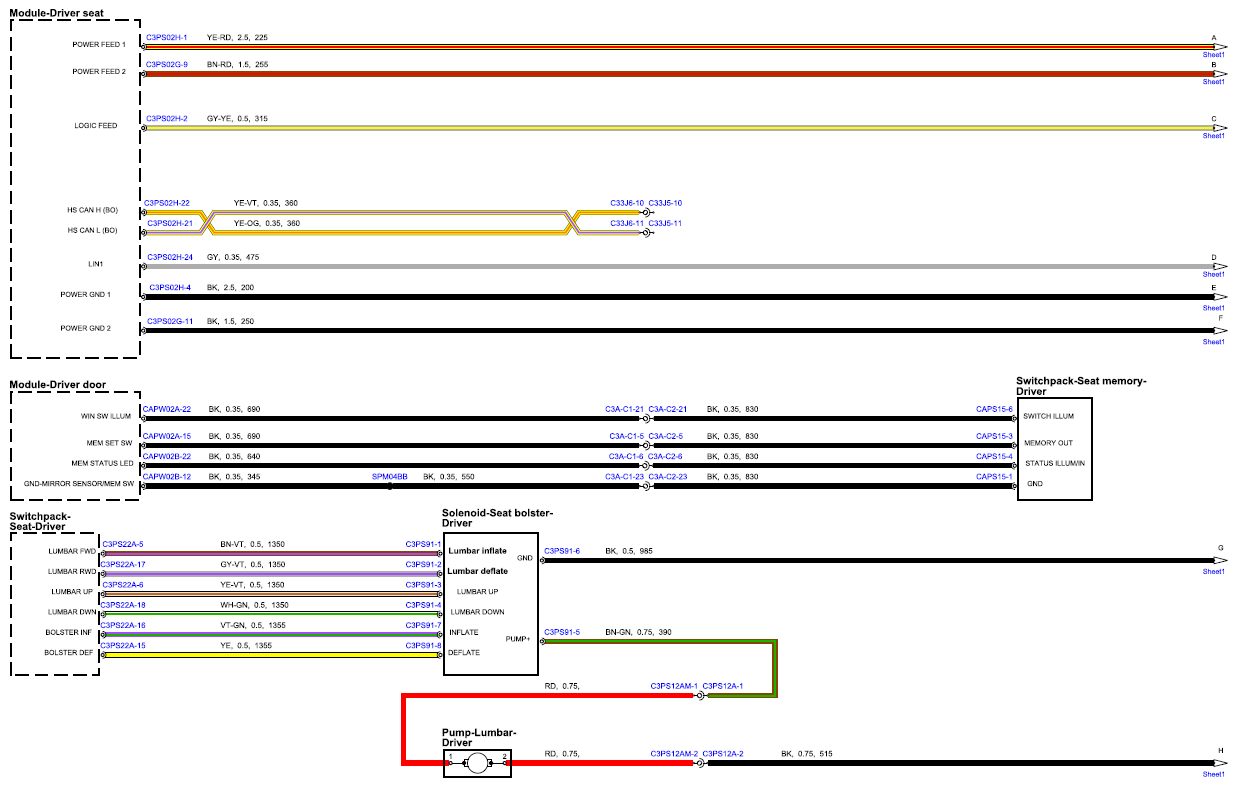

Fig 2: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

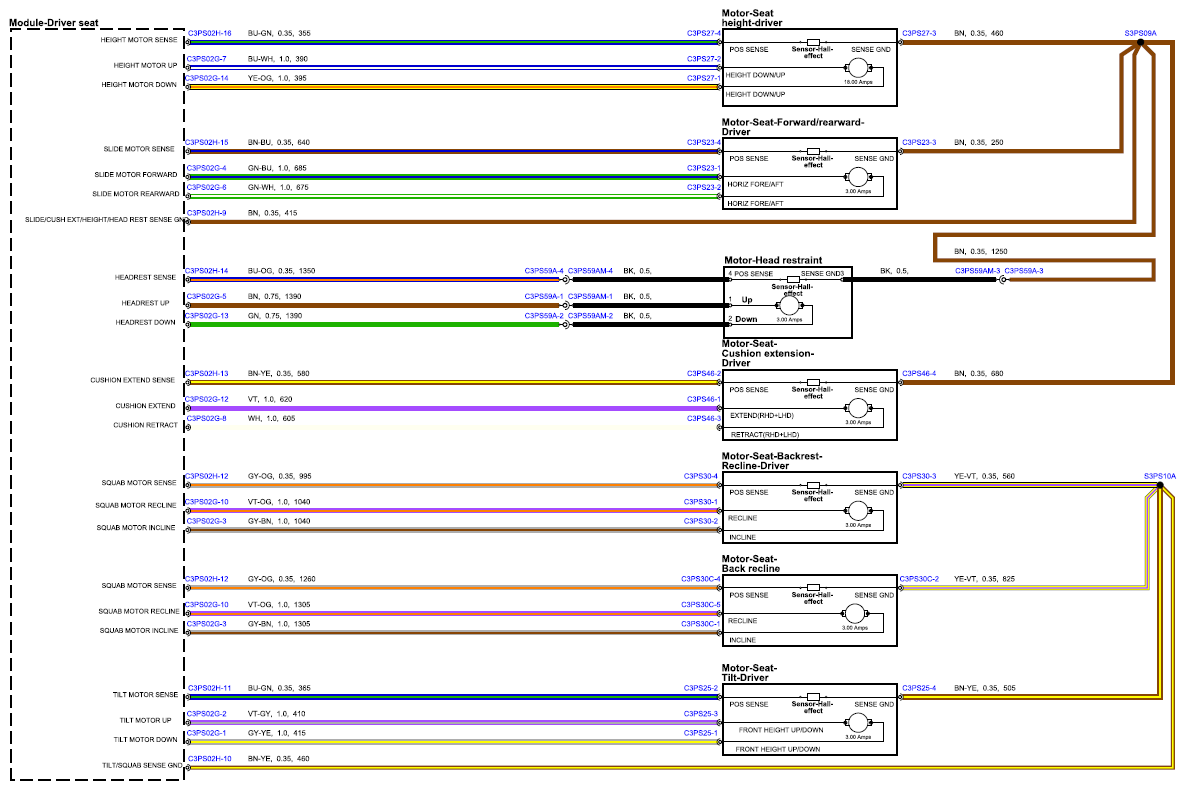

Fig 3: Driver - Memory - 12 To 18 Way Adjustment Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
