Driver - Massage (Range Rover Sport)

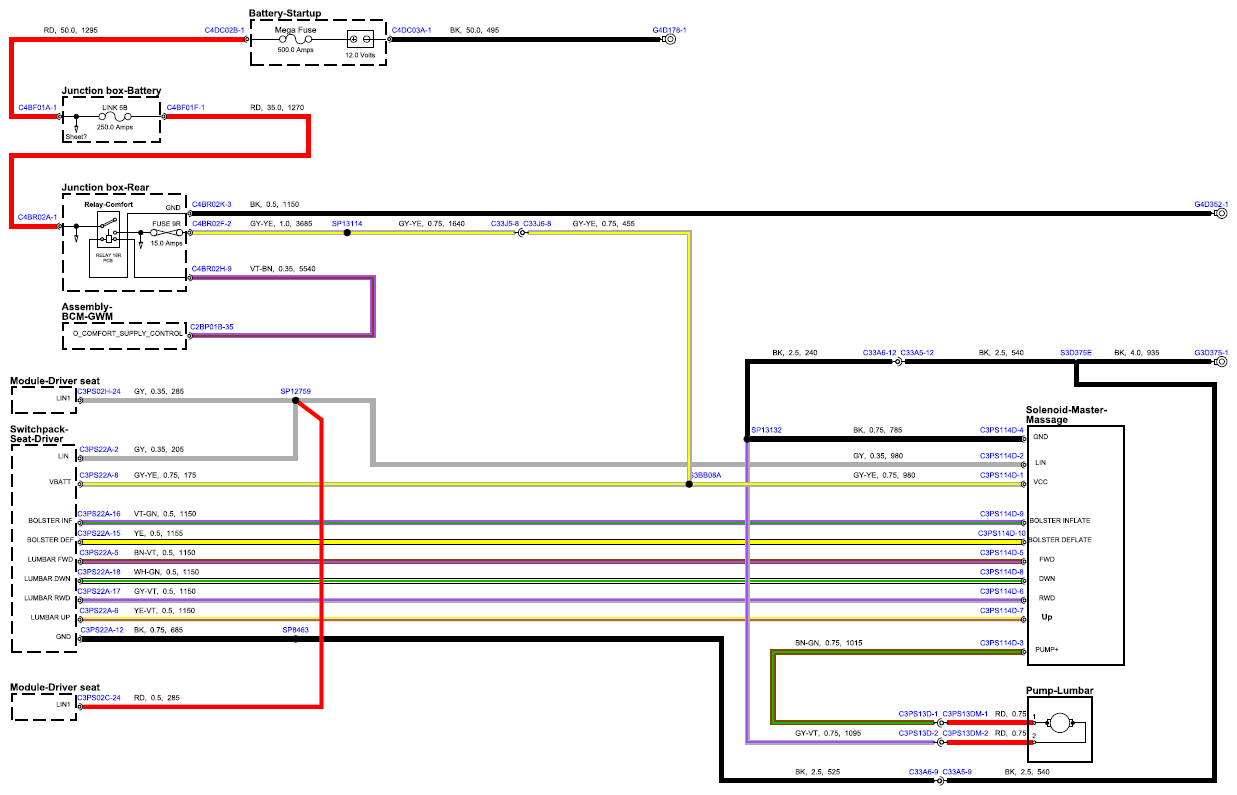

Fig 1: Driver - Massage (Range Rover Sport) Circuit Diagram

G15554572

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
