501-09 Rear View Mirrors: Electrochromic

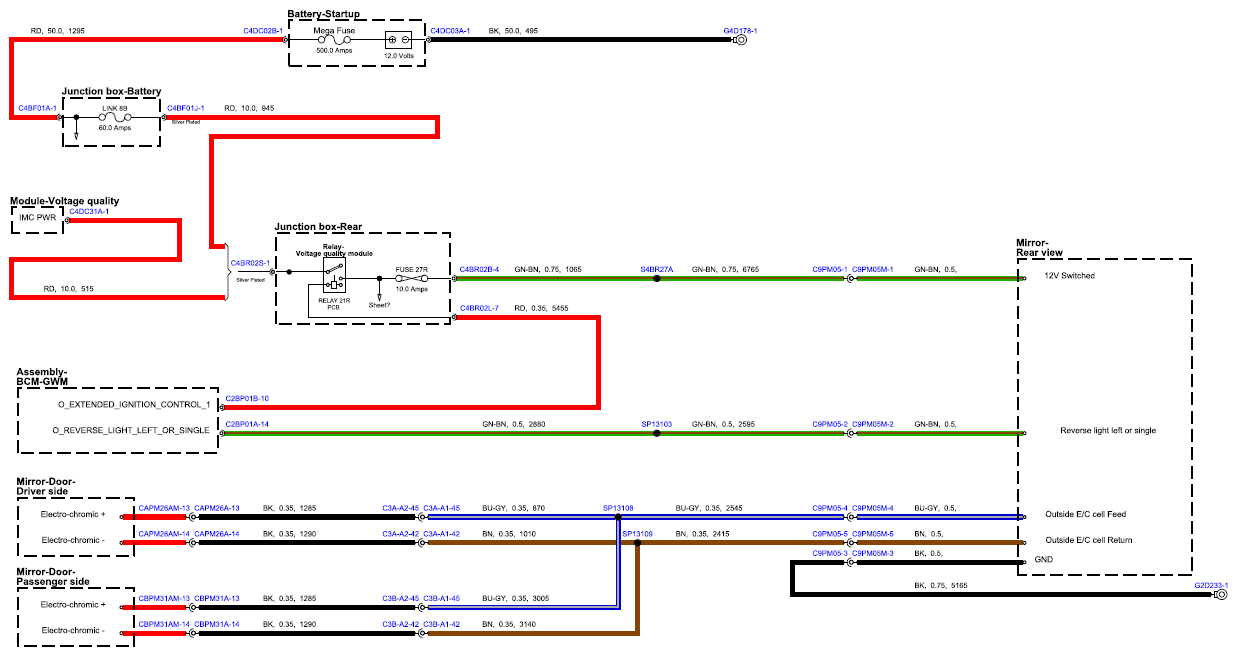

Fig 1: Electrochromic Circuit Diagram

G15554557

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
