501-09 Rear View Mirrors: Door

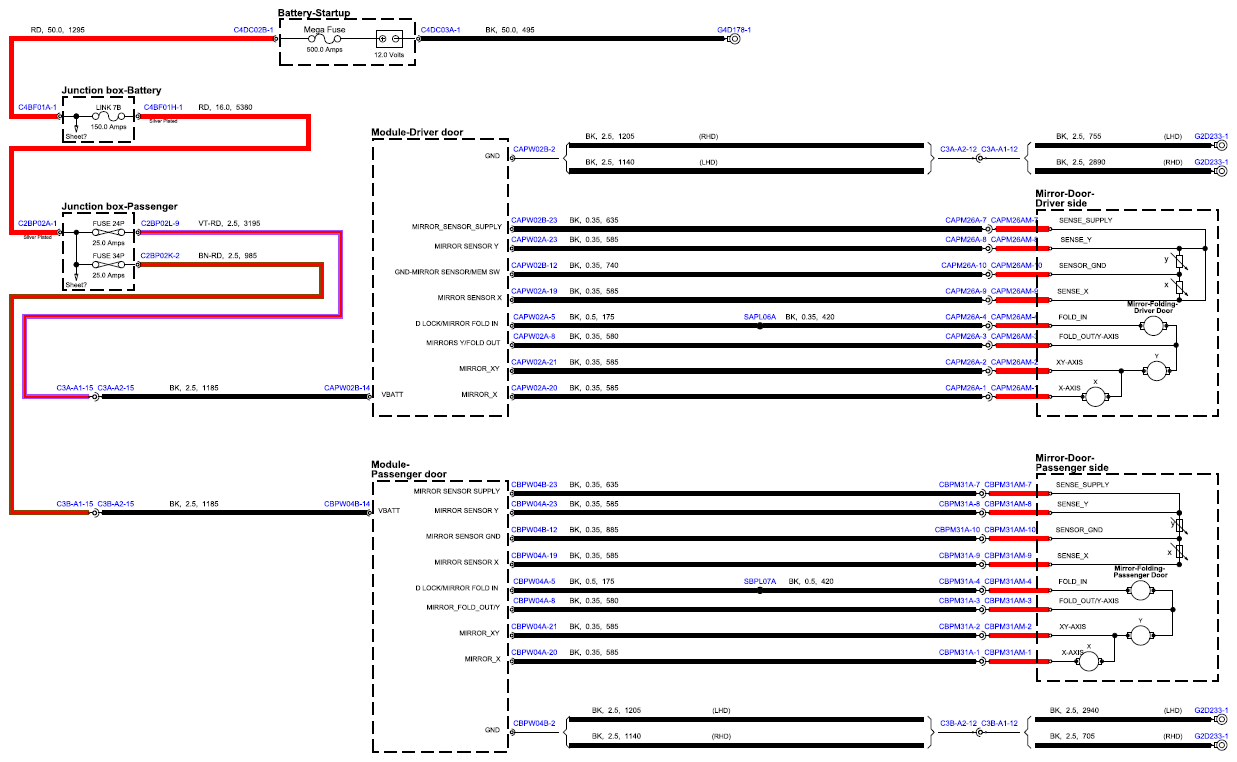

Fig 1: Door Circuit Diagram

G15554558

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
