501-05 Interior Trim And Ornamentation: Armrest

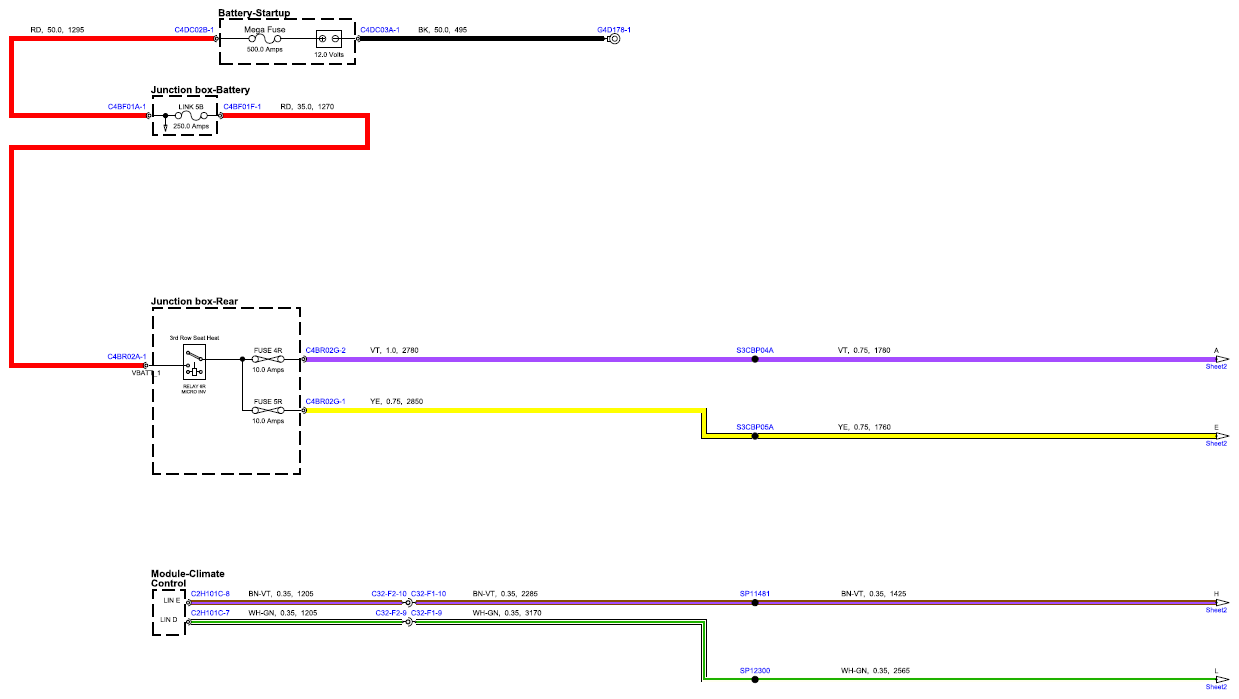

Fig 1: Armrest Circuit Diagram (Sheet 1)
G15554555Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

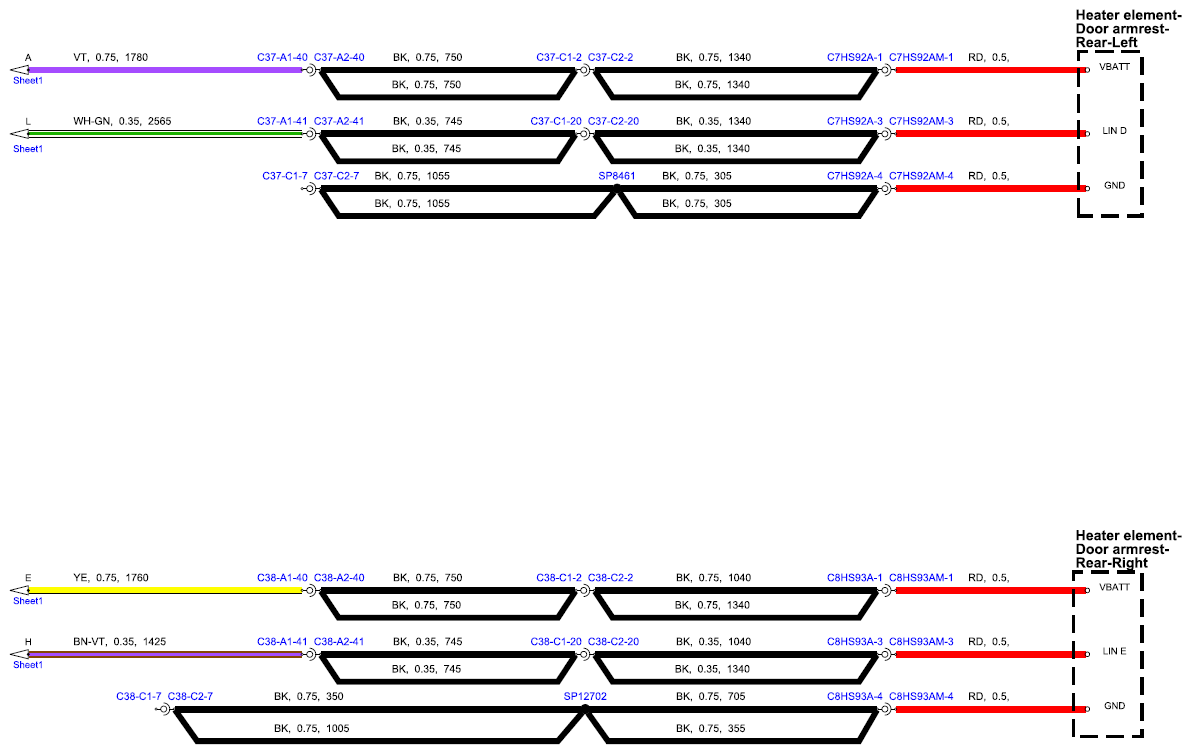

Fig 2: Armrest Circuit Diagram (Sheet 2)
G15554556Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
