OEM Wiring Diagrams -- Range Rover Sport L494
>>
419-01 Anti-Theft System
>>
Passive start (Range Rover Sport)
Passive start (Range Rover Sport)

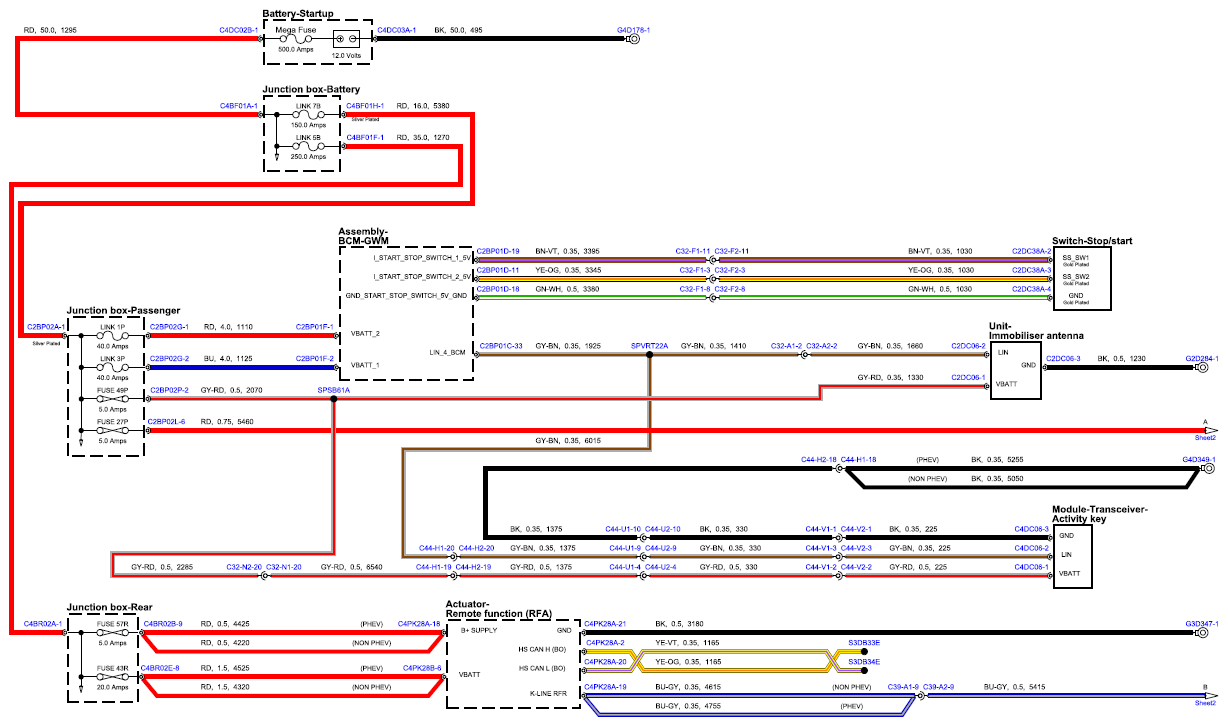

Fig 1: Passive Start (Range Rover Sport) Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

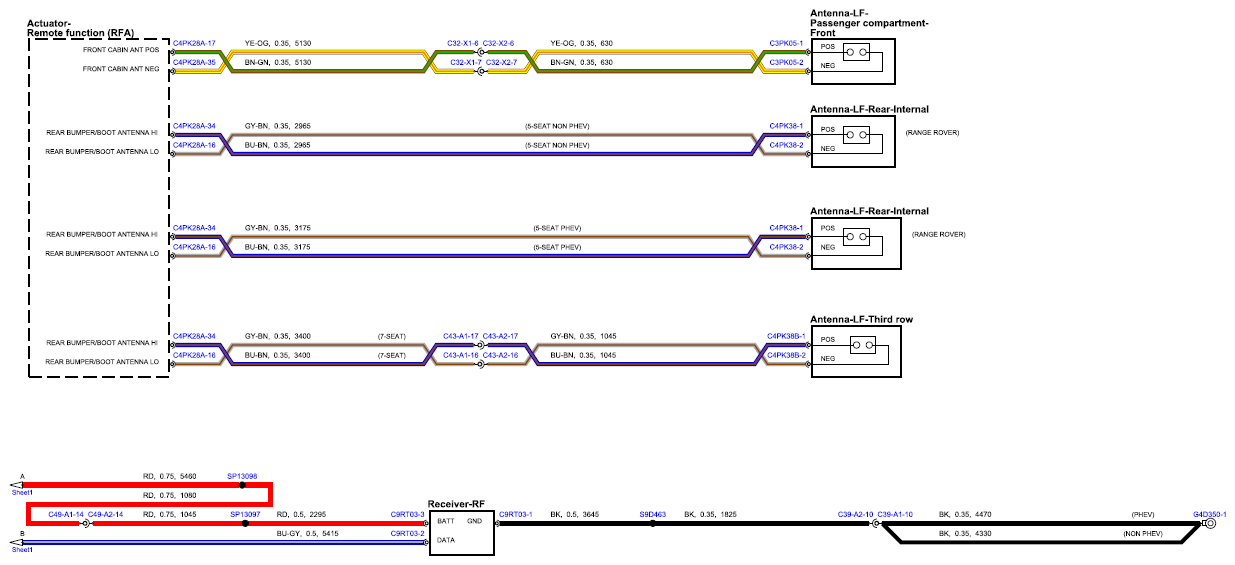

Fig 2: Passive Start (Range Rover Sport) Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
