419-01 Anti-Theft System: Notes

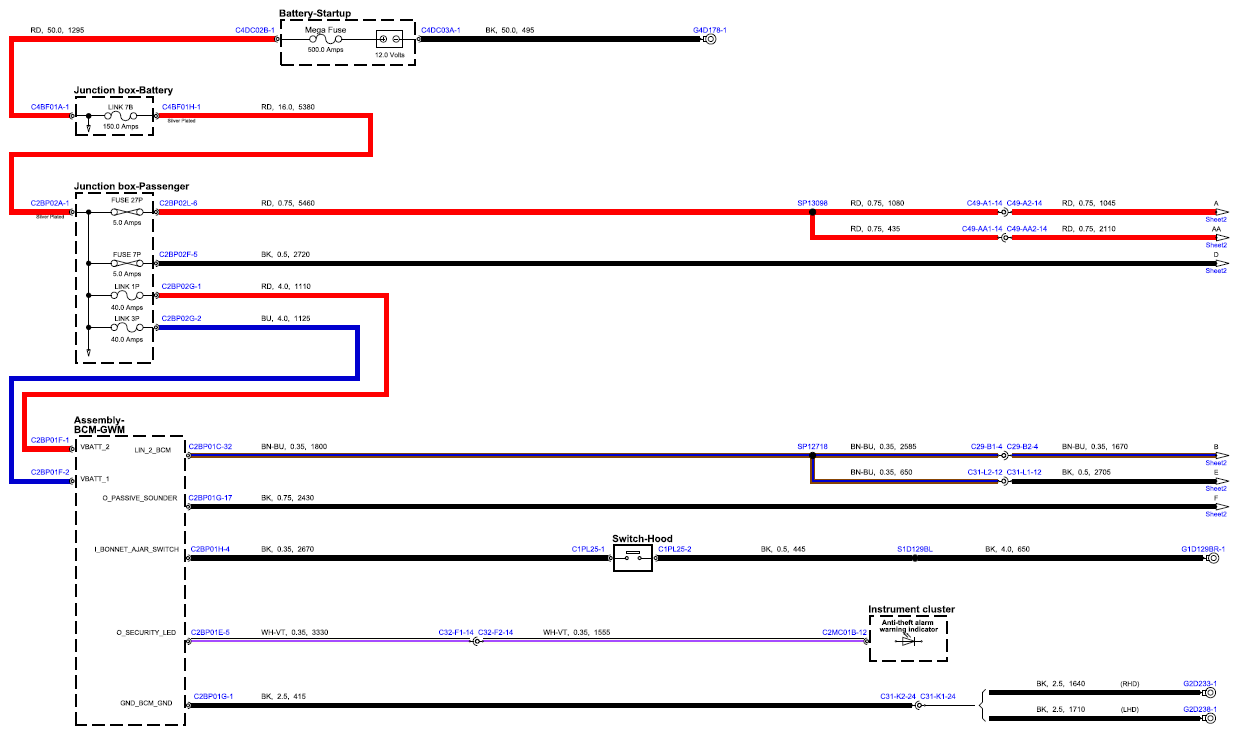

Fig 1: Anti-Theft System Circuit Diagram (Sheet 1)
G15554550Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

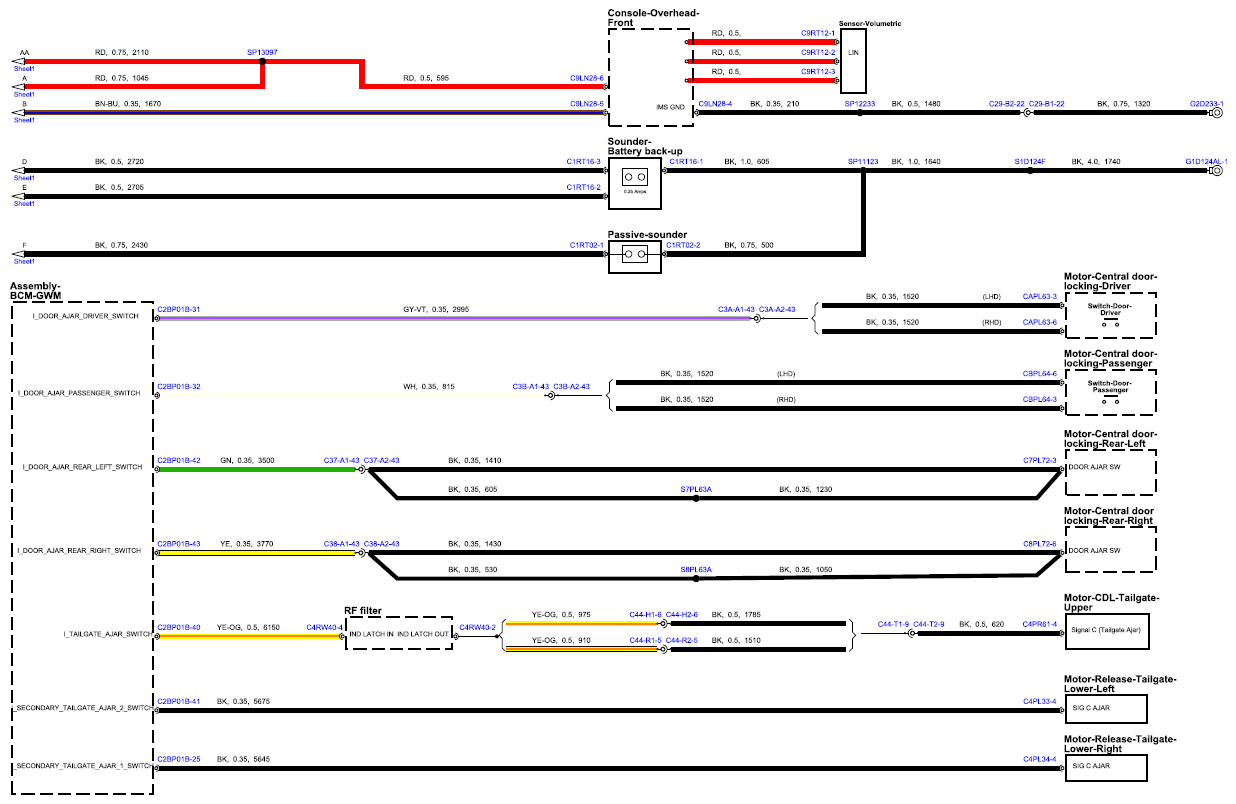

Fig 2: Anti-Theft System Circuit Diagram (Sheet 2)
G15554551Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
