LIN bus

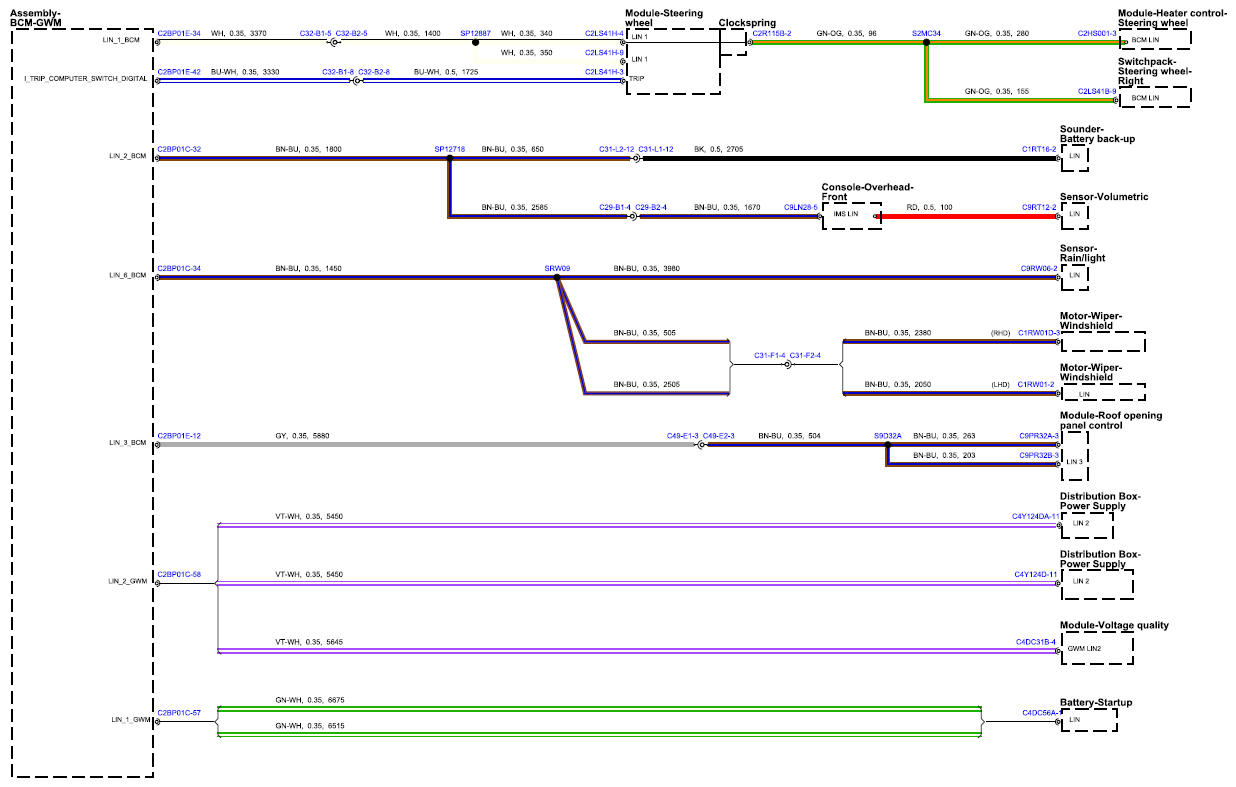

Fig 1: LIN Bus Circuit Diagram (Sheet 1)
G15554546Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

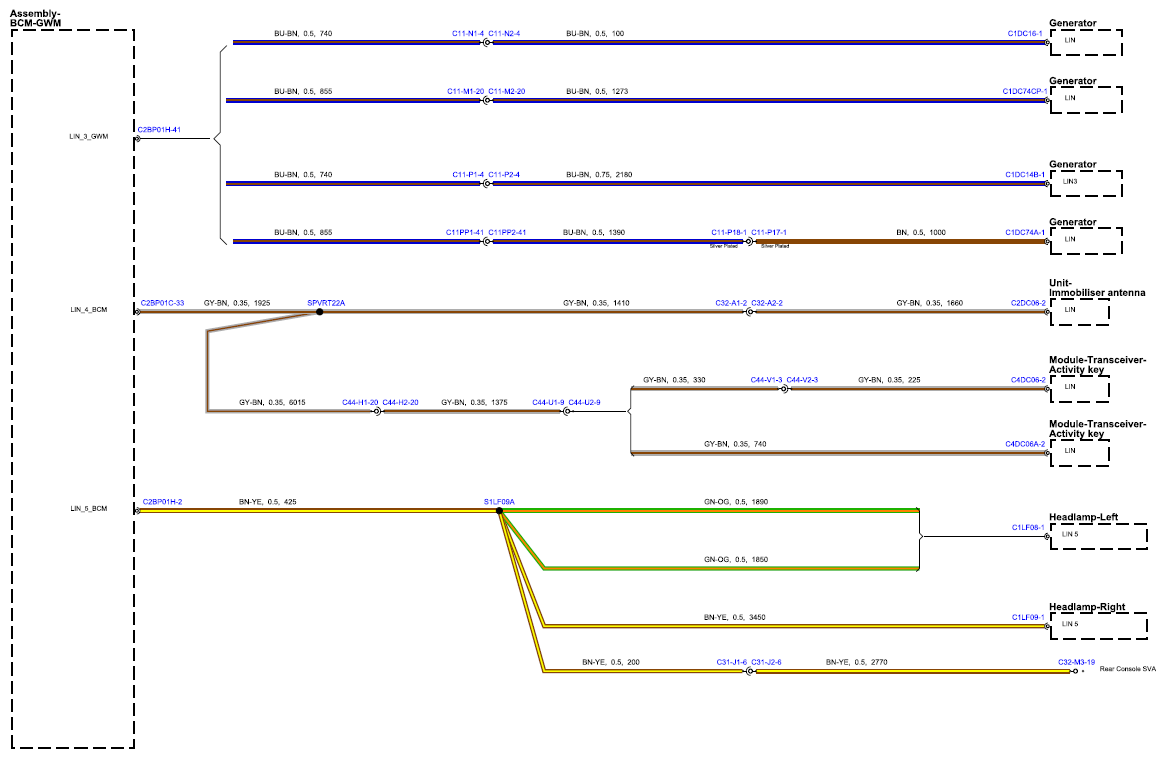

Fig 2: LIN Bus Circuit Diagram (Sheet 2)
G15554547Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

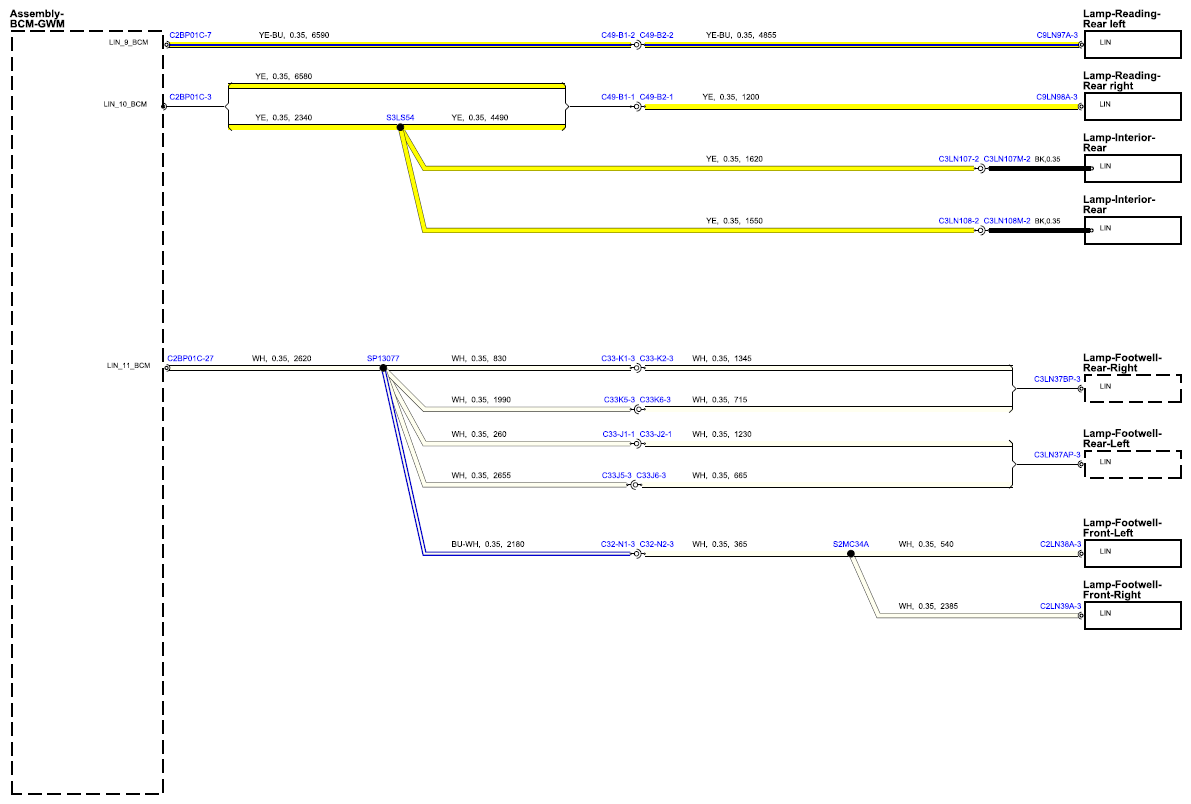

Fig 3: LIN Bus Circuit Diagram (Sheet 3)
G15554548Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
