CAN bus - High speed - Power mode zero systems

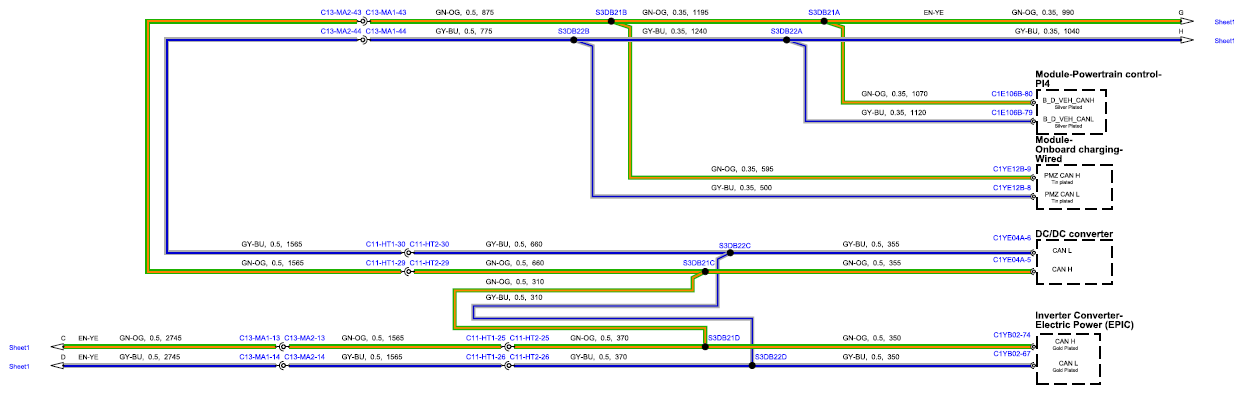

Fig 1: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

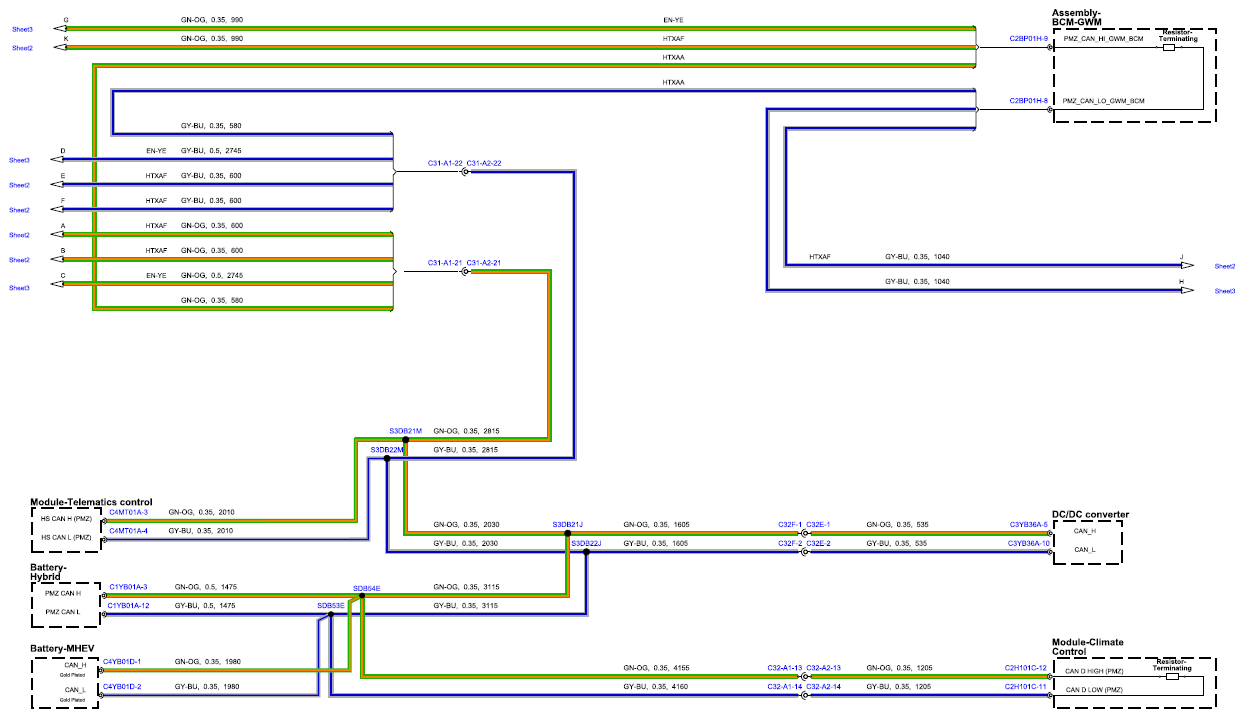

Fig 2: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

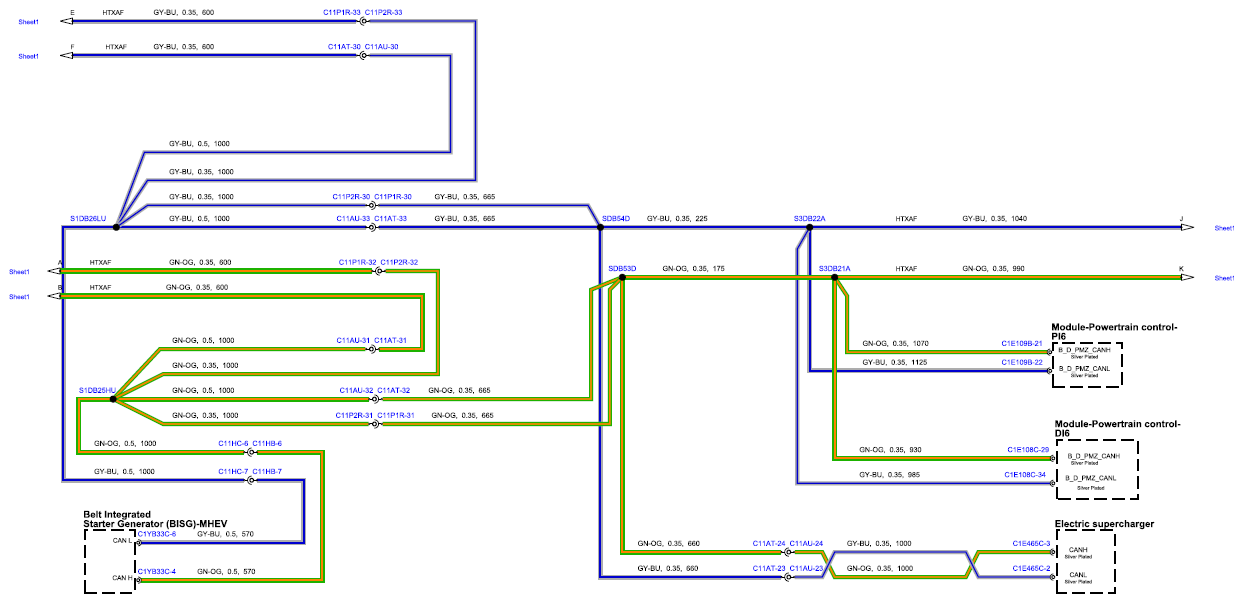

Fig 3: CAN Bus - High Speed - Power Mode Zero Systems Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
