CAN bus - High speed - Chassis systems
CAN bus - High speed - Chassis systems

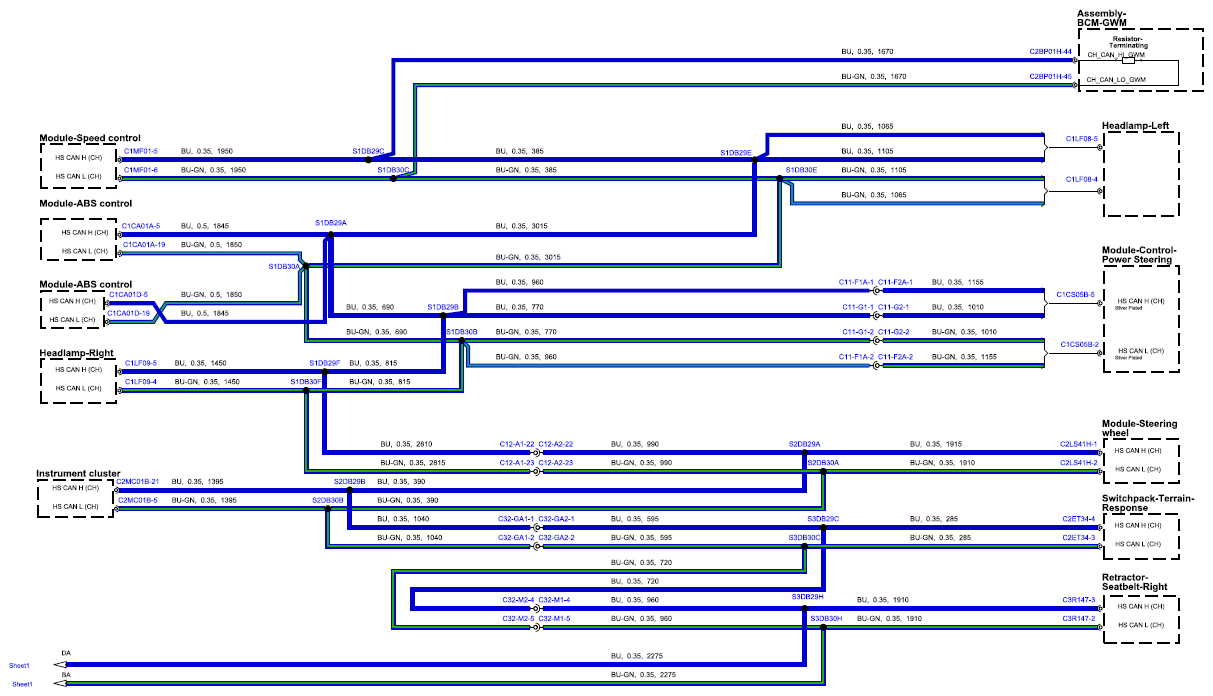

Fig 1: CAN Bus - High Speed - Chassis Systems Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

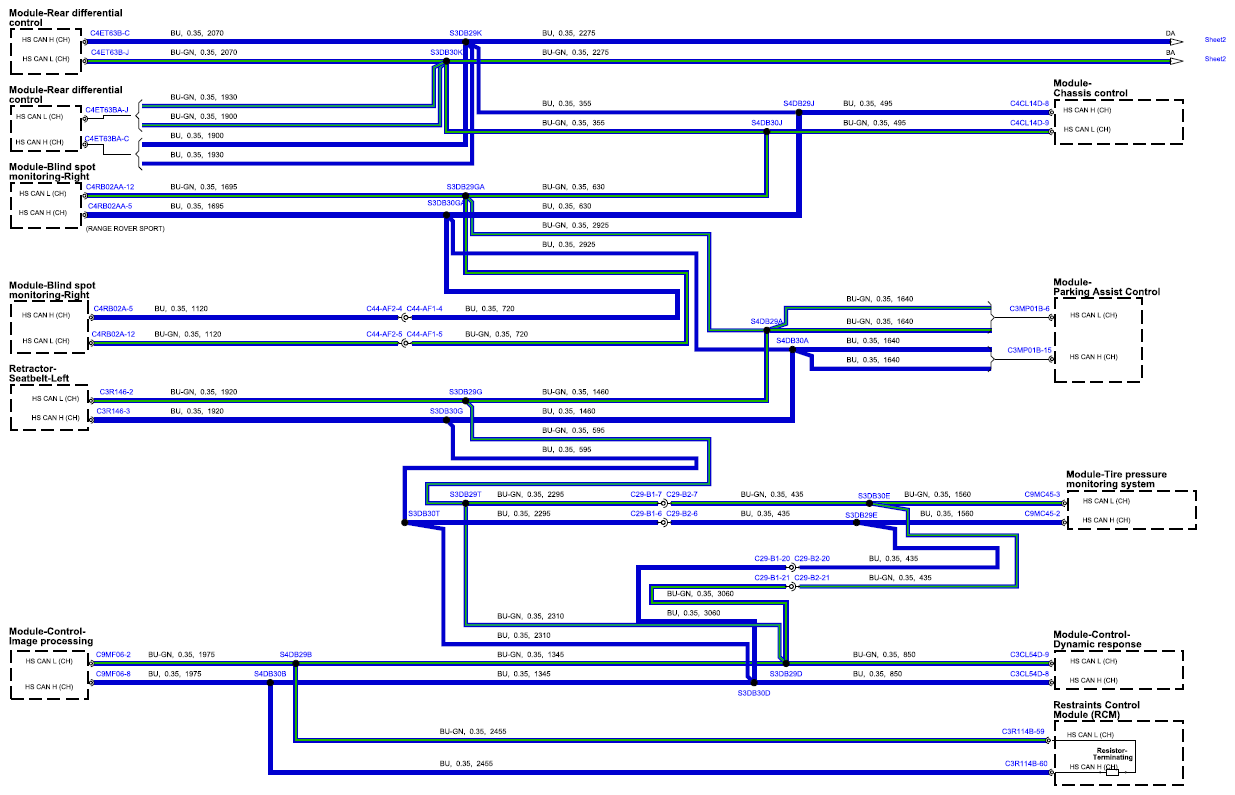

Fig 2: CAN Bus - High Speed - Chassis Systems Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
