CAN bus - High speed - Powertrain systems

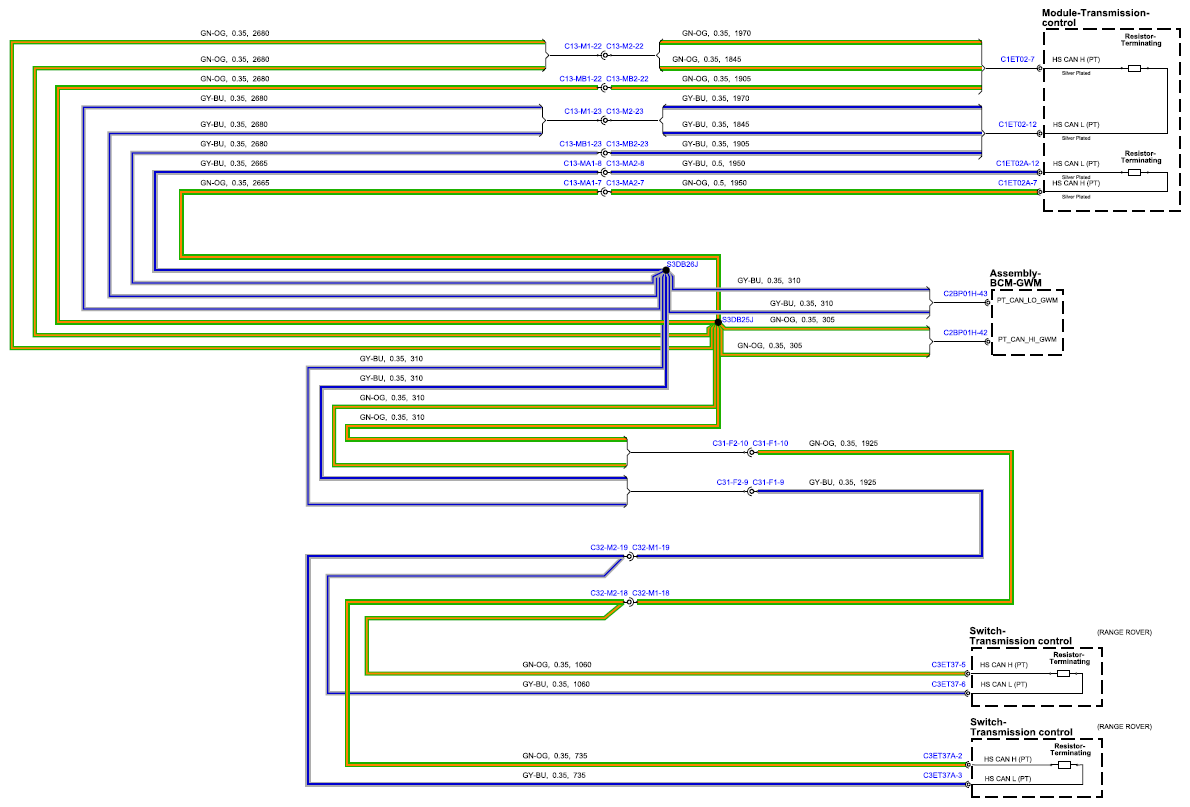

Fig 1: CAN Bus - High Speed - Powertrain Systems Circuit Diagram

G15554537

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
