Map and Courtesy

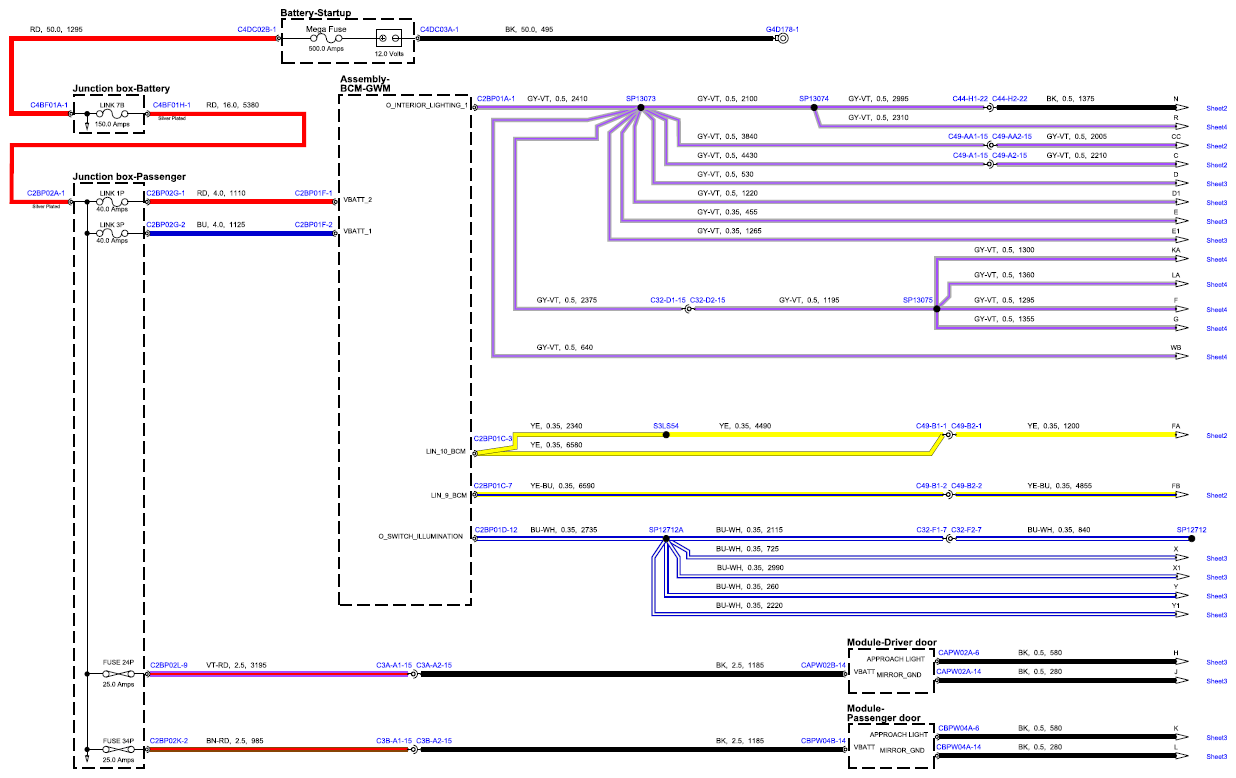

Fig 1: Map And Courtesy Circuit Diagram (Sheet 1)

G15554525

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

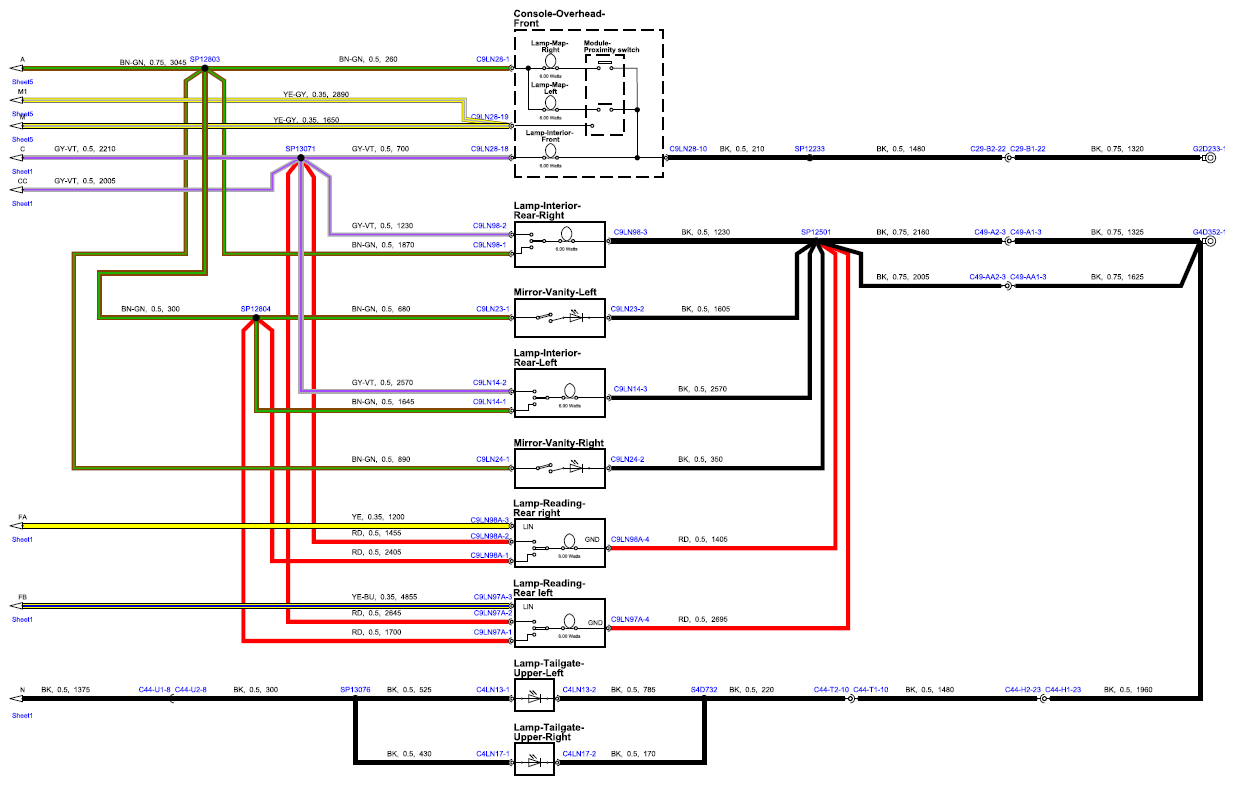

Fig 2: Map And Courtesy Circuit Diagram (Sheet 2)

G15554526

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

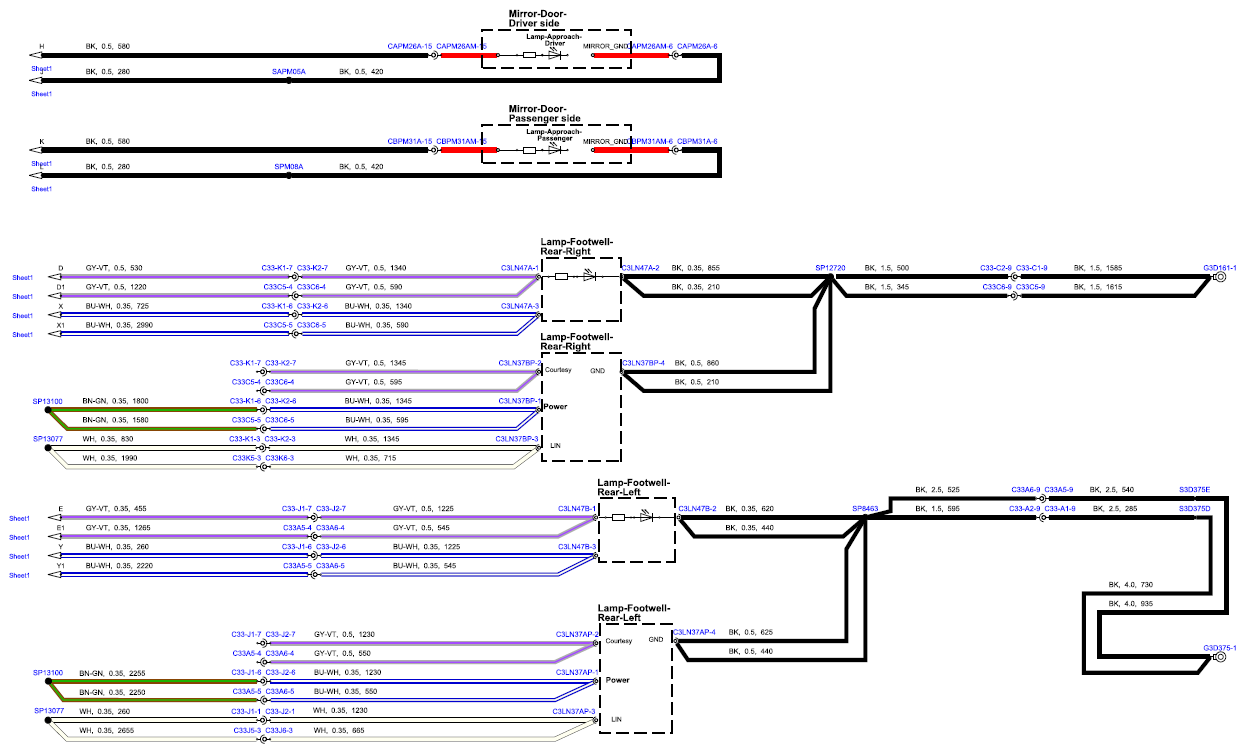

Fig 3: Map And Courtesy Circuit Diagram (Sheet 3)

G15554527

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

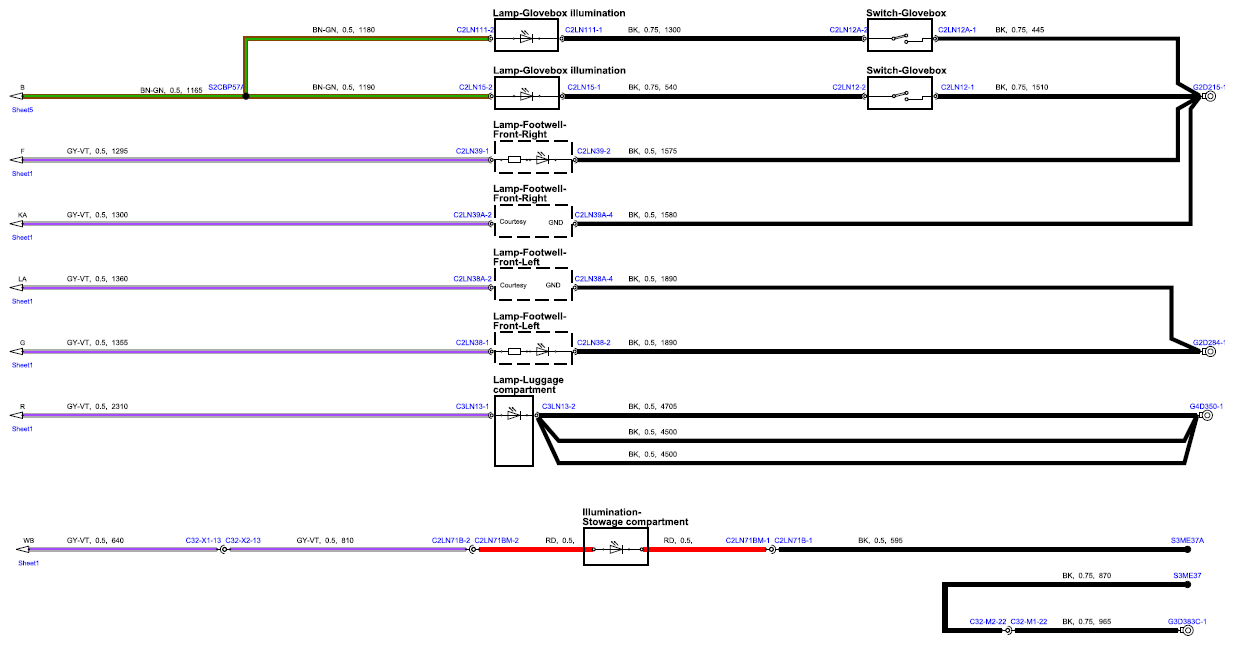

Fig 4: Map And Courtesy Circuit Diagram (Sheet 4)

G15554528

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 5: Map And Courtesy Circuit Diagram (Sheet 5)

G15554529

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
