Entry illumination

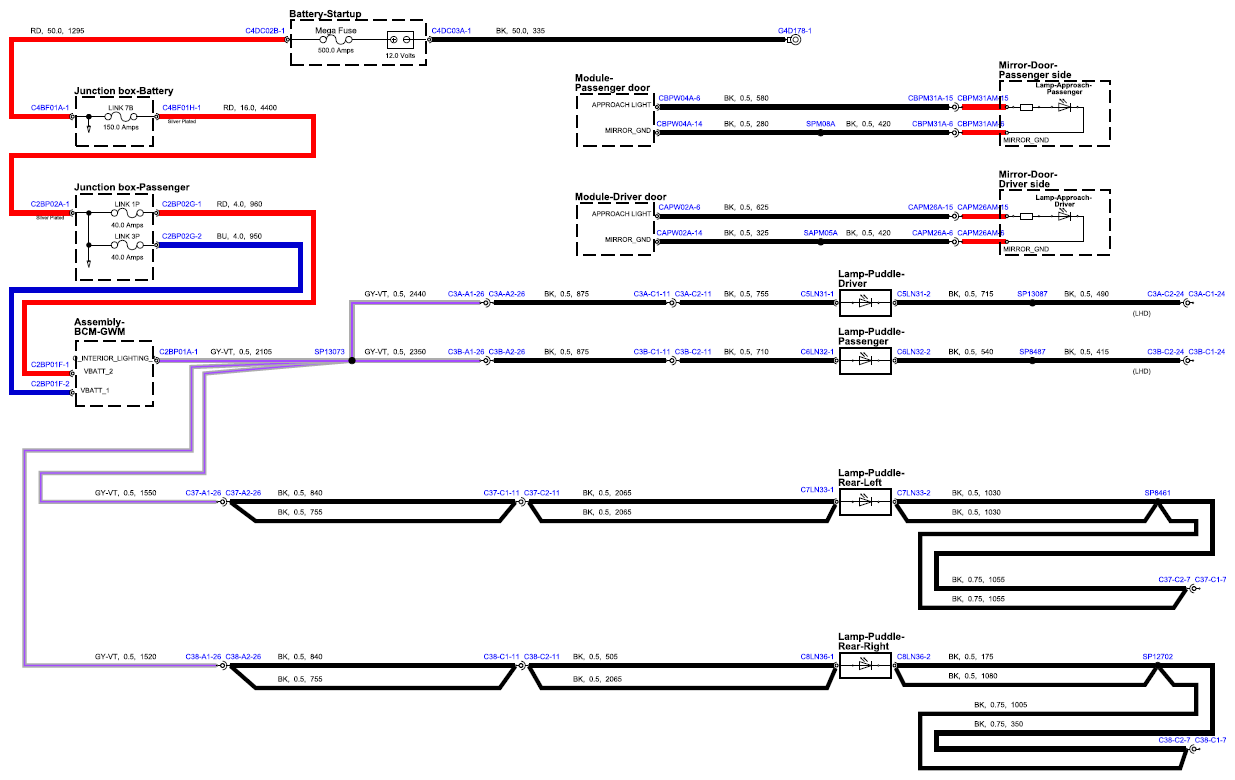

Fig 1: Entry Illumination Circuit Diagram (Sheet 1)
G15554530Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

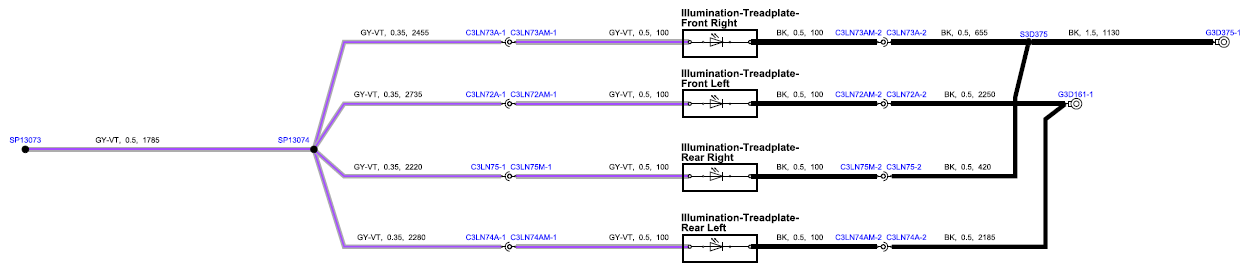

Fig 2: Entry Illumination Circuit Diagram (Sheet 2)
G15554531Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
