Turn signal indicators and hazard flashers

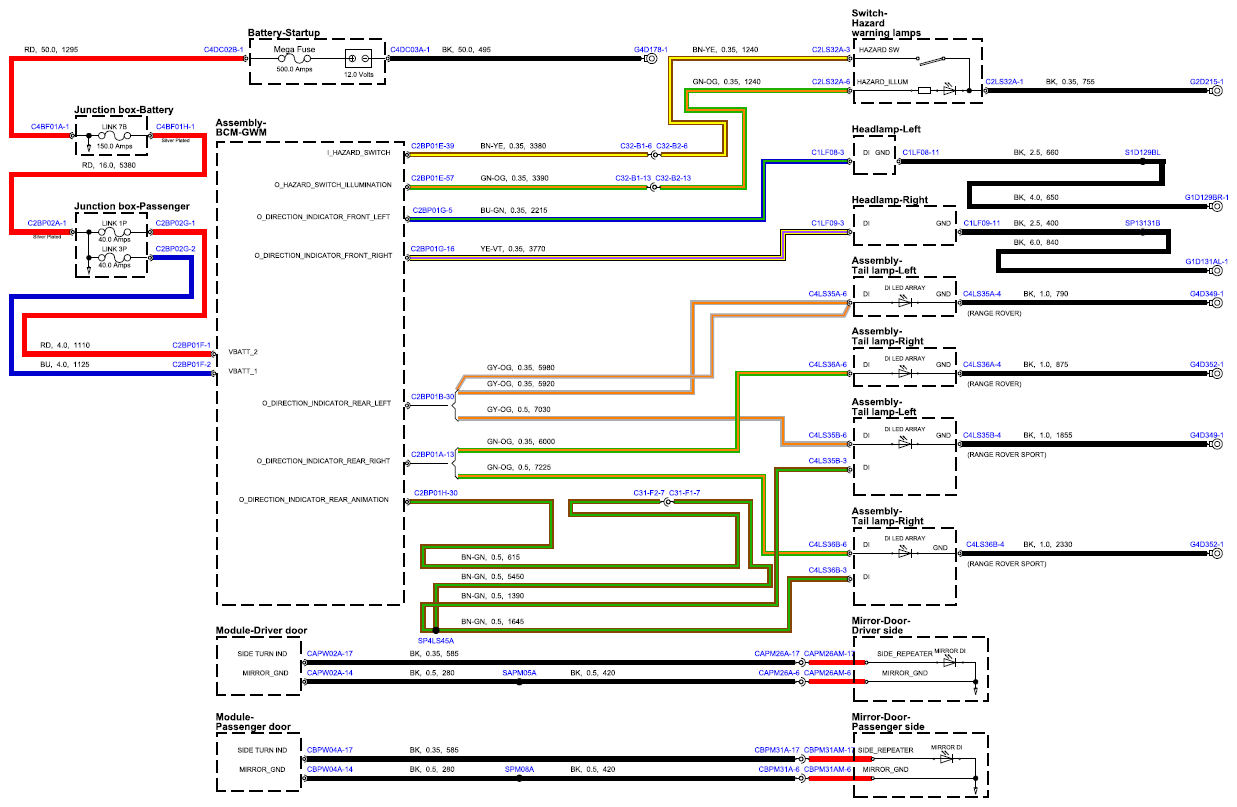

Fig 1: Turn Signal Indicators And Hazard Flashers Circuit Diagram

G15554506

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
