Trailer socket - NAS

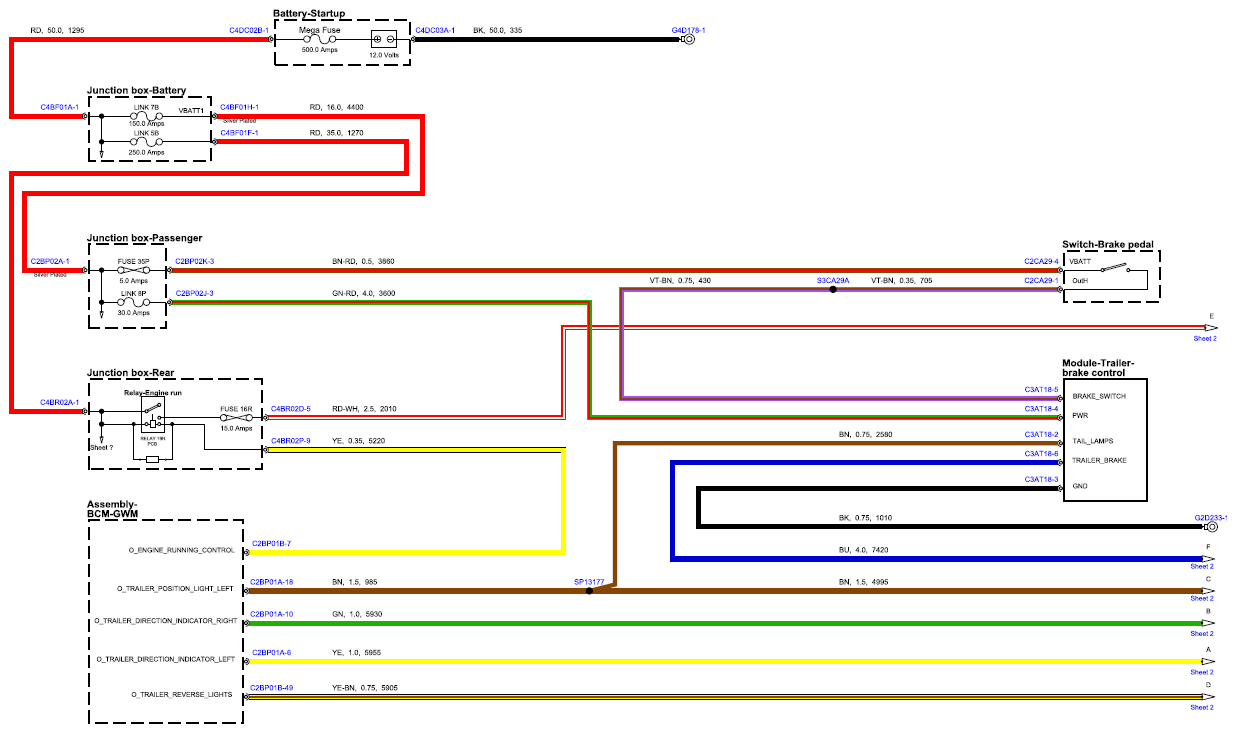

Fig 1: Trailer Socket - NAS Circuit Diagram (Sheet 1)
G15554512Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

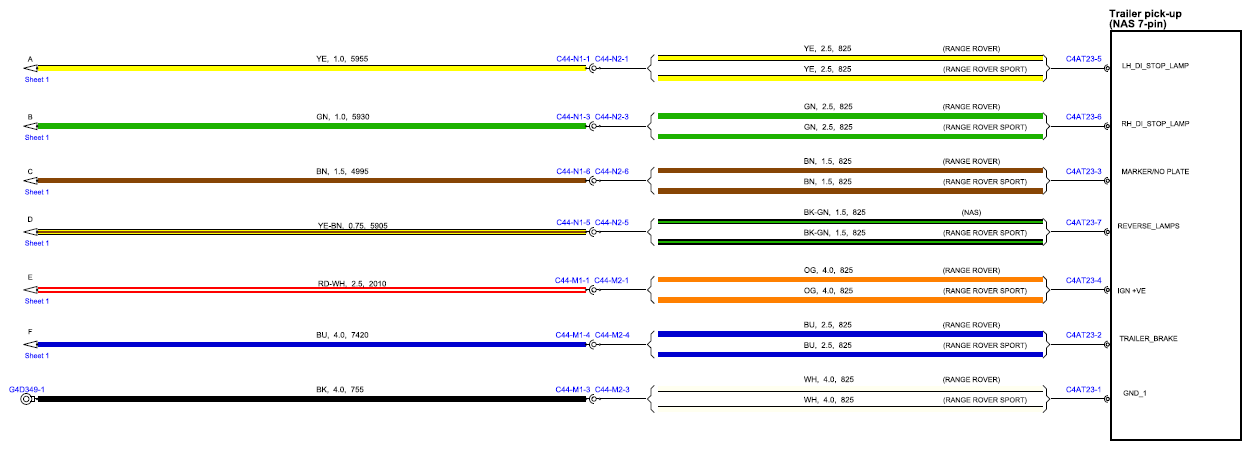

Fig 2: Trailer Socket - NAS Circuit Diagram (Sheet 2)
G15554513Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
