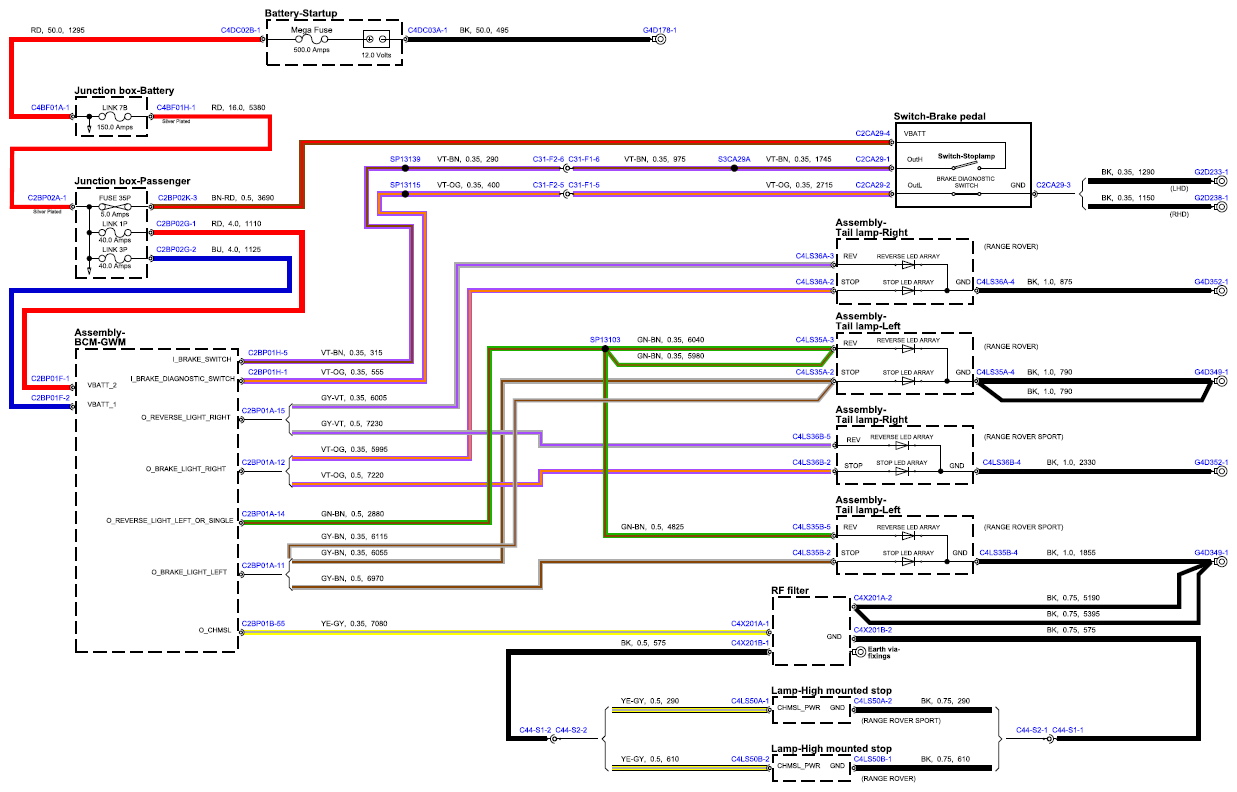

Home >> Land Rover >> 2019 >> Range Rover Sport Supercharged Dynamic >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover Sport L494 >> 417-01 Exterior Lighting >> Brake and reverse lamps
