Home >> Land Rover >> 2019 >> Range Rover Sport Supercharged Dynamic >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Wiring Diagrams -- Range Rover Sport L494 >> 417-01 Exterior Lighting >> 7-seat vehicles

7-seat vehicles

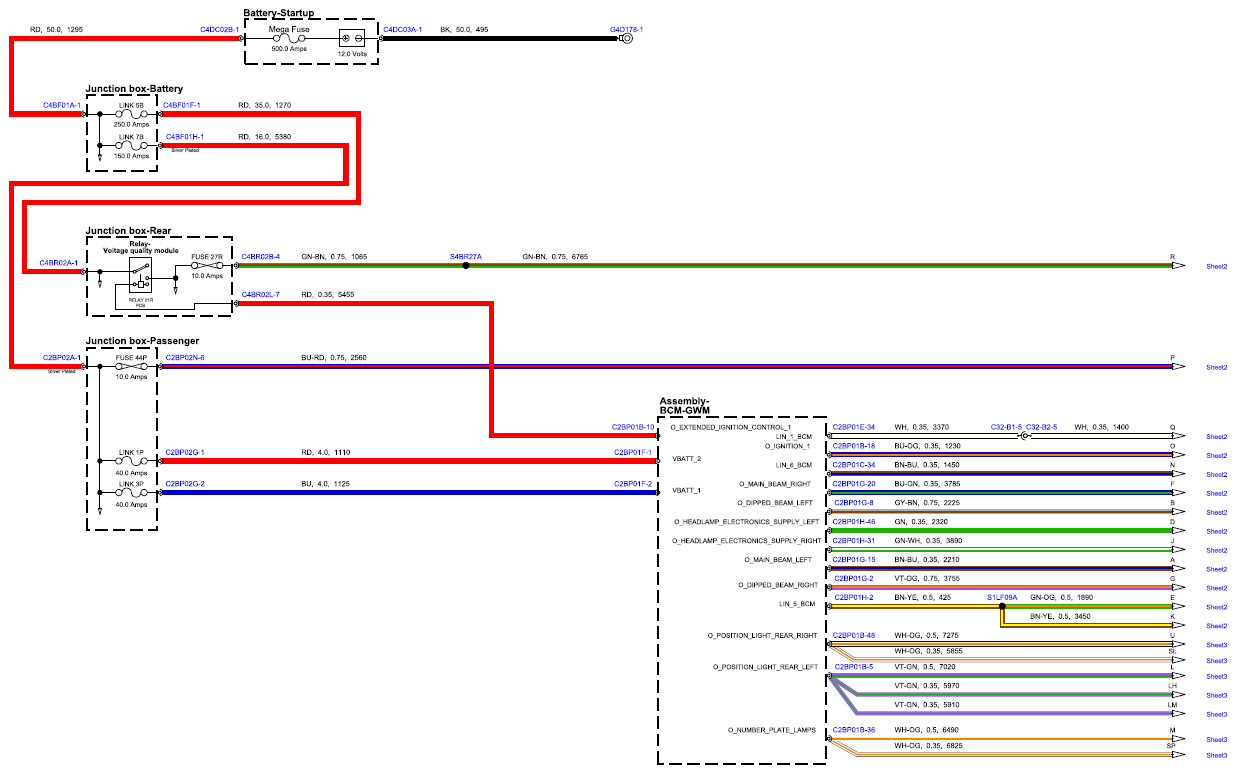

Fig 1: 7-Seat Vehicles Circuit Diagram (Sheet 1)
G15554503Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

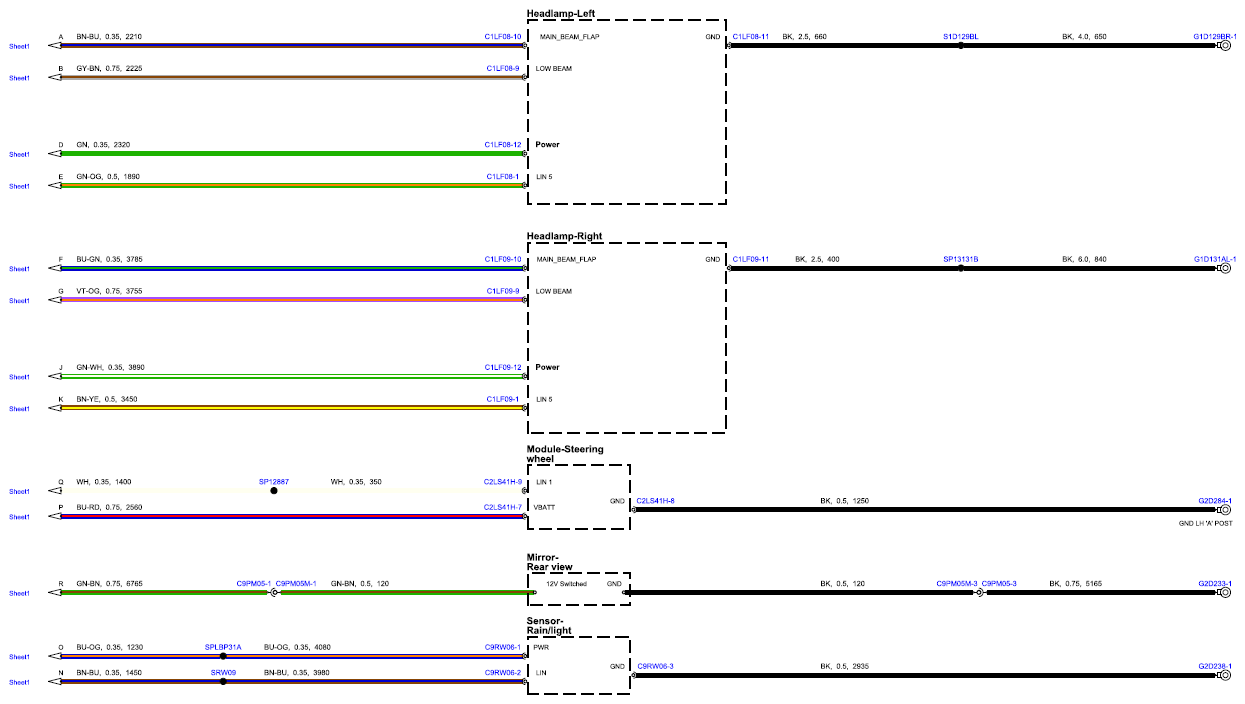

Fig 2: 7-Seat Vehicles Circuit Diagram (Sheet 2)
G15554504Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

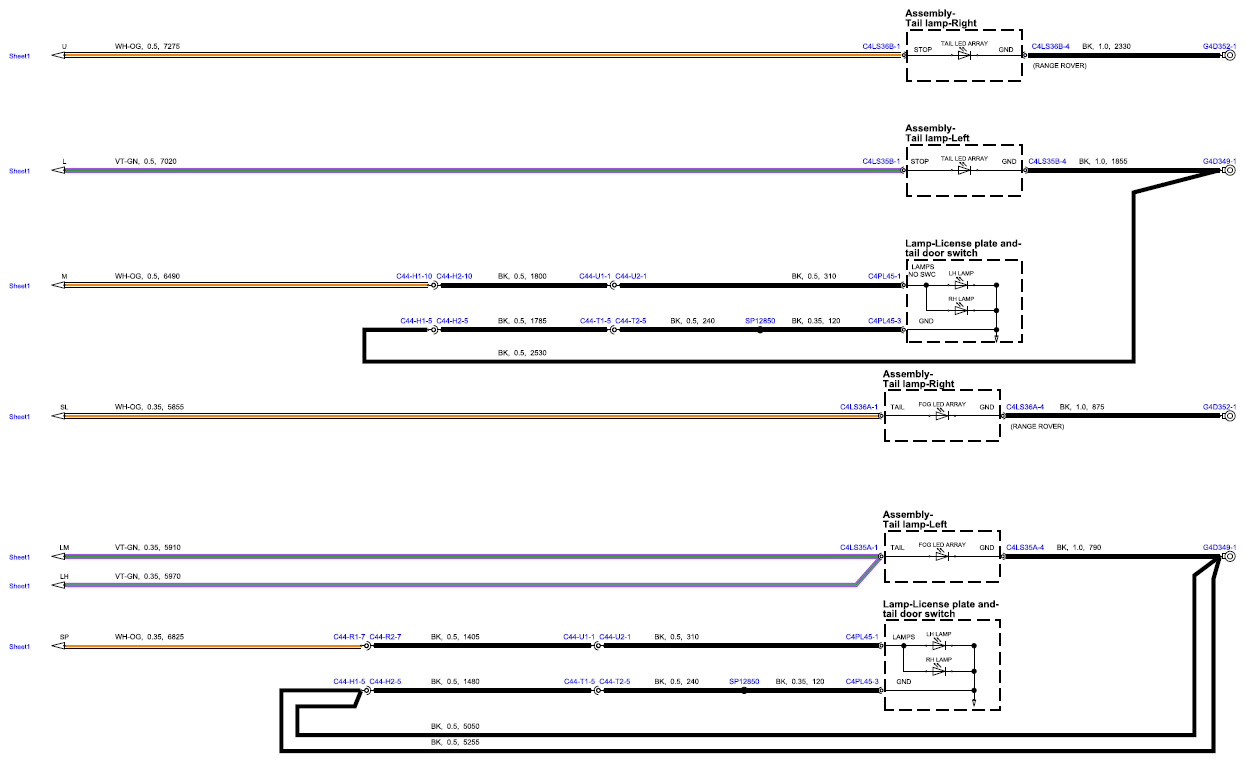

Fig 3: 7-Seat Vehicles Circuit Diagram (Sheet 3)
G15554505Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
