5-seat vehicles

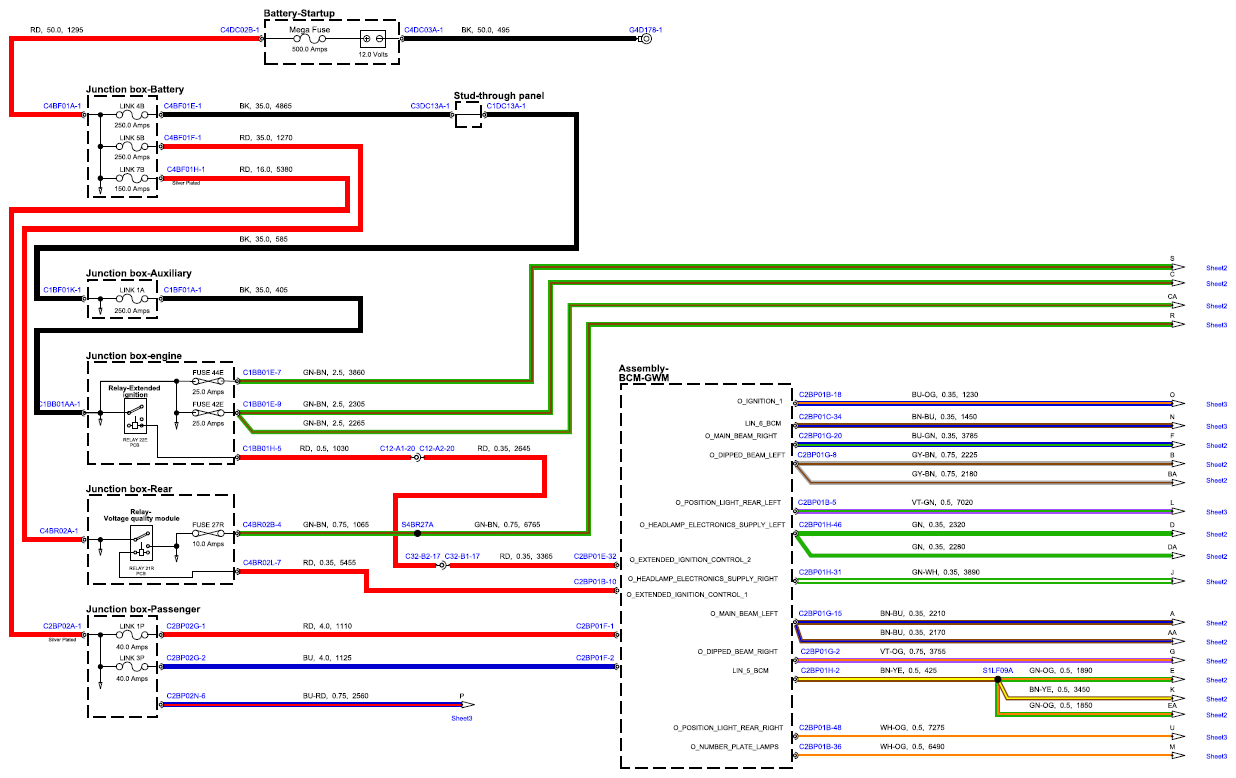

Fig 1: 5-Seat Vehicles Circuit Diagram (Sheet 1)

G15554499

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

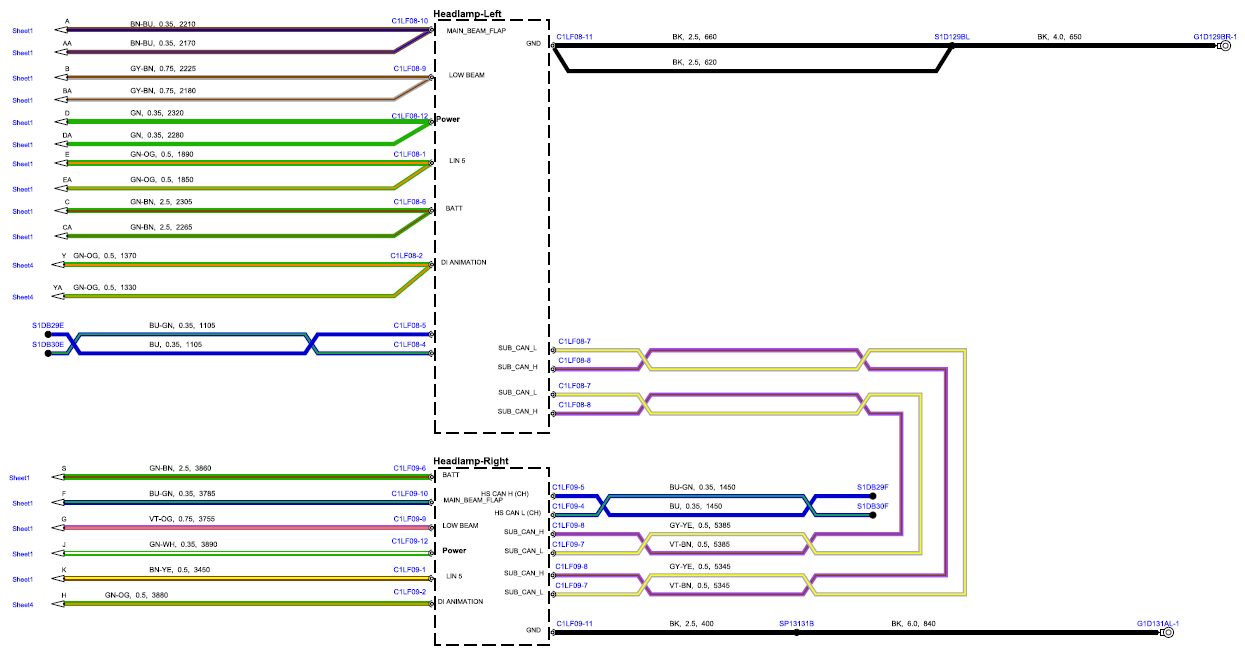

Fig 2: 5-Seat Vehicles Circuit Diagram (Sheet 2)

G15554500

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

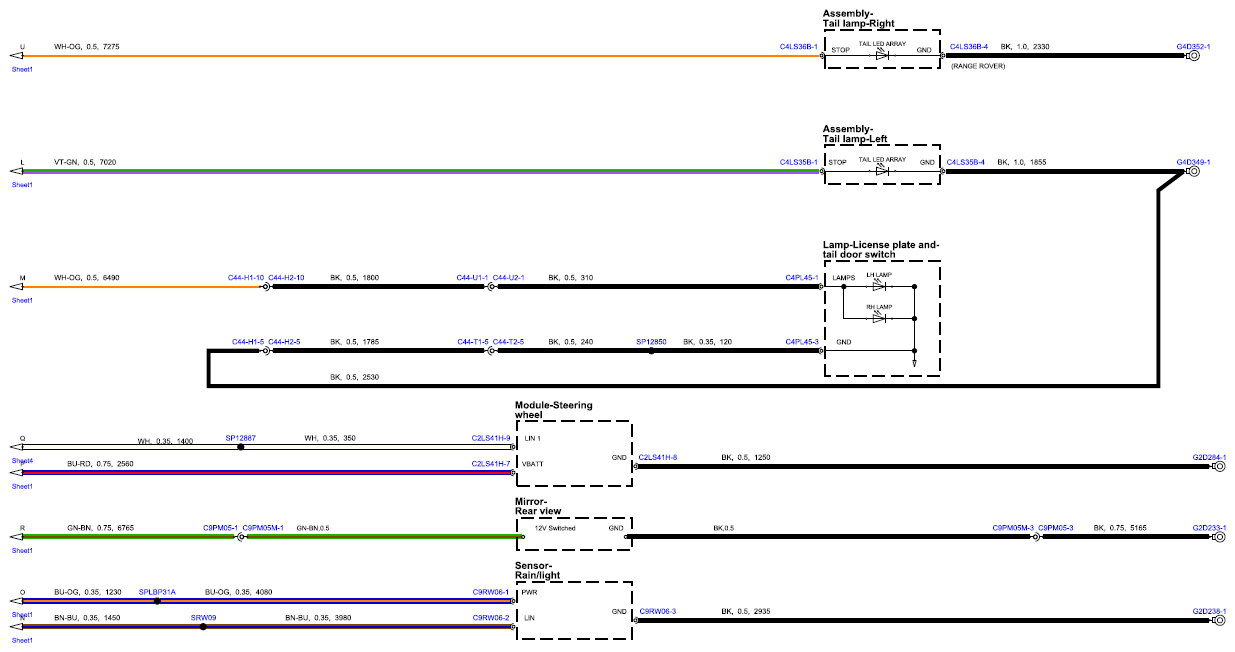

Fig 3: 5-Seat Vehicles Circuit Diagram (Sheet 3)

G15554501

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 4: 5-Seat Vehicles Circuit Diagram (Sheet 4)

G15554502

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
