OEM Wiring Diagrams -- Range Rover Sport L494
>>
415-00 Information And Entertainment System
>>
8-Speaker system
8-Speaker system

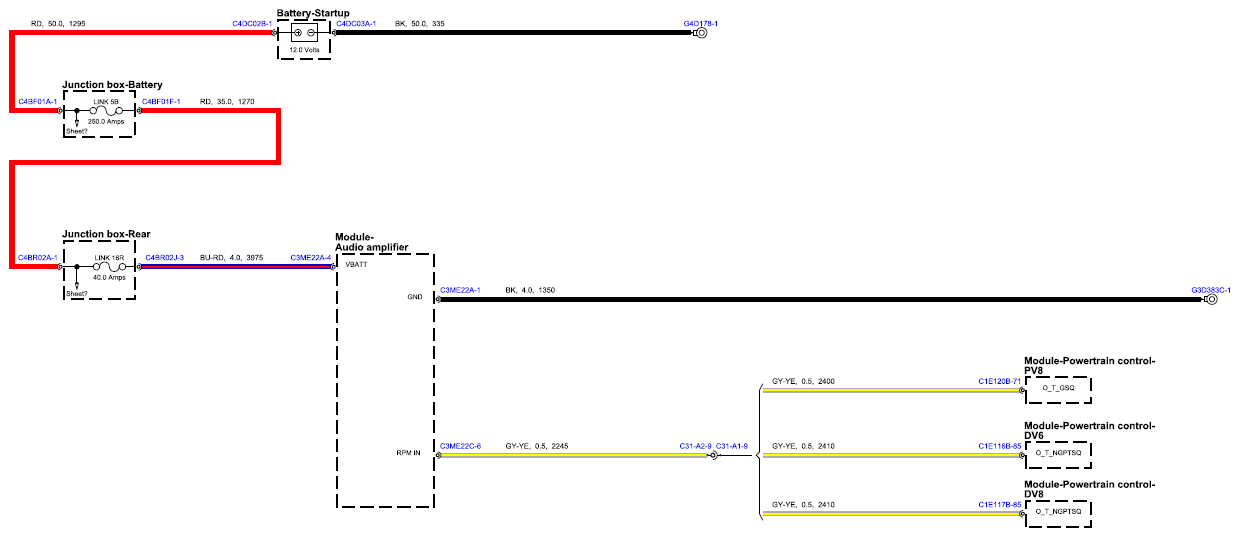

Fig 1: 8-Speaker System Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

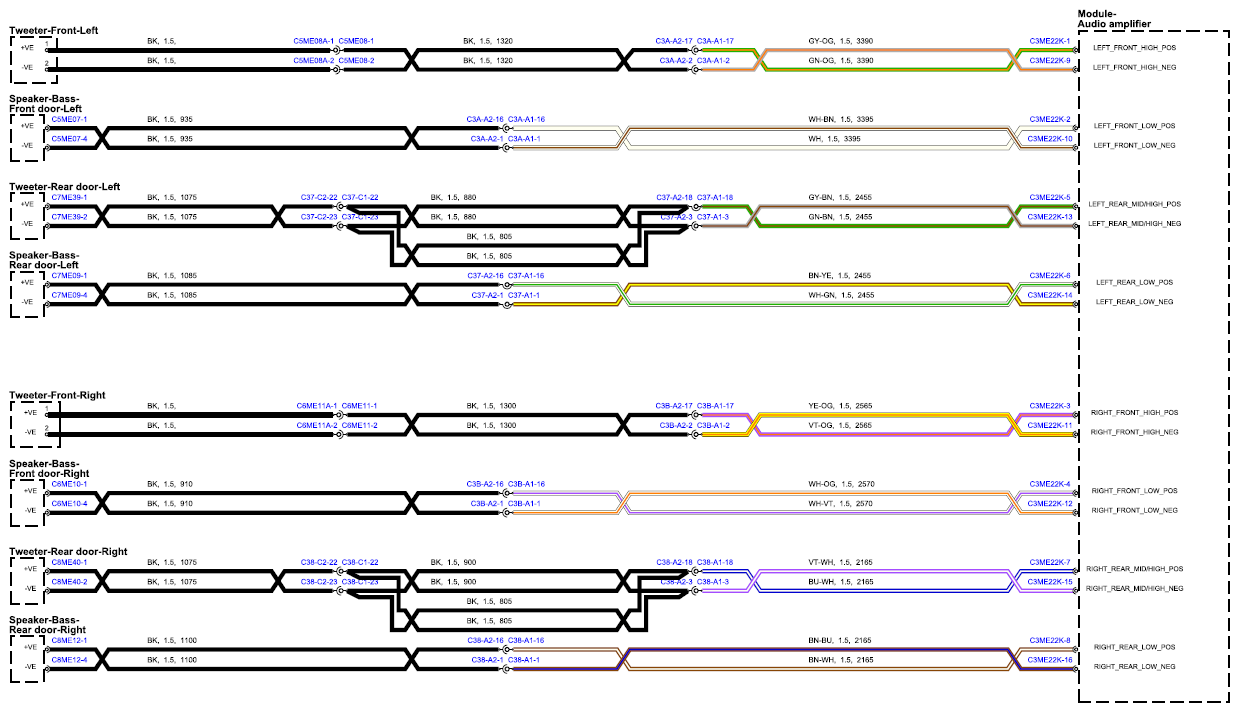

Fig 2: 8-Speaker System Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
