23-Speaker system

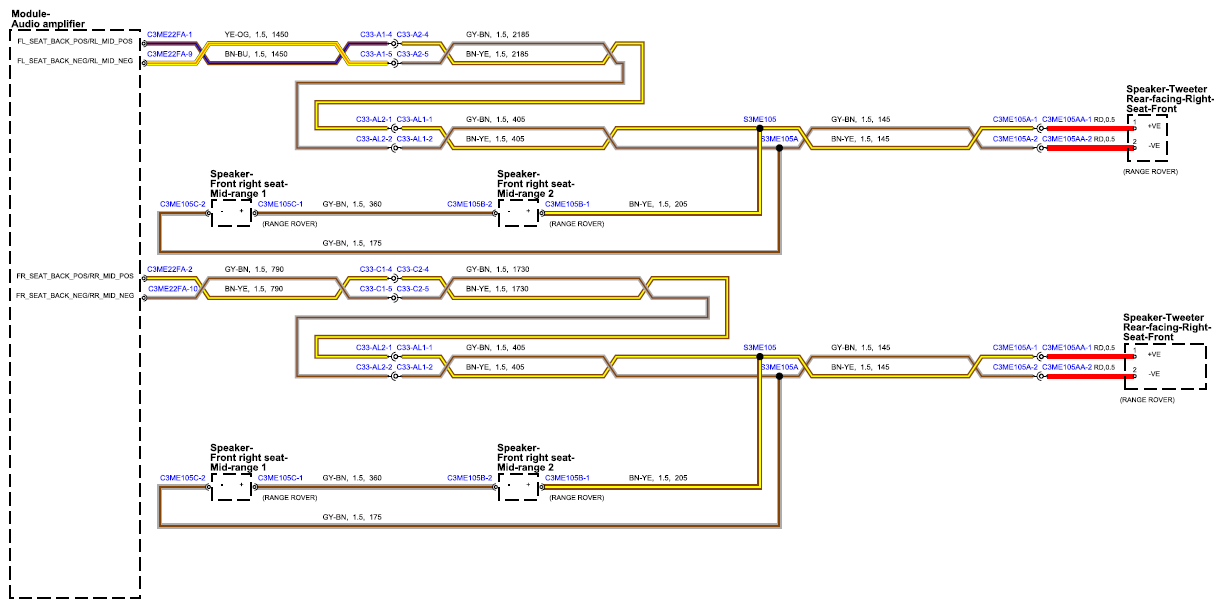

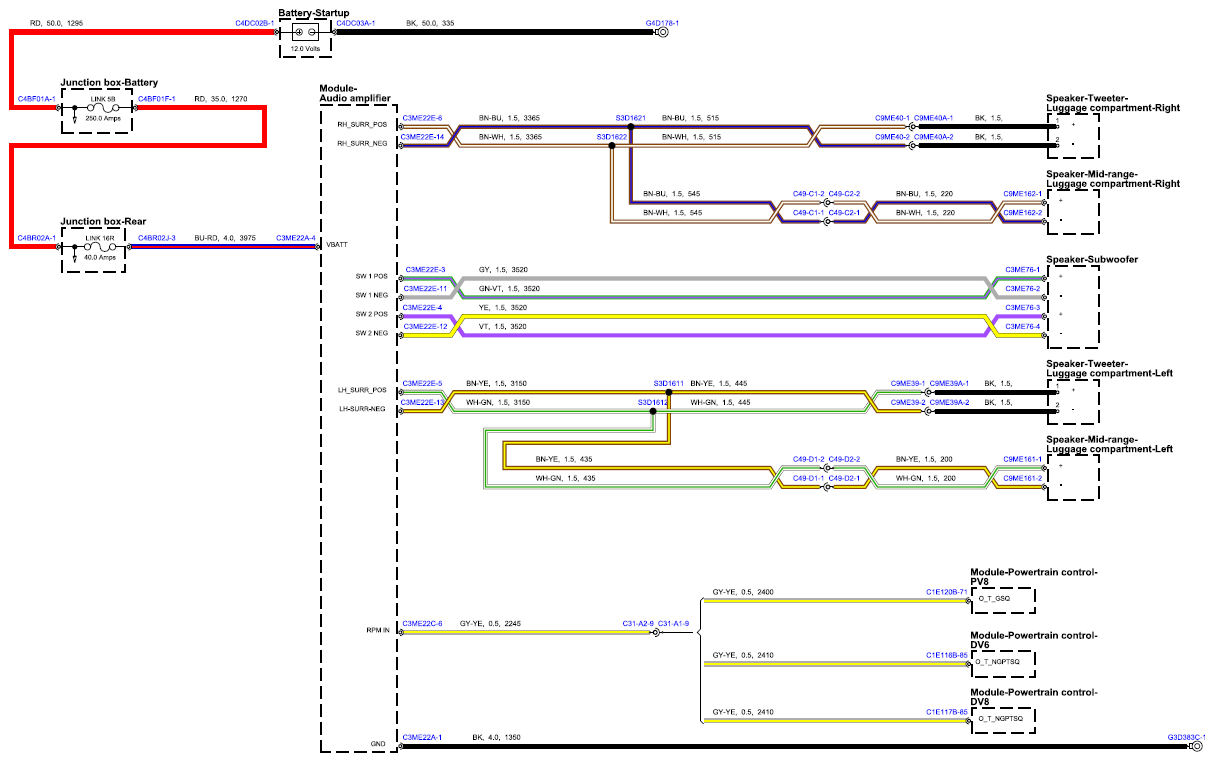

Fig 1: 23-Speaker System Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

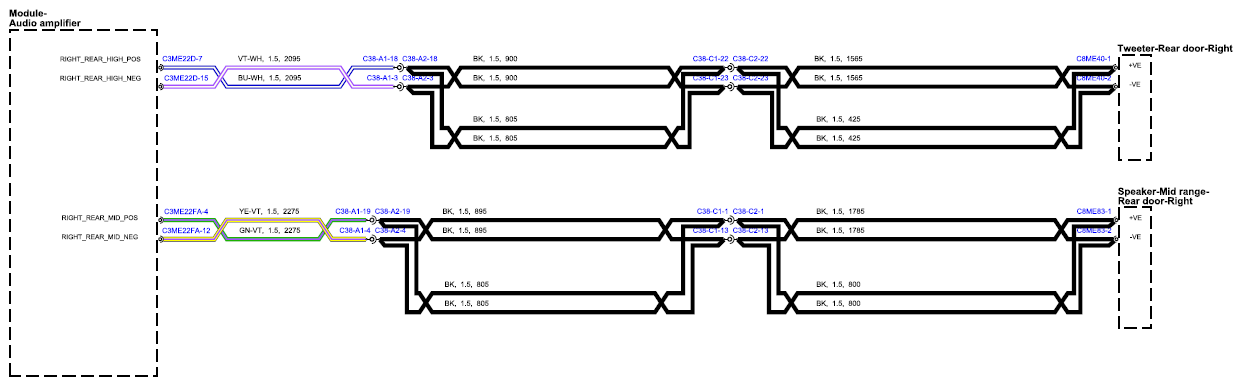

Fig 2: 23-Speaker System Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

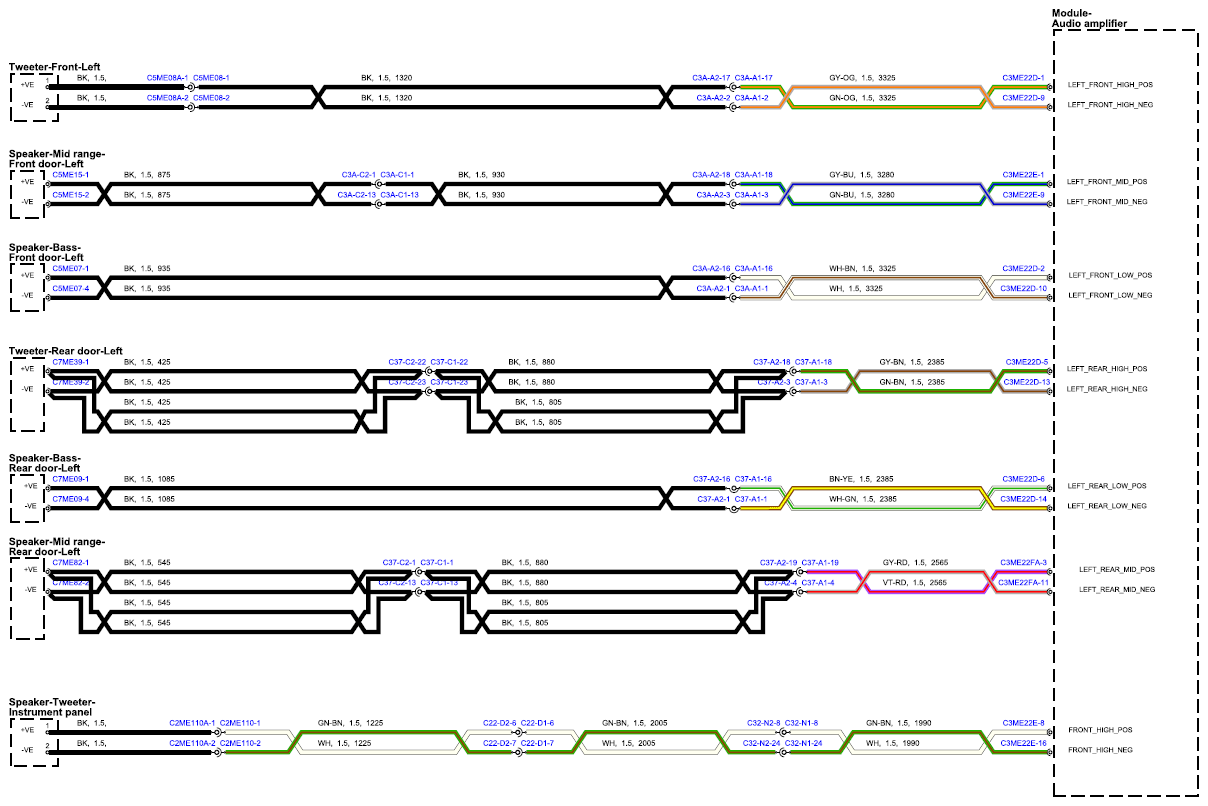

Fig 3: 23-Speaker System Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

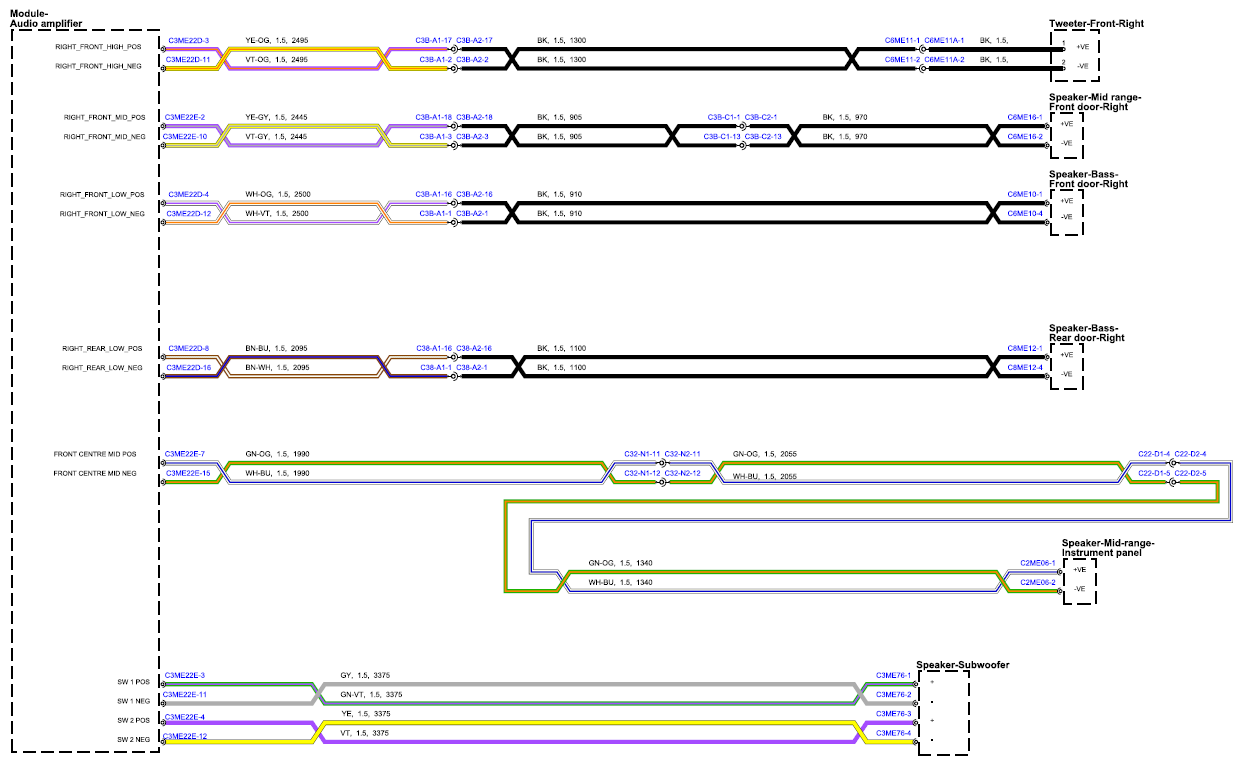

Fig 4: 23-Speaker System Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

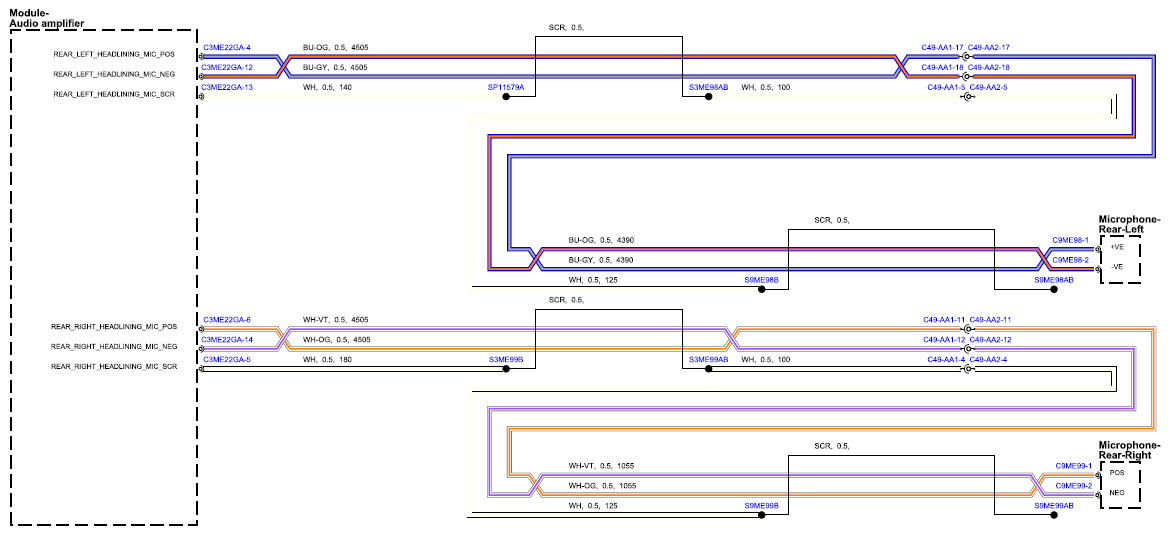

Fig 5: 23-Speaker System Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

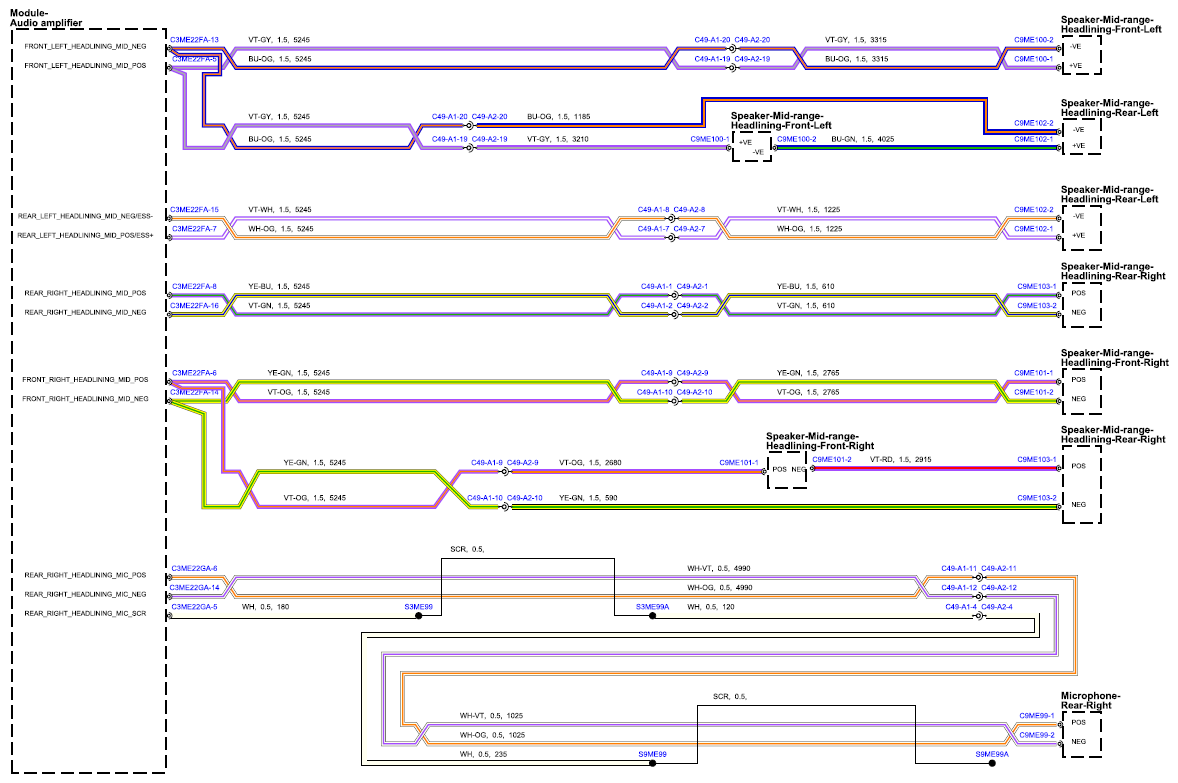

Fig 6: 23-Speaker System Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

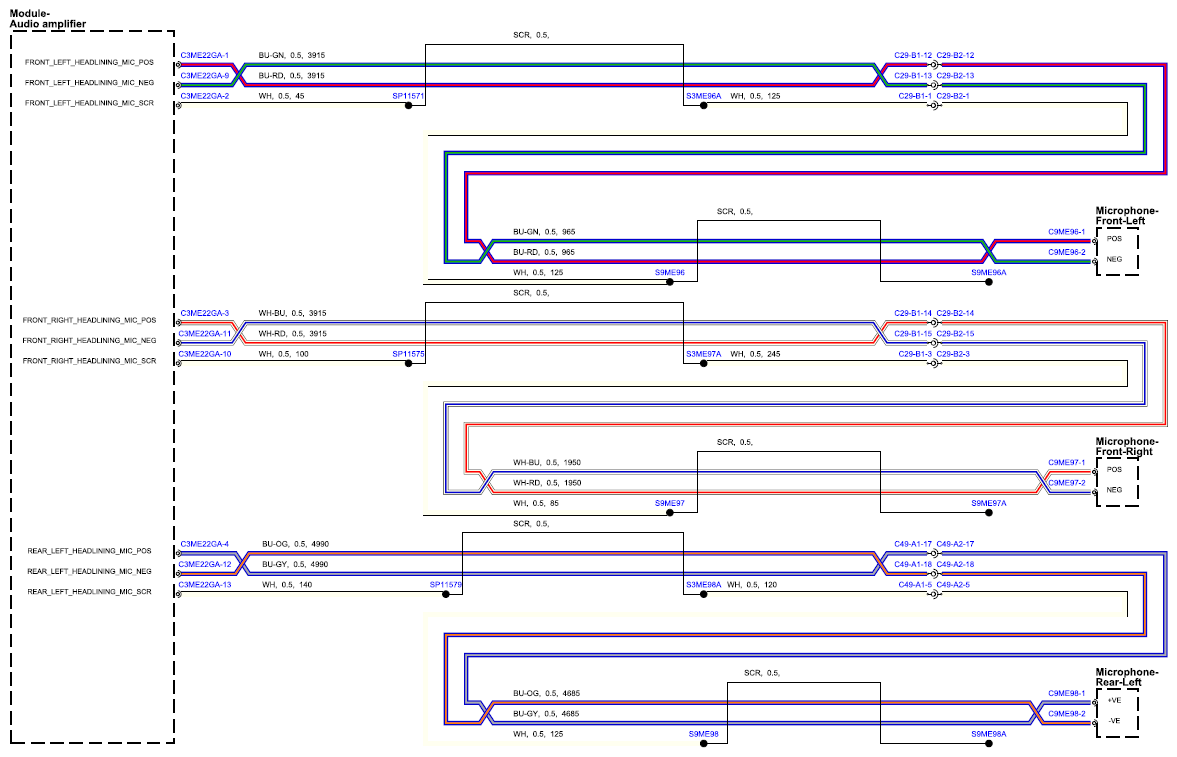

Fig 7: 23-Speaker System Circuit Diagram (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

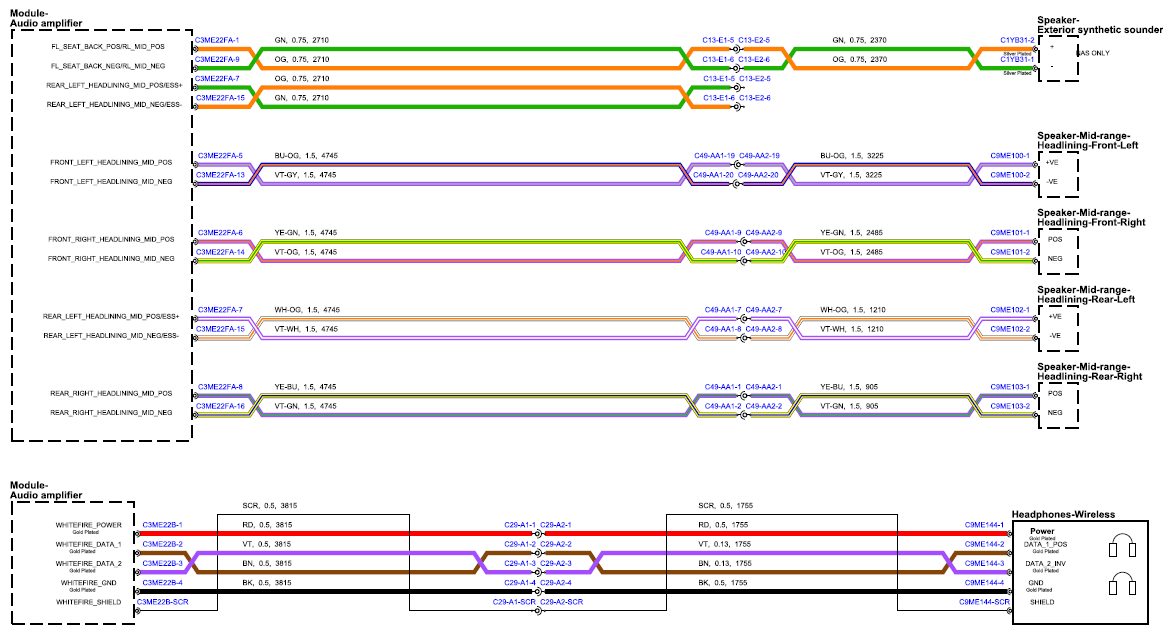

Fig 8: 23-Speaker System Circuit Diagram (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: 23-Speaker System Circuit Diagram (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
