414-02 Generator And Regulator: Pi6

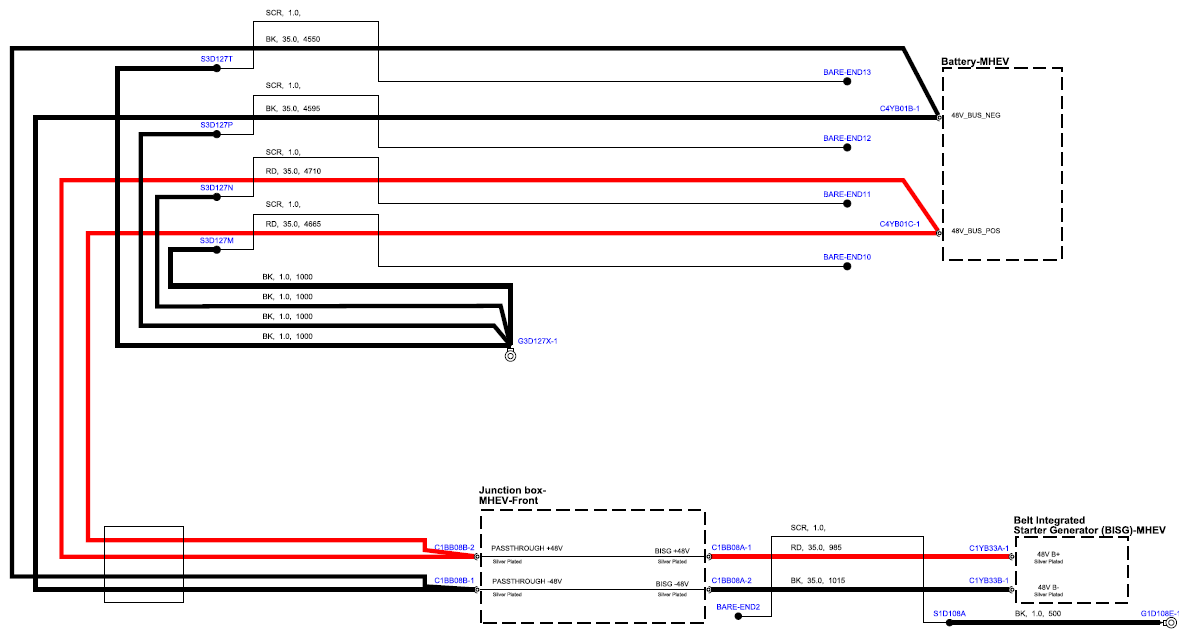

Fig 1: Generator And Regulator Circuit Diagram (PI6)

G15554462

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
