414-02 Generator And Regulator: Pi4

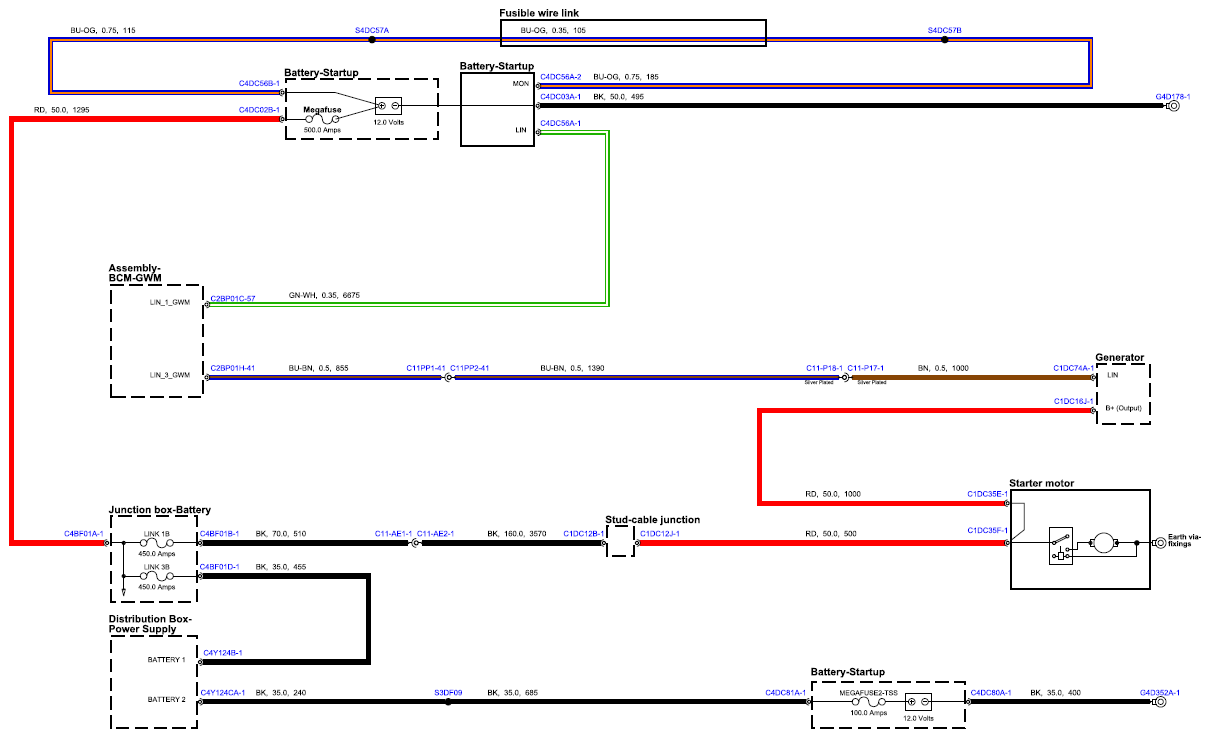

Fig 1: Generator And Regulator Circuit Diagram (PI4)

G15554461

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
