414-02 Generator And Regulator: Di6

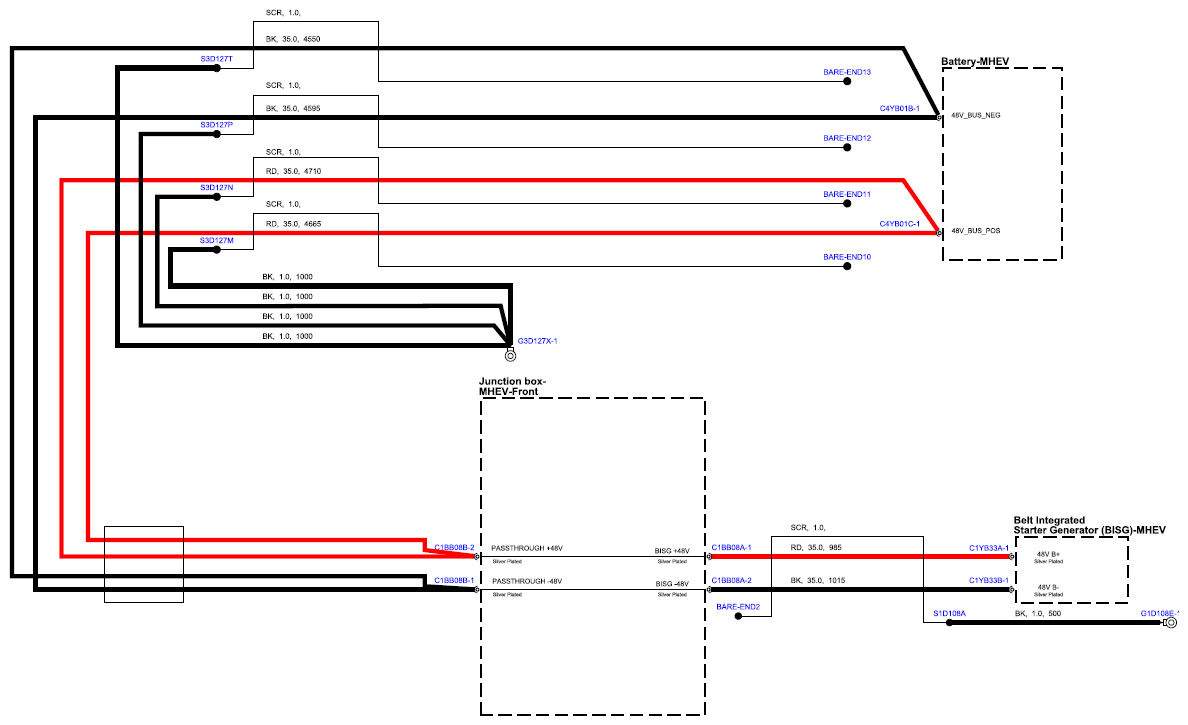

Fig 1: Generator And Regulator Circuit Diagram (DI6)

G15554458

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
