414-02 Generator And Regulator: DV6

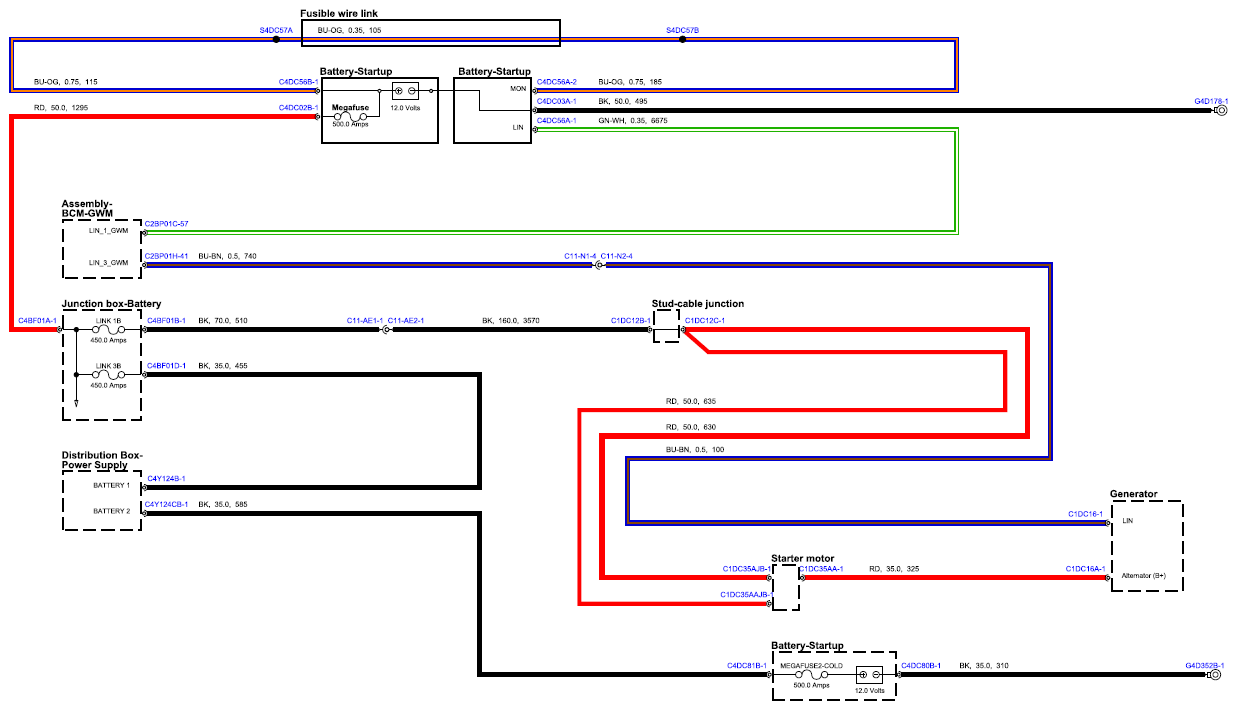

Fig 1: Generator And Regulator Circuit Diagram (DV6)

G15554459

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
