OEM Wiring Diagrams -- Range Rover Sport L494
>>
414-01B Battery, Mounting And Cables (MHEV)
>>
Battery junction box
Battery junction box

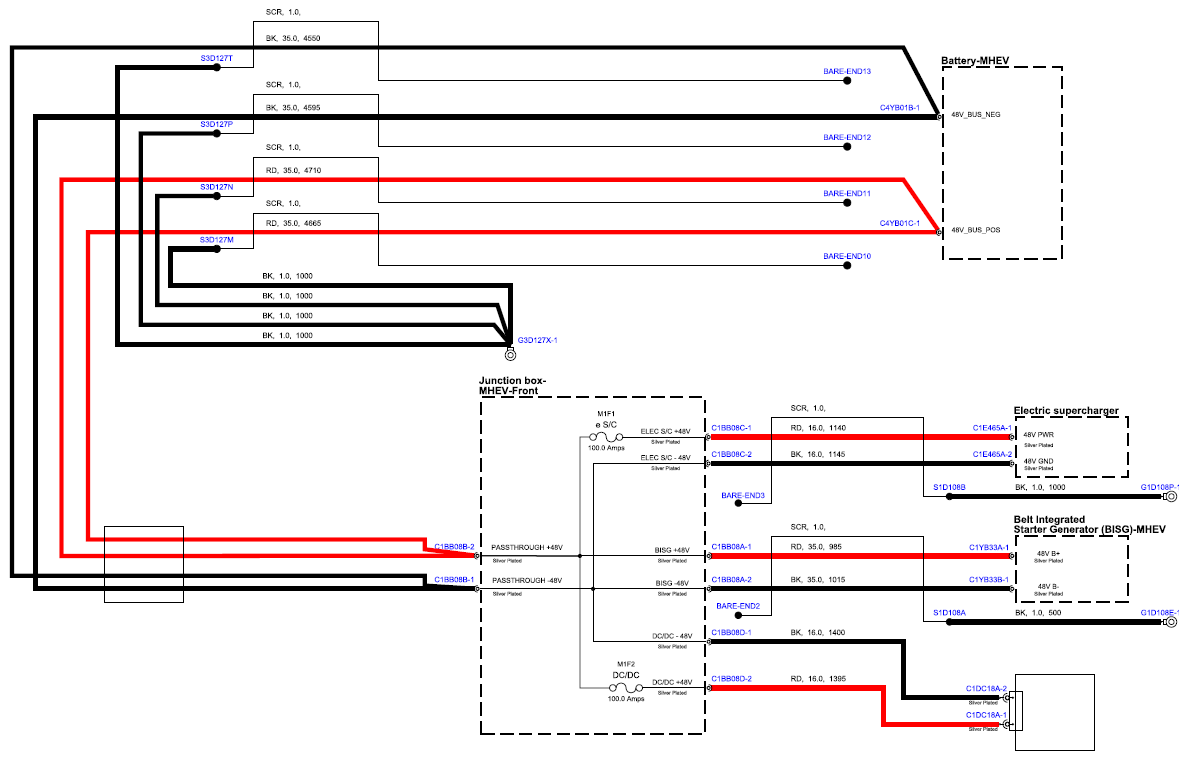

Fig 1: Battery Junction Box Circuit Diagram
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
