Rear junction box

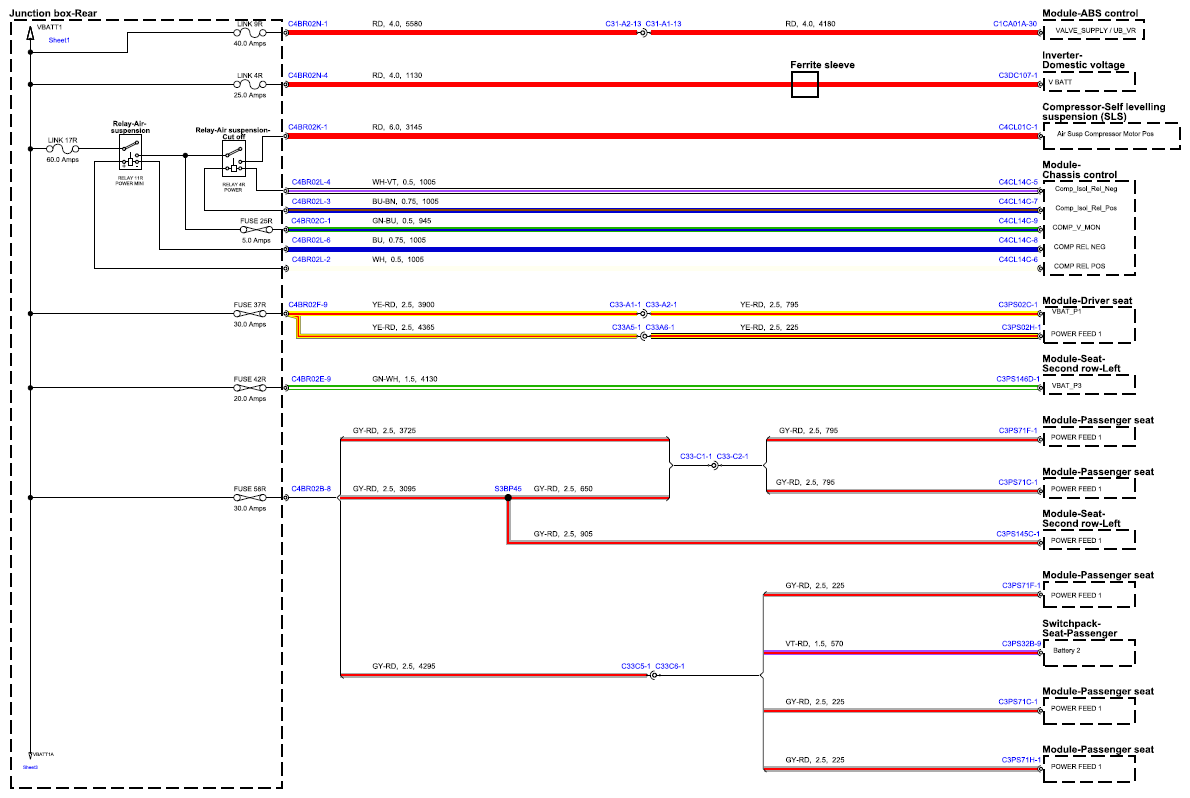

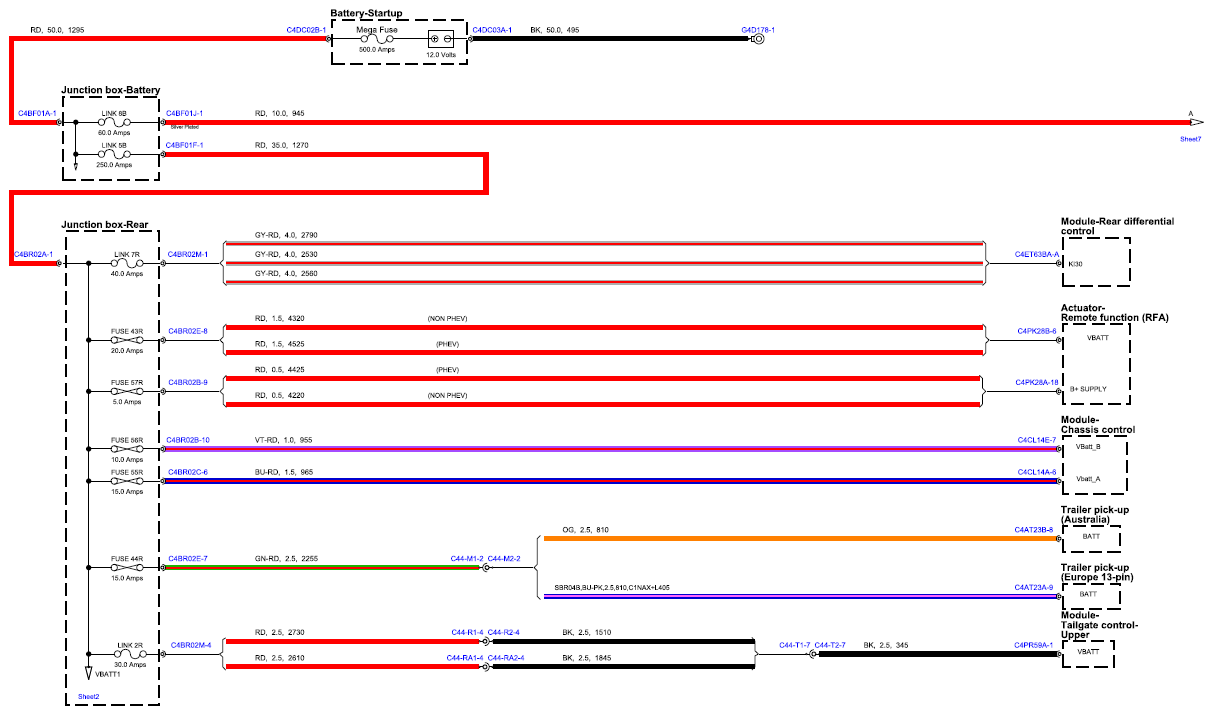

Fig 1: Rear Junction Box Circuit Diagram (Sheet 1)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

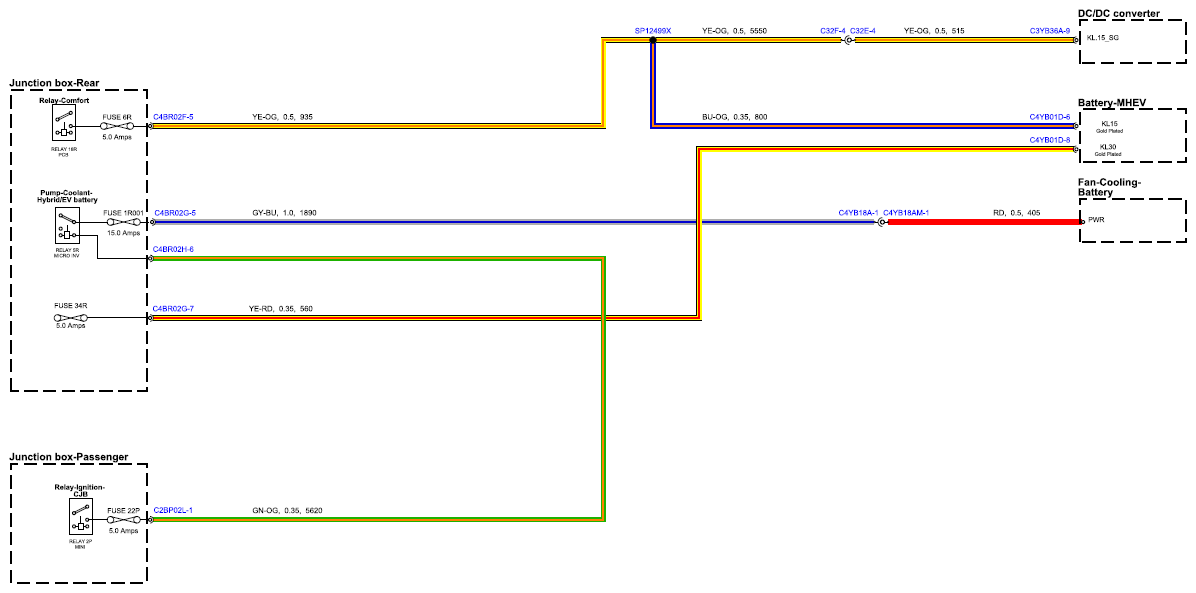

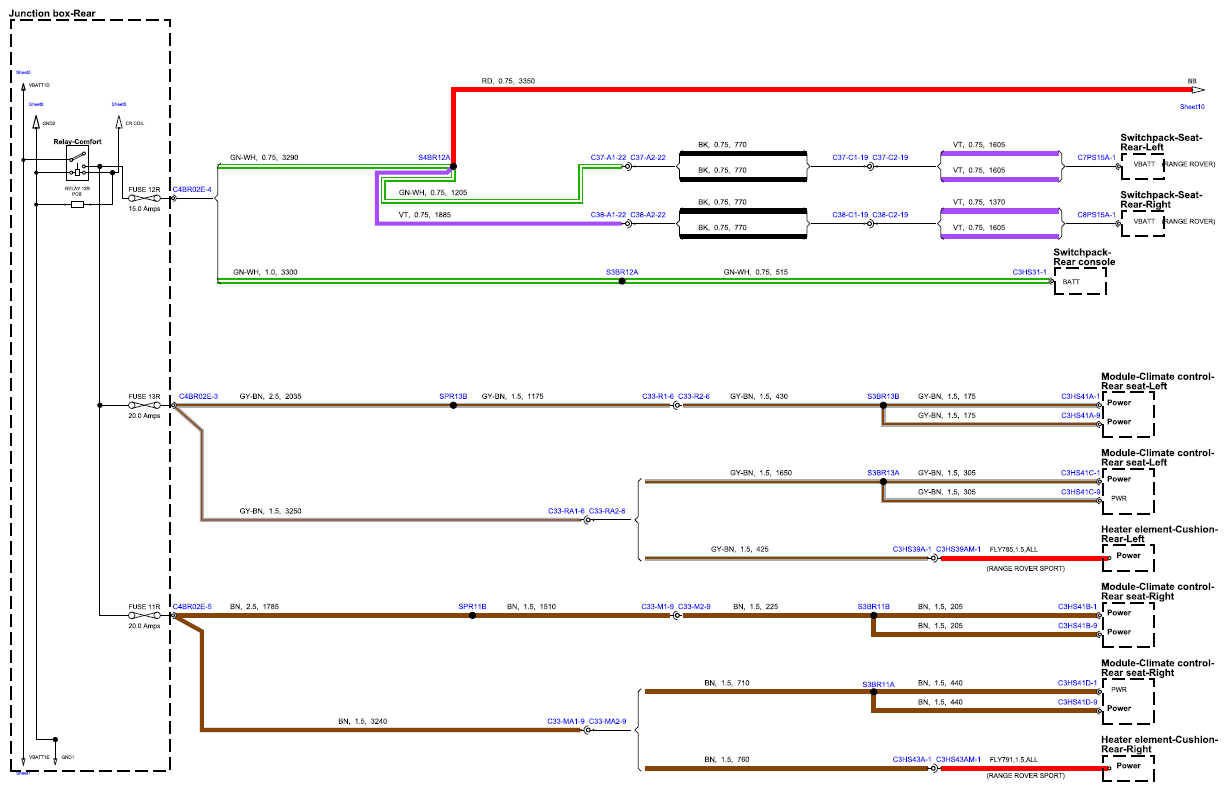

Fig 2: Rear Junction Box Circuit Diagram (Sheet 2)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

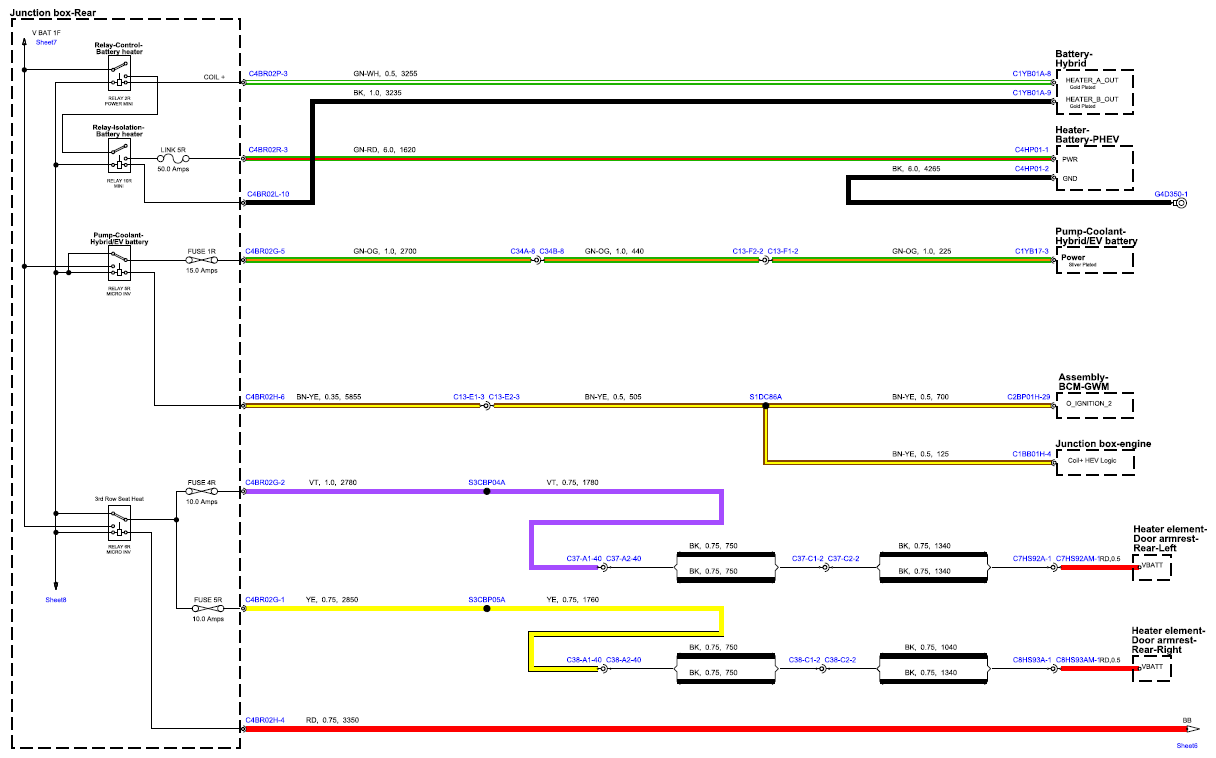

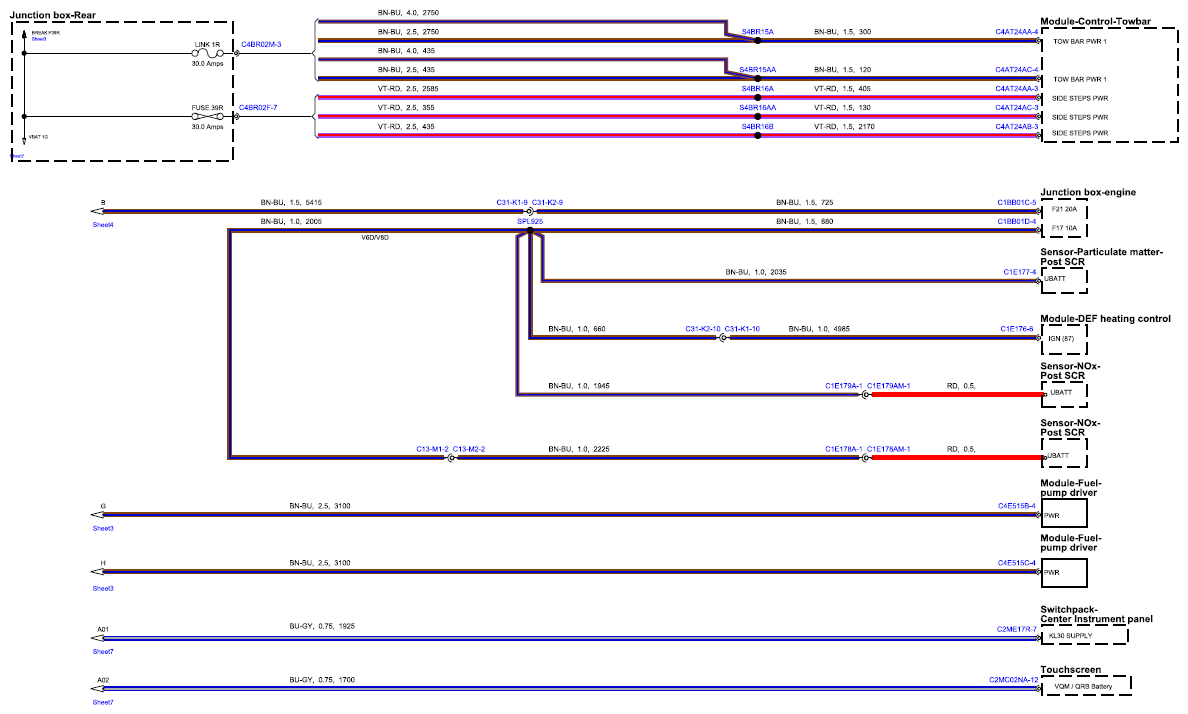

Fig 3: Rear Junction Box Circuit Diagram (Sheet 3)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

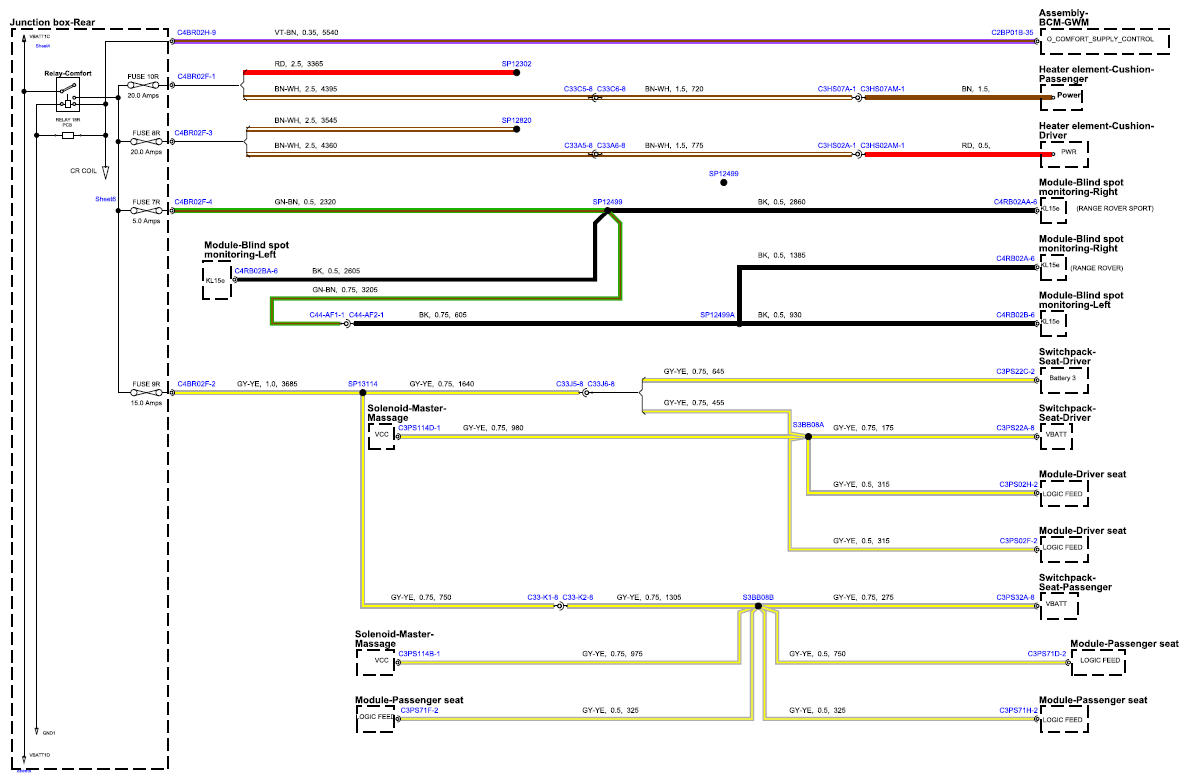

Fig 4: Rear Junction Box Circuit Diagram (Sheet 4)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

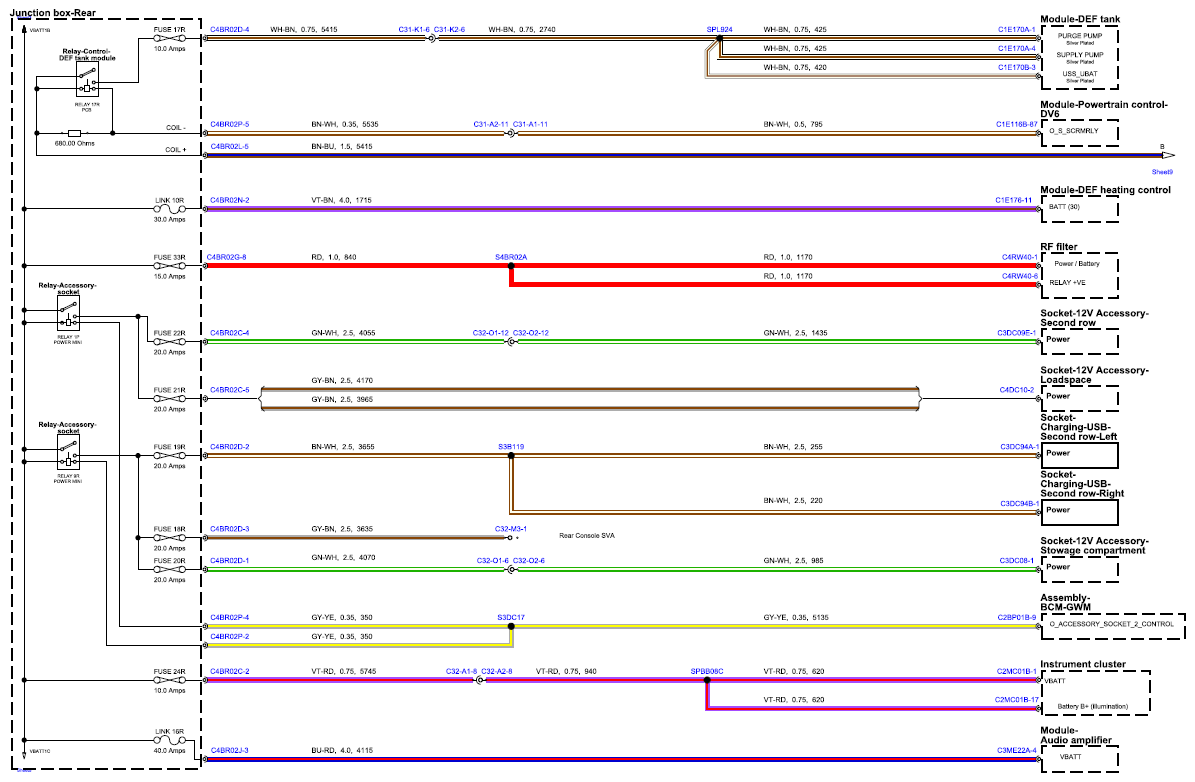

Fig 5: Rear Junction Box Circuit Diagram (Sheet 5)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

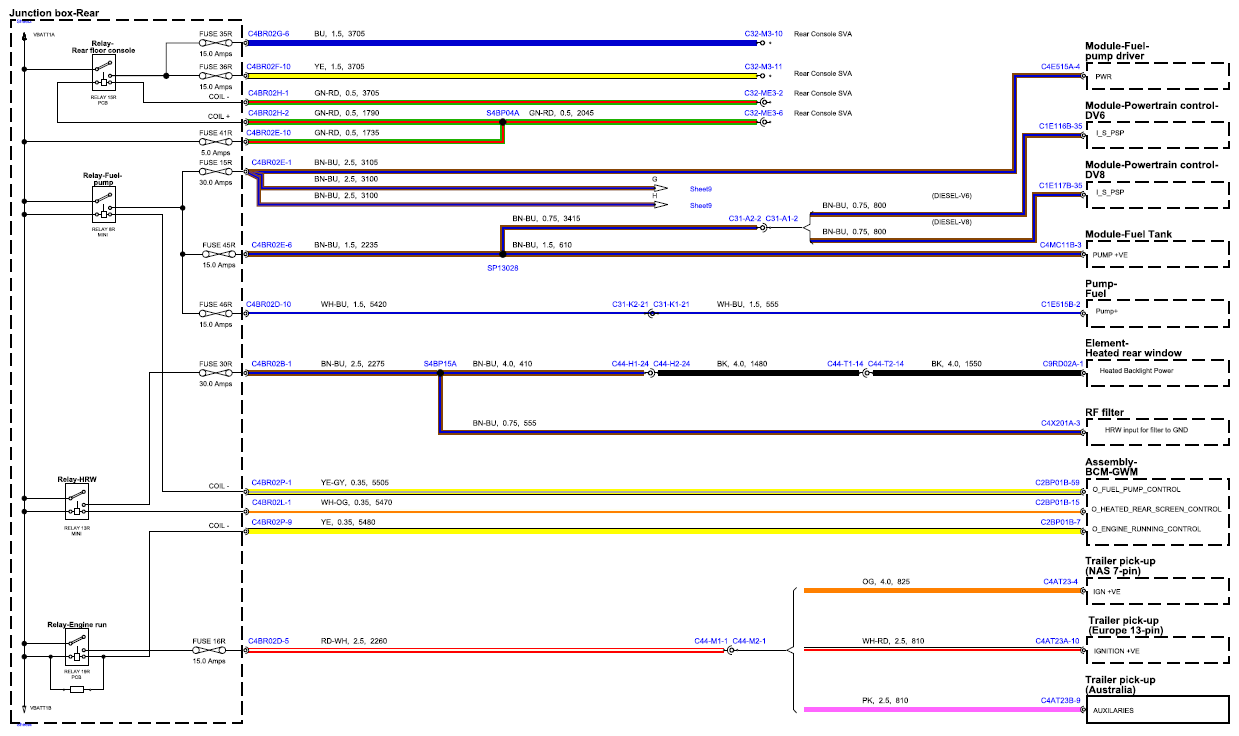

Fig 6: Rear Junction Box Circuit Diagram (Sheet 6)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

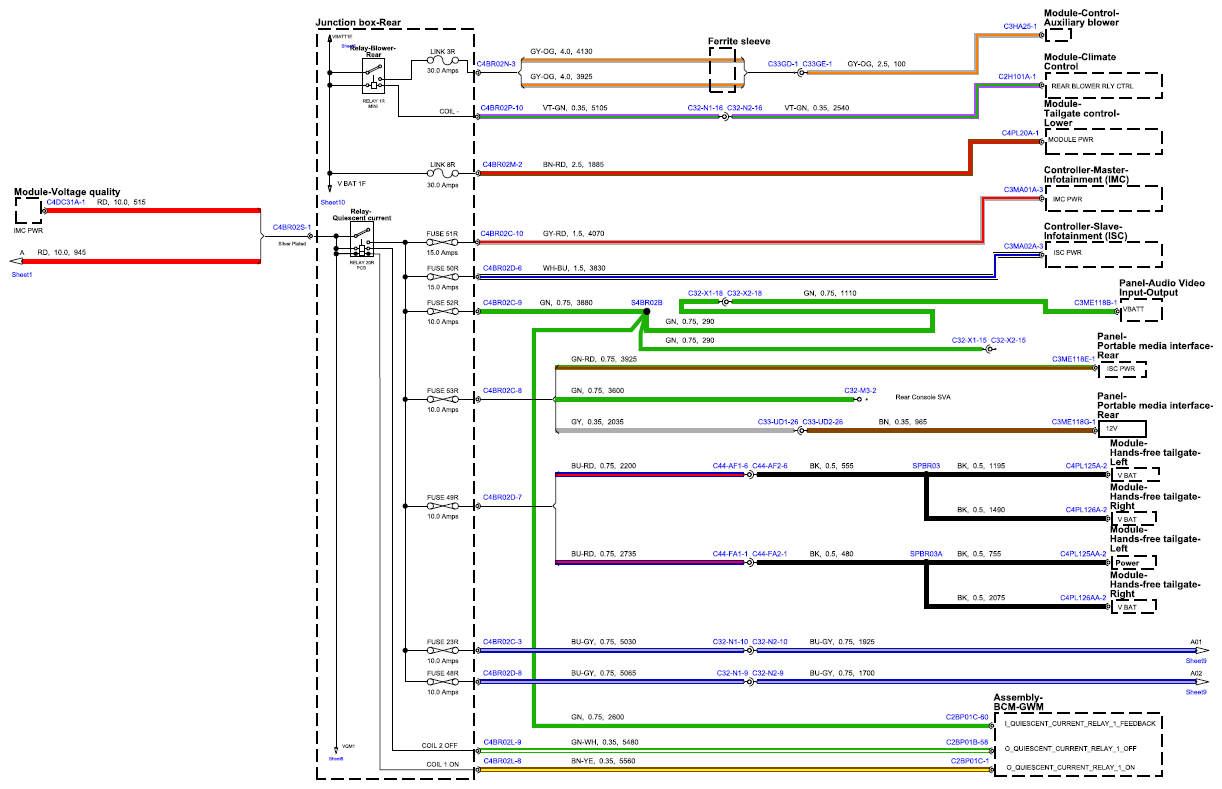

Fig 7: Rear Junction Box Circuit Diagram (Sheet 7)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

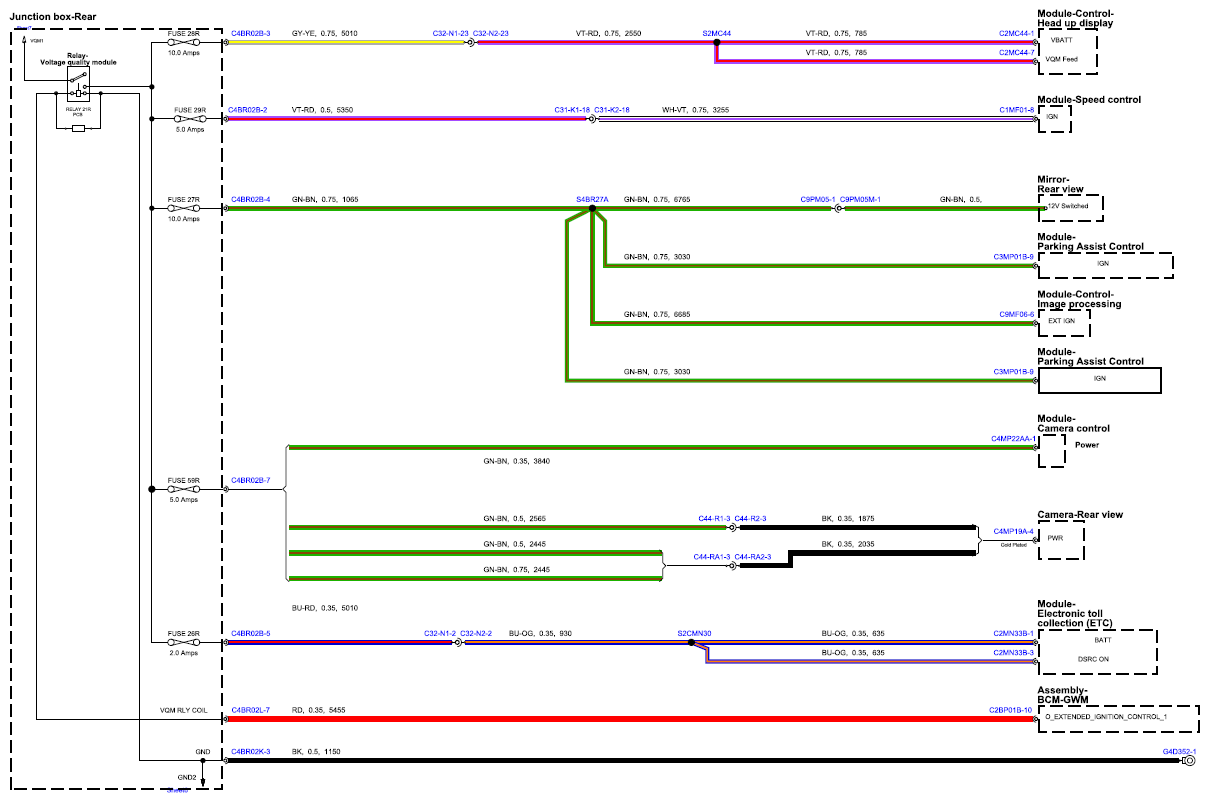

Fig 8: Rear Junction Box Circuit Diagram (Sheet 8)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 9: Rear Junction Box Circuit Diagram (Sheet 9)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 10: Rear Junction Box Circuit Diagram (Sheet 10)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fig 11: Rear Junction Box Circuit Diagram (Sheet 11)

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
