Power supply distribution box - DV8 (Cold climate)

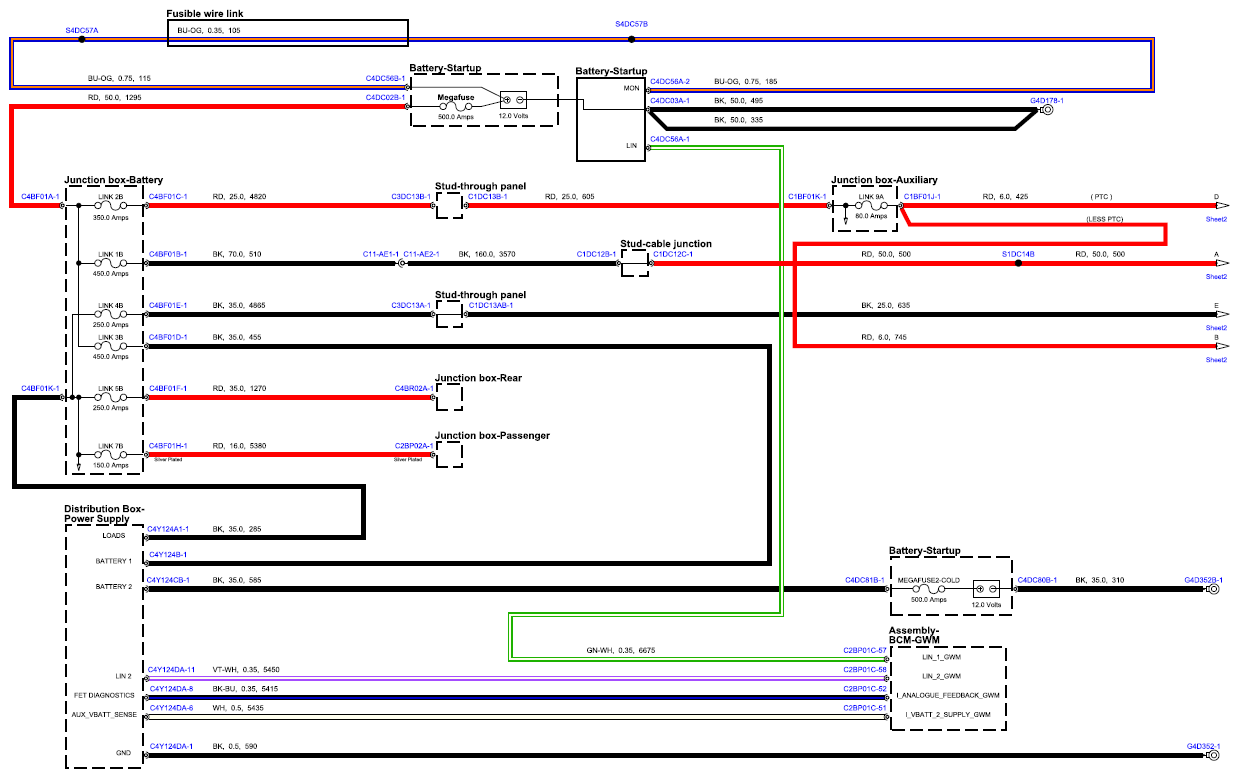

Fig 1: Power Supply Distribution Box - DV8 (Cold Climate) Circuit Diagram (Sheet 1)
G15554356Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Fig 2: Power Supply Distribution Box - DV8 (Cold Climate) Circuit Diagram (Sheet 2)
G15554357Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
