OEM Wiring Diagrams -- Range Rover Sport L494
>>
414-01 Battery, Mounting And Cables
>>
Hybrid Electric Vehicle - Diesel
Hybrid Electric Vehicle - Diesel

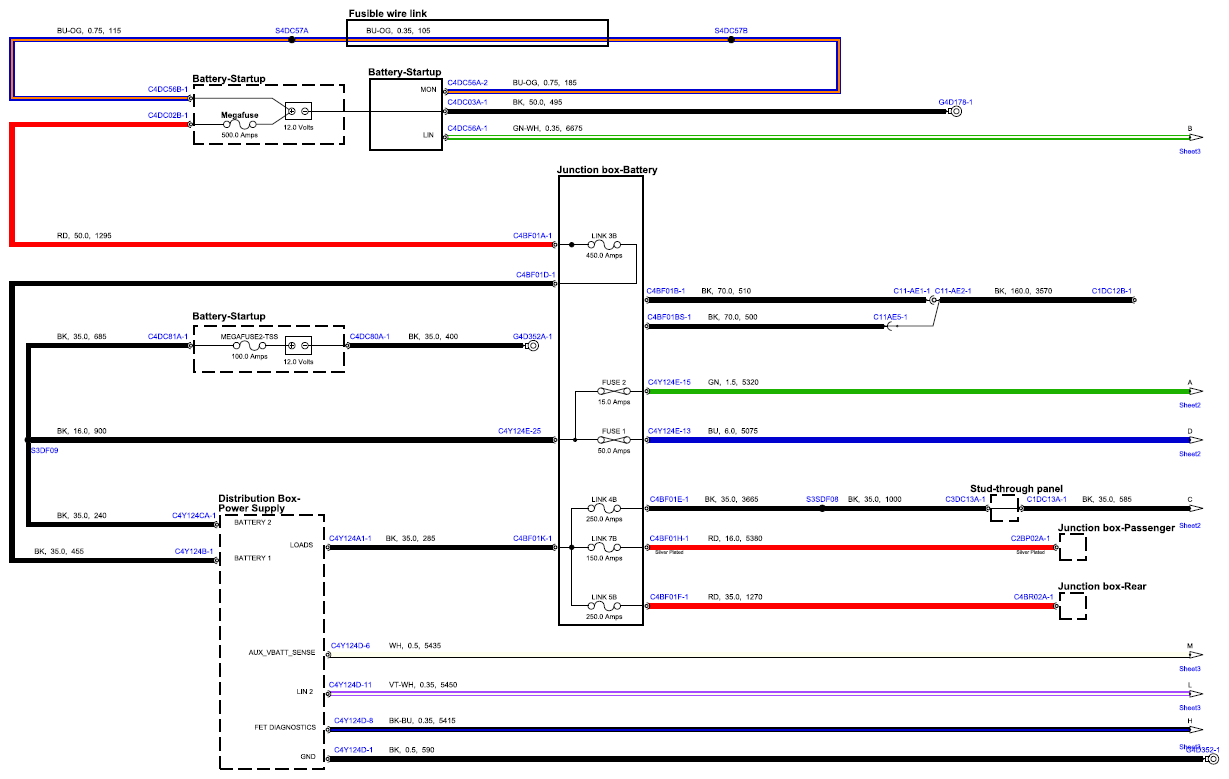

Fig 1: Hybrid Electric Vehicle - Diesel Circuit Diagram (Sheet 1)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

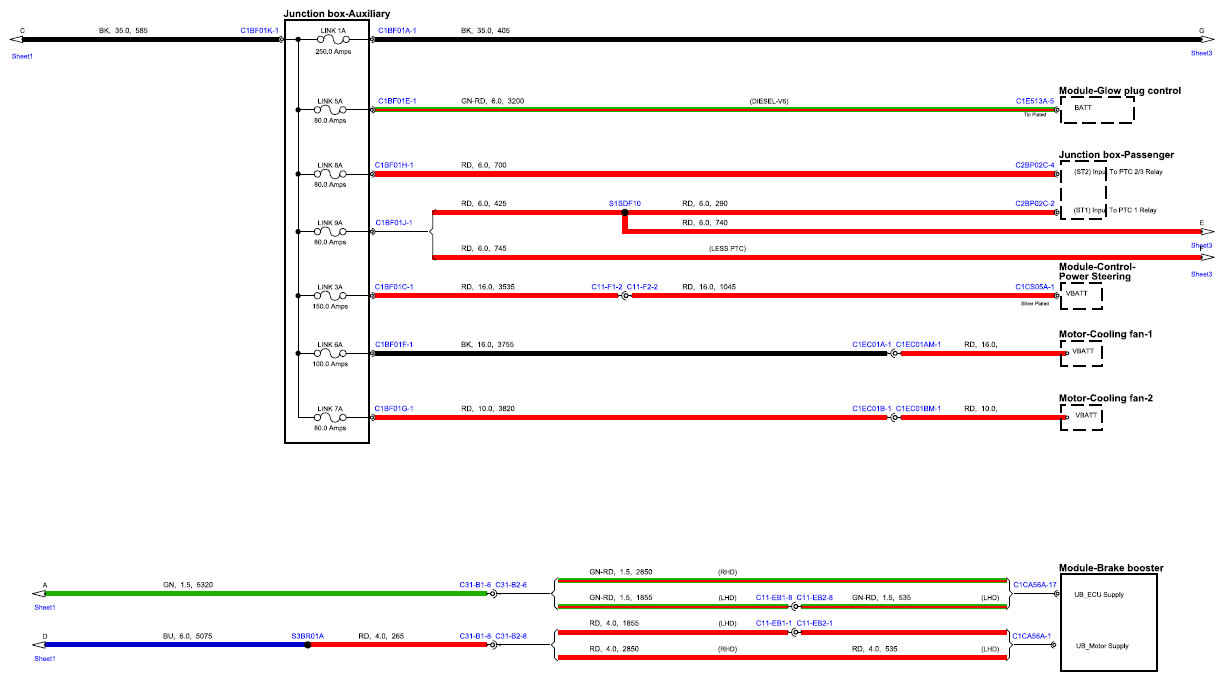

Fig 2: Hybrid Electric Vehicle - Diesel Circuit Diagram (Sheet 2)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

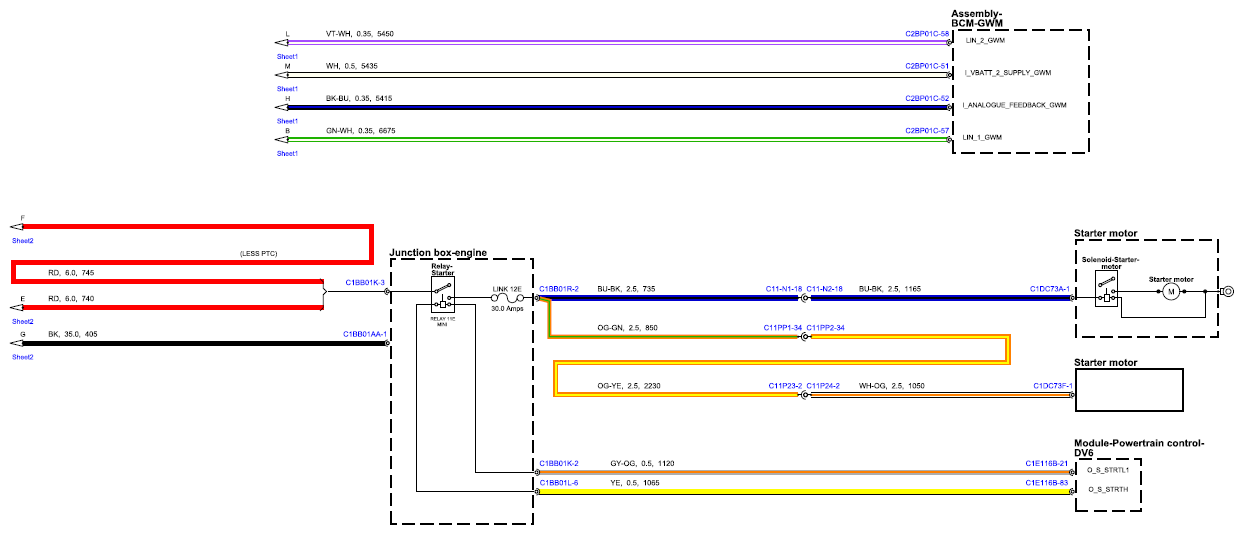

Fig 3: Hybrid Electric Vehicle - Diesel Circuit Diagram (Sheet 3)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
